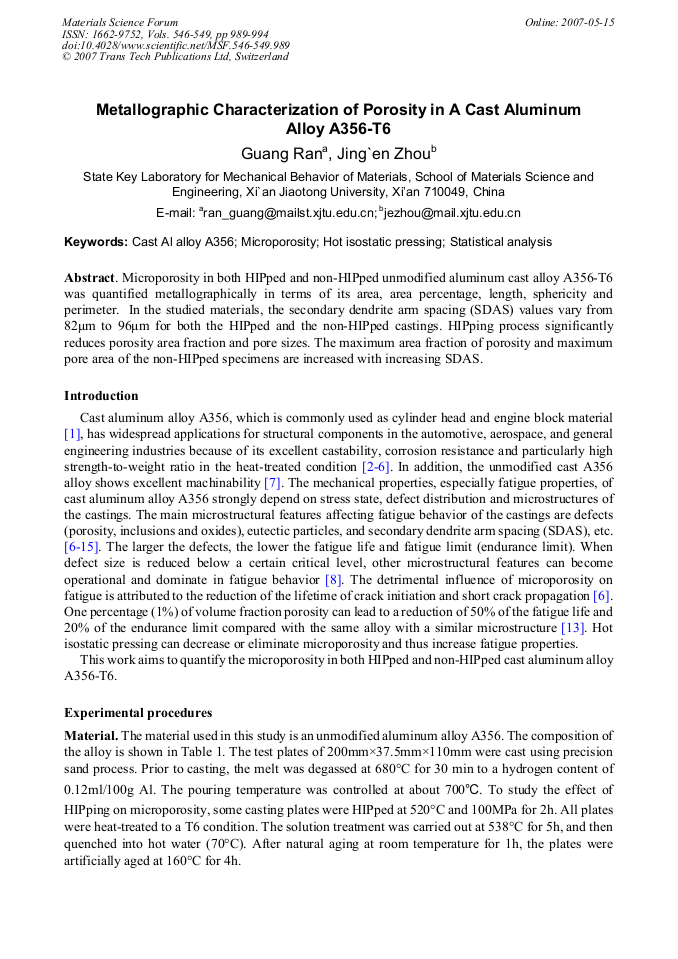

Metallographic Characterization of Porosity in A Cast Aluminum Alloy A356-T6


Article Preview

Microporosity in both HIPped and non-HIPped unmodified aluminum cast alloy A356-T6 was quantified metallographically in terms of its area, area percentage, length, sphericity and perimeter. In the studied materials, the secondary dendrite arm spacing (SDAS) values vary from 82μm to 96μm for both the HIPped and the non-HIPped castings. HIPping process significantly reduces porosity area fraction and pore sizes. The maximum area fraction of porosity and maximum pore area of the non-HIPped specimens are increased with increasing SDAS.



Materials Science Forum (Volumes 546-549)

Edited by:

Yafang Han et al.




G. Ran and J. E. Zhou, "Metallographic Characterization of Porosity in A Cast Aluminum Alloy A356-T6", Materials Science Forum, Vols. 546-549, pp. 989-994, 2007

Online since:

May 2007




[1] M.J. Caton, et al, Met. Mater. Trans. A., 30(1999), 3055-3068.

[2] Zhao Hong, Automotive Technology and Materials, 1(1997), 19-24, in Chinese.

[3] A. Jambor, M. Beyer, Materials and Design, 18(1997), 203-209.

[4] E. Seniw. Miller, G. Conley. James, E. Fine. Morris, Mat. Sci. Engng. A, 208(2000), 37-49.

[5] Q. G. Wang, Met. Mater. Trans. A., 35(2004), 2707-2718.

[6] H. Mayer, M Papakyriacou, B. Zettl, S. E. Stanzl-Tschegg, Int J Fatigue., 25 (2003), 245-256.


[7] S. Chan. Kwai, Jones. Peggy, Q.G. Wang, Mat. Sci. Engng. A, 341(2003), 18-34.

[8] Diana A. Lados, Diran Aplian. Mat. Sci. Engng. A, 385 (2004), 200-211.

[9] Q.G. Wang, D. Apelian, D.A. Lados, J. Light Met., 1 (1) (2001), 73-84.

[10] B. Zhang, P.K. Sung, D.R. Poirier, W. Chen, AFS Trans., 108(2000), 383-389.

[11] M.J. Couper, A.E. Neeson, J.R. Griffiths. Fatigue Fract. Eng. Mater. Struct., 13(3) (1990), 213-227.

[12] Diana A. Lados. PhD dissertation, Worcester Polytechnic Institute, 2004, USA.

[13] J.Y. Buffière, S. Savelli, P.H. Jouneau, Mat. Sci. Engng. A, 316 (2001), 115-126.

[14] Min Ha Lee, Jae Joong Kim, Kyung Hoon Kim, et al. Mat. Sci. Engng. A, 340 (2003), 123-129.

[15] W. Chen, B. Zhang, T. Wu, D. Poirier, P. Sung, Q.T. Fang, in:S.K. Das(Ed. ), Automotive alloy II, TMS, Warrendale, PA, 1998: 99-113.

[16] Q.G. Wang, Met. Mater. Trans. A., 34(2003), 2887-2899.

[17] Q.G. Wang, C.H. Cáceres, J.R. Griffiths. Met. Mater. Trans. A., 34(2003), 2901-2912.

[18] C.H. Cáceres I.L. Svensson, J,A. Taylor. Res., 15(2003)531-543.

[19] S.L. Backerud, G. Chai and J. Tamminen, Oslo, Norway, (1990).
