An Analysis of Deformation Microstructure and Subsequent Recrystallisation in Hot Deformed Aluminium Alloy AA5052 Using Forward and Reverse Torsion


Article Preview

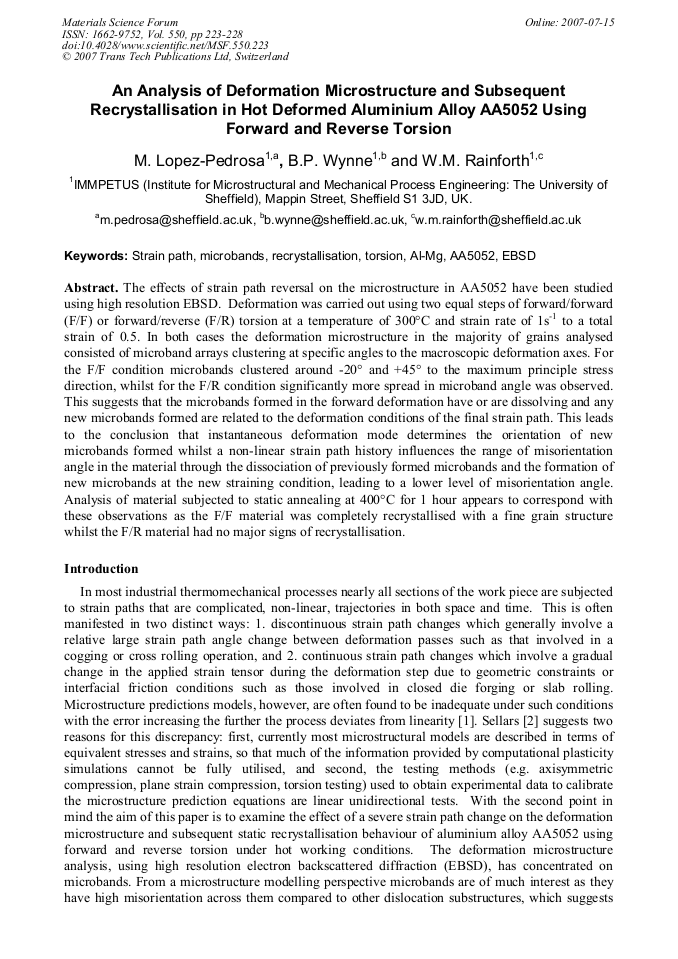

The effects of strain path reversal on the microstructure in AA5052 have been studied using high resolution EBSD. Deformation was carried out using two equal steps of forward/forward (F/F) or forward/reverse (F/R) torsion at a temperature of 300°C and strain rate of 1s-1 to a total strain of 0.5. In both cases the deformation microstructure in the majority of grains analysed consisted of microband arrays clustering at specific angles to the macroscopic deformation axes. For the F/F condition microbands clustered around -20° and +45° to the maximum principle stress direction, whilst for the F/R condition significantly more spread in microband angle was observed. This suggests that the microbands formed in the forward deformation have or are dissolving and any new microbands formed are related to the deformation conditions of the final strain path. This leads to the conclusion that instantaneous deformation mode determines the orientation of new microbands formed whilst a non-linear strain path history influences the range of misorientation angle in the material through the dissociation of previously formed microbands and the formation of new microbands at the new straining condition, leading to a lower level of misorientation angle. Analysis of material subjected to static annealing at 400°C for 1 hour appears to correspond with these observations as the F/F material was completely recrystallised with a fine grain structure whilst the F/R material had no major signs of recrystallisation.



Edited by:

P. B. Prangnell and P. S. Bate




M. Lopez-Pedrosa et al., "An Analysis of Deformation Microstructure and Subsequent Recrystallisation in Hot Deformed Aluminium Alloy AA5052 Using Forward and Reverse Torsion", Materials Science Forum, Vol. 550, pp. 223-228, 2007

Online since:

July 2007




[1] A.J. McLaren. N. LeMat. J.H. Beynon & C.M. Sellars: Iron- & Steelmaking Vol. 22 (1995), p.71.

[2] C.M. Sellars: in Thermomechanical Processing in Theory, Modelling and Practice [TMP]2, (eds. B. Hutchinson et al. ), 35-51, 1997, The Swedish Society for Materials Technology.

[3] Q. Zhu, C.M. Sellars. In:. Proc Third Internat. Conf on Recrystallisation and Related Phenomena (ReX'96), (ed. Terry R McNelley), Monterey, California, October 1996, p.81.

[4] G.H. Akbari, C.M. Sellars, J.A. Whiteman: Acta Mater. Vol. 45 (1997), p.5047.

[5] P.J. Hurley, F.J. Humphreys: Acta Mater. Vol. 51 (2003), p.1087.

[6] P.J. Hurley, P.S. Bate, F.J. Humphreys: Acta Mater. Vol. 51 (2003), p.4737.

[7] F.J. Humphreys, P.S. Bate, P.J. Hurley: J. Micros Vol. 201 (2001), p.50.

[8] M. Lopez-Pedrosa, B.P. Wynne, W.M. Rainforth : J. Micros Vol. 222 (2006), p.97.

[9] D.A. Hughes, N. Hansen: Mater Sci. Tech. Vol. 7 (1991), p.544.

[10] Q. Zhu Q, C.M. Sellars: Scripta. Mater. Vol 45 (2001), p.41.

Fetching data from Crossref.
This may take some time to load.
