Evolution of the Grain Boundary Network as a Consequence of Deformation and Annealing

Abstract:

Article Preview

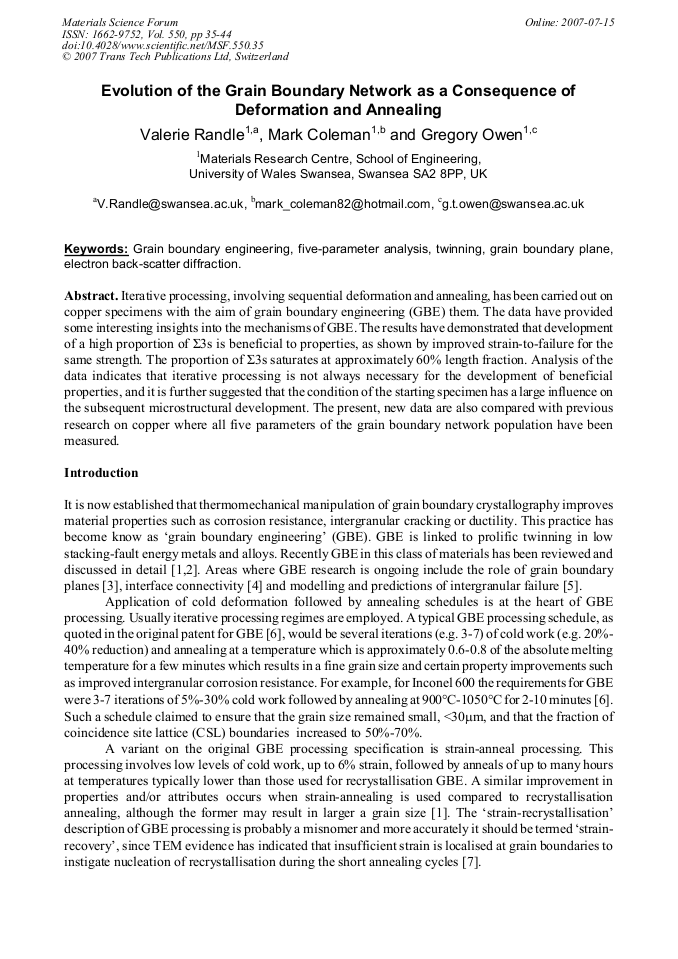

Iterative processing, involving sequential deformation and annealing, has been carried out on copper specimens with the aim of grain boundary engineering (GBE) them. The data have provided some interesting insights into the mechanisms of GBE. The results have demonstrated that development of a high proportion of Σ3s is beneficial to properties, as shown by improved strain-to-failure for the same strength. The proportion of Σ3s saturates at approximately 60% length fraction. Analysis of the data indicates that iterative processing is not always necessary for the development of beneficial properties, and it is further suggested that the condition of the starting specimen has a large influence on the subsequent microstructural development. The present, new data are also compared with previous research on copper where all five parameters of the grain boundary network population have been measured.

Info:

Periodical:

Edited by:

P. B. Prangnell and P. S. Bate

Pages:

35-44

Citation:

V. Randle et al., "Evolution of the Grain Boundary Network as a Consequence of Deformation and Annealing", Materials Science Forum, Vol. 550, pp. 35-44, 2007

Online since:

July 2007

Export:

Price:

$38.00

[1] V. Randle: Acta Mater. Vol. 34 (2004), p.4067.

[2] Viewpoint set no. 40, Scripta Mater Grain boundary engineering, Edited by M. Kumar and C.A. Schuh, Vol. 54 (2006) p.961.

DOI: https://doi.org/10.1016/j.scriptamat.2005.11.059

[3] D.M. Saylor, B.S. El-Dasher, A.D. Rollett and G.S. Rohrer: Acta Mater. Vol. 52 (2004), p.3649.

[4] C.A. Schuh, M. Kumar and W.E. King: Acta Mater. Vol. 51 (2003), p.687.

[5] E.M. Lehockey, A.M. Brennenstuhl and I. Thompson: Corr. Sci. Vol. 46 (2004), p.2383.

[6] P. Palumbo: International Patent Classification C21D 8/00 8/10 C22F 1/10 1/08, no. WO 94/14986; (1994).

[7] M. Kumar, A.J. Schwartz, and W.E. King: Acta Mater. Vol. 50 (2002), p.2599.

[8] V. Randle and H. Davies: Met. Mater. Trans. Vol. 33A (2002), p.1853.

[9] D.M. Saylor, B.L. Adams, B.S. El-Dasher and G.S. Rohrer: Metall Mater Trans Vol. 34A (2003) p.1.

[10] C. Kim, Y. Hu, G. Rohrer and V. Randle: Scripta Mater. Vol. 52 (2005), p.633.

[11] V. Randle, G. Rohrer, C. Kim and Y. Hu: Acta Mater. (2006), in press.

[12] V. Randle: Microtexture Determination and its Applications, Second edition, Institute of Materials, London (2003).

[13] D.G. Brandon: Acta Metall. Vol. 14 (1966) p.1479.

[14] V. Randle: Interface Science, Vol. 10 (2002), p.271.

[15] V. Randle: Acta Mater. Vol. 47 (1999), p.4187.

[16] V. Randle and G. T. Owen : Acta Mater. Vol. 54 (2006) p.1777.

[17] M. Shimada, H. Kokawa, Z.J. Wang, Y.S. Sato and I. Karibe: Acta Mater. Vol. 50 (2002) p.2331.

[18] L. Tan, K. Sridharan and T.R. Allen: J. Nucl. Mat. Vol. 348 (2006), p.263.

[19] A.J. Schwartz, W.E. King and M. Kumar: Scripta Mater. Vol. 54 (2006) p.963.

Fetching data from Crossref.
This may take some time to load.
