Fabrication of Nanocrystalline Superplastic ZrO2 Ceramics

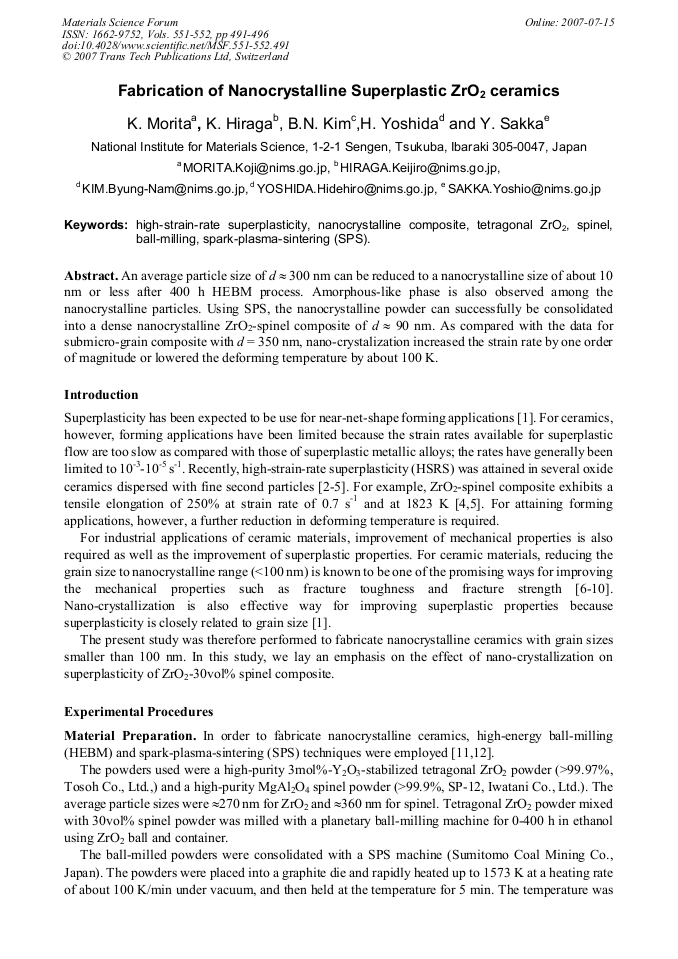

Article Preview

An average particle size of d ≈ 300 nm can be reduced to a nanocrystalline size of about 10 nm or less after 400 h HEBM process. Amorphous-like phase is also observed among the nanocrystalline particles. Using SPS, the nanocrystalline powder can successfully be consolidated into a dense nanocrystalline ZrO2-spinel composite of d ≈ 90 nm. As compared with the data for submicro-grain composite with d = 350 nm, nano-crystalization increased the strain rate by one order of magnitude or lowered the deforming temperature by about 100 K.



Materials Science Forum (Volumes 551-552)

Edited by:

K.F. Zhang




K. Morita et al., "Fabrication of Nanocrystalline Superplastic ZrO2 Ceramics", Materials Science Forum, Vols. 551-552, pp. 491-496, 2007

Online since:

July 2007




[1] T. G. Nieh, J. Wadsworth and O. D. Sherby: Superplasticity in Metals and Ceramics (Cambridge University Press, 1997).

[2] B. -N. Kim, K. Hiraga, K. Morita and Y. Sakka: Nature, Vol. 413 (2001), p.288.

[3] B. -N. Kim, K. Hiraga, K. Morita, Y. Sakka and T. Yamada: Scripta Mater., Vol. 47 (2002), p.775.

[4] K. Morita, K. Hiraga and Y. Sakka: J. Am. Ceram. Soc., Vol. 85 (2002), p. (1900).

[5] K. Morita, K. Hiraga, B. -N. Kim and Y. Sakka: Mater. Trans., Vol. 45 (2004), p. (2073).

[6] K. Niihara: J. Ceram. Soc. Jpn., Vol. 99 (1991), p.974.

[7] M. J. Mayo and D. C. Hague: Nanostruct. Mater., Vol. 1 (1992), p.173.

[8] H. Kimura: Advances in Powder Metallurgy & Particulate Mater-1999 (PM2TEC '99, Vancouver), Vol. 12 (1999), p.55.

[9] G. D. Zhan, J. Kuntz, J. Wan and A. M. Mukherjee: Nature Mater., Vol. 2 (2003), p.38.

[10] G. D. Zhan, J. Kuntz, J. Wan, J. Garay and A. M. Mukherjee: J. Am. Soc., Vol. 86 (2003), p.200.

[11] K. Morita, K. Hiraga, B. -N. Kim, H. Yoshida and Y. Sakka: Scripta Mater., Vol. 53 (2005), p.1007.

[12] K. Morita, B. -N. Kim, K. Hiraga and Y. Sakka, Trans. Mater. Res. Soc. Jpn., Vol. 30 (2005), p.1117.

[13] J. C. Wurst and J. A. Nelson: J. Am. Ceram. Soc., Vol. 55 (1972), p.109.

[14] K. Morita, B. -N. Kim, H. Yoshida and K. Hiraga: to be submitted.

[15] F. Gutiérrez-Mora, A. Domínguez-Rodoríguez and M. Jiménez-Melendo: J. Euro. Ceram. Soc., Vol. 22 (2002), p.2615.

[16] M. Jiménez-Melendo, A. Domínguez-Rodríguez and A. Bravo-León: J. Am. Ceram. Soc., Vol. 81 (1998), p.2761.

[17] K. Morita and K. Hiraga: Acta Mater., Vol. 50 (2002), p.1075.

[18] W. J. Kim, J. Wadsworth and O. D. Sherby: Acta Mater., Vol. 39 (1991), p.199.

Fetching data from Crossref.
This may take some time to load.
