Superplastic Extrusion of Ultra Fine-Grained 3Y-TZP/Al2O3 Ceramic for Turbine Disk

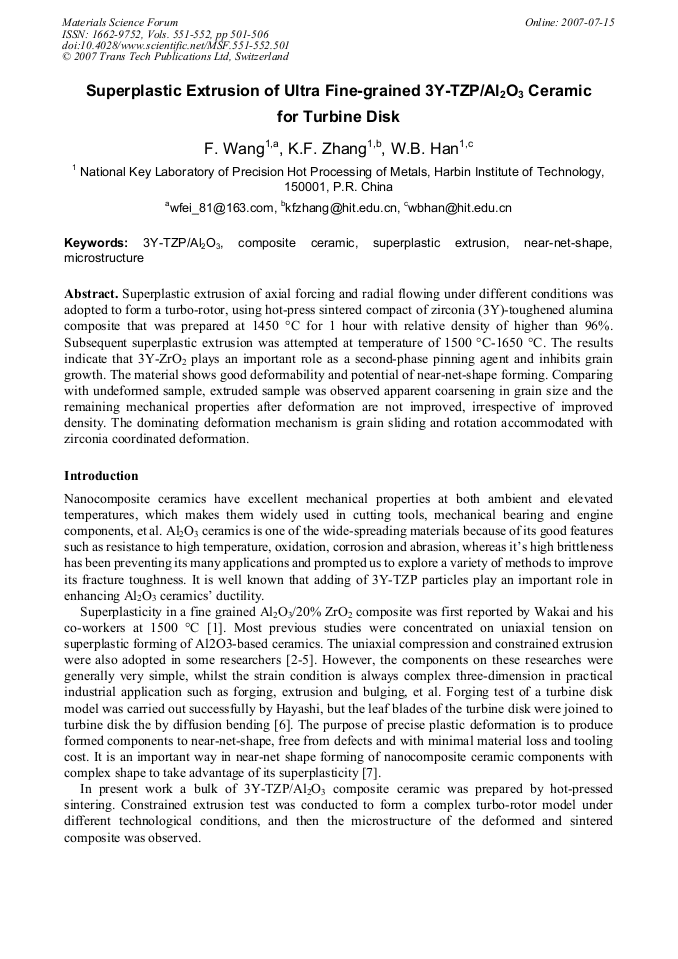

Article Preview

Superplastic extrusion of axial forcing and radial flowing under different conditions was adopted to form a turbo-rotor, using hot-press sintered compact of zirconia (3Y)-toughened alumina composite that was prepared at 1450 °C for 1 hour with relative density of higher than 96%. Subsequent superplastic extrusion was attempted at temperature of 1500 °C-1650 °C. The results indicate that 3Y-ZrO2 plays an important role as a second-phase pinning agent and inhibits grain growth. The material shows good deformability and potential of near-net-shape forming. Comparing with undeformed sample, extruded sample was observed apparent coarsening in grain size and the remaining mechanical properties after deformation are not improved, irrespective of improved density. The dominating deformation mechanism is grain sliding and rotation accommodated with zirconia coordinated deformation.



Materials Science Forum (Volumes 551-552)

Edited by:

K.F. Zhang




F. Wang et al., "Superplastic Extrusion of Ultra Fine-Grained 3Y-TZP/Al2O3 Ceramic for Turbine Disk", Materials Science Forum, Vols. 551-552, pp. 501-506, 2007

Online since:

July 2007




[1] F. Wakai, S. Sakaguchi, and Y. Matsuno: Superplaticity of yttria-atabilized tetragonal ZrO2 polycrystals. Adv. Ceram. Mat., Vol. 1 (1986), pp.259-263.

[2] A.A. Sharif, M.L. Mecartney: Superplasticity in cubic yttria-srabilized zirconia with intergranular silica. Acta Materialia, Vol. 51 (2003), pp.1633-1639.


[3] J. Wittenauer: Superplastic alumina-20%zirconia. Materials Science Forum, Vol. 243-245 (1997), pp.417-424.


[4] Bruce J. Kellett, Claude Carry, and Alain Mocellin: High-temperature extrusion behavior of a superplastic zirconia-based ceramic. J. Am. Ceram. Soc., Vol. 73 (1990), p.1922-(1927).


[5] Guoqing Chen, Kaifeng Zhang: Superplastic extrusion of Al2O3-YTZ nanocomposite and its deformation mechanism. Materials Science Forum, Vol. 475-479 (2005), pp.2973-2976.


[6] S. Hayashi, K. Watanabe. M. Imita and J. Goto: Superplastic forming of ZrO2/Al2O3 composite. Key Engineering Materiala, Vol. 159-160 (1999), pp.181-186.

[7] Kaifeng Zhang, Guoqing Chen, Guofeng Wang: Superplasticity in ceramics. Journal of Inorganic Materials, Vol. 18 (2003), pp.705-715. (in Chinese).

[8] J. M. Calderon-Moreno, M. Schehl and M. Popa: Superplastic behavior of zirconia-reinforced alumina nanocomposites from powder alcoxide mixures. Acta Materalia, Vol. 50 (2002), pp.3973-3983.
