Superplasticity and Microstructure Evolution of Electrodeposited Nanocrystalline Nickel

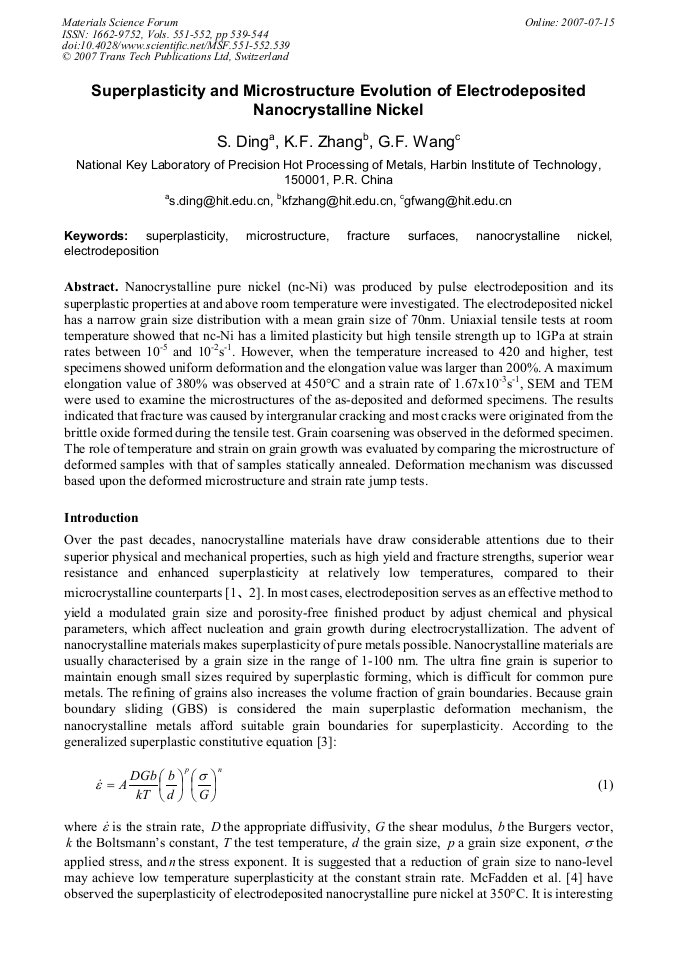

Article Preview

Nanocrystalline pure nickel (nc-Ni) was produced by pulse electrodeposition and its superplastic properties at and above room temperature were investigated. The electrodeposited nickel has a narrow grain size distribution with a mean grain size of 70nm. Uniaxial tensile tests at room temperature showed that nc-Ni has a limited plasticity but high tensile strength up to 1GPa at strain rates between 10-5 and 10-2s-1. However, when the temperature increased to 420 and higher, test specimens showed uniform deformation and the elongation value was larger than 200%. A maximum elongation value of 380% was observed at 450°C and a strain rate of 1.67x10-3s-1, SEM and TEM were used to examine the microstructures of the as-deposited and deformed specimens. The results indicated that fracture was caused by intergranular cracking and most cracks were originated from the brittle oxide formed during the tensile test. Grain coarsening was observed in the deformed specimen. The role of temperature and strain on grain growth was evaluated by comparing the microstructure of deformed samples with that of samples statically annealed. Deformation mechanism was discussed based upon the deformed microstructure and strain rate jump tests.



Materials Science Forum (Volumes 551-552)

Edited by:

K.F. Zhang




S. Ding et al., "Superplasticity and Microstructure Evolution of Electrodeposited Nanocrystalline Nickel", Materials Science Forum, Vols. 551-552, pp. 539-544, 2007

Online since:

July 2007




[1] I. Brooks and U. Erb: Scripta Materialia, Vol. 44 (2001), pp.853-858.

[2] O.A. Kaibyshev: Journal of Materials Processing Technology, Vol. 117 (2001), P. 300-306.

[3] S.X. McFadden, R.Z. Valiev and A.K. Mukherjee: Materials Science and Engineering A, Vol. 319-321 (2001) pp.849-853.

[4] R.S. Mishra, R.Z. Valiev and S.X. McFadden, et al: Materials Science and Engineering: A, Vol. 252 (1998), pp.174-178.

[5] Torre F. Dalla, Swygenhoven H. Van and M. Victoria: Acta Materialia, Vol. 50 (2002), pp.3957-3970.


[6] S.X. McFadden and A.K. Mukherjee. Materials Science and Engineering A, Vol. 395(2005), pp.265-268.

[7] Torre F. Dalla, Swygenhoven H. Van and R. SchÃÃublin, et a�� Scripta Materialia, Vol. 53 (2005), pp.23-27.
