Application of High-Strain-Rate Superplastic Zn-Al Alloy to Seismic Dampers and its Optimised Shape Design

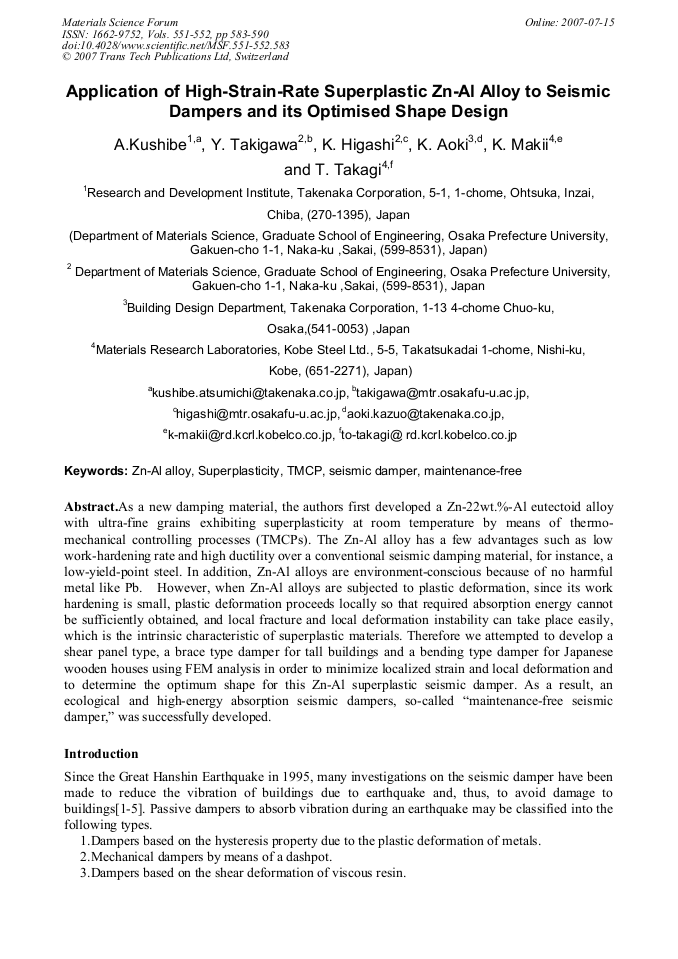

Article Preview

As a new damping material, the authors first developed a Zn-22wt.%-Al eutectoid alloy with ultra-fine grains exhibiting superplasticity at room temperature by means of thermomechanical controlling processes (TMCPs). The Zn-Al alloy has a few advantages such as low work-hardening rate and high ductility over a conventional seismic damping material, for instance, a low-yield-point steel. In addition, Zn-Al alloys are environment-conscious because of no harmful metal like Pb. However, when Zn-Al alloys are subjected to plastic deformation, since its work hardening is small, plastic deformation proceeds locally so that required absorption energy cannot be sufficiently obtained, and local fracture and local deformation instability can take place easily, which is the intrinsic characteristic of superplastic materials. Therefore we attempted to develop a shear panel type, a brace type damper for tall buildings and a bending type damper for Japanese wooden houses using FEM analysis in order to minimize localized strain and local deformation and to determine the optimum shape for this Zn-Al superplastic seismic damper. As a result, an ecological and high-energy absorption seismic dampers, so-called “maintenance-free seismic damper,” was successfully developed.



Materials Science Forum (Volumes 551-552)

Edited by:

K.F. Zhang




A. Kushibe et al., "Application of High-Strain-Rate Superplastic Zn-Al Alloy to Seismic Dampers and its Optimised Shape Design", Materials Science Forum, Vols. 551-552, pp. 583-590, 2007

Online since:

July 2007




[1] Somekawa et al. : Proceedings of Architectural Institute of Japan , Vol. 3 (1999), p.871.

[2] Iwata et al.: Proceedings of Architectural Institute of Japan, Vol. 3 (1999), p.937.

[3] K. Tanaka et al.: Journal of Struct Constr. Eng. , No. 509, (1998), p.159.

[4] K. Ohi et al.: Journal of Struct Constr. Eng. , No. 538 , Dec. 2000 , p.171.

[5] Y. Nakata et al.: Symposium Proceedings of Passive Controlled Structure(2001) , p.87.

[6] Y. Motohashi et al.: Journal of Japan Institute of Light Metals, Vol. 30, No. 11 (1980), p.634.

[7] R. S. Mishra et al.: Nano-structure Mat. Vol. 9, No. 1/8 (1997), p.473.

[8] M. Furukawa et al.: Mat. Res., Vol. 11, No. 9 (1996), p.2128.

[9] G. Toress-Villasenor et al. : Mat. Sci. Forum, Vol. 243/245 (1997), p.553.

[10] H. Ueda et al.: Journal of JSME C, Vol. 68, No. 672(2002), p.2332.

[11] T. Tanaka et al.: International Journal of Mechanical Sciences 45 (2003).
