Low Temperature Superplasticity and Intragranular Misorientation in Severely Rolled Sheets of Al-4.5%Mg-0.7%Mn Based Alloys

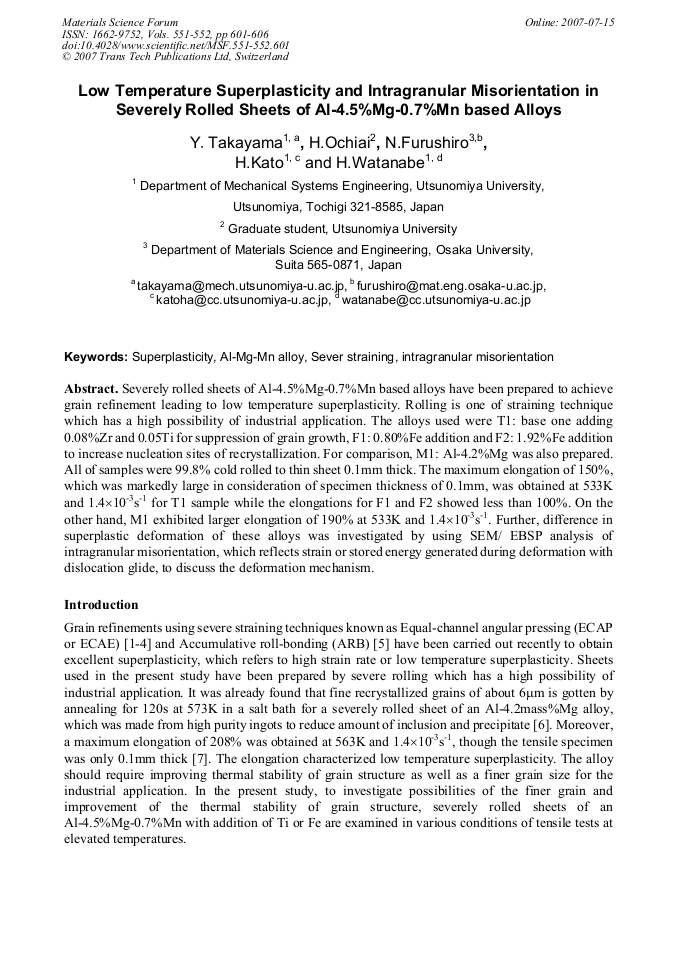

Article Preview

Severely rolled sheets of Al-4.5%Mg-0.7%Mn based alloys have been prepared to achieve grain refinement leading to low temperature superplasticity. Rolling is one of straining technique which has a high possibility of industrial application. The alloys used were T1: base one adding 0.08%Zr and 0.05Ti for suppression of grain growth, F1: 0.80%Fe addition and F2: 1.92%Fe addition to increase nucleation sites of recrystallization. For comparison, M1: Al-4.2%Mg was also prepared. All of samples were 99.8% cold rolled to thin sheet 0.1mm thick. The maximum elongation of 150%, which was markedly large in consideration of specimen thickness of 0.1mm, was obtained at 533K and 1.4×10-3s-1 for T1 sample while the elongations for F1 and F2 showed less than 100%. On the other hand, M1 exhibited larger elongation of 190% at 533K and 1.4×10-3s-1. Further, difference in superplastic deformation of these alloys was investigated by using SEM/ EBSP analysis of intragranular misorientation, which reflects strain or stored energy generated during deformation with dislocation glide, to discuss the deformation mechanism.



Materials Science Forum (Volumes 551-552)

Edited by:

K.F. Zhang




Y. Takayama et al., "Low Temperature Superplasticity and Intragranular Misorientation in Severely Rolled Sheets of Al-4.5%Mg-0.7%Mn Based Alloys", Materials Science Forum, Vols. 551-552, pp. 601-606, 2007

Online since:

July 2007




[1] Y. Miyahara, Z. Horita and T.G. Langdon: Mater. Sci. Eng. Vol. A420(2006), p.240.

[2] K-T. Park, H-J. Lee, C-S. Lee and D-H. S: Mater. Sci. Eng. Vol. A393(2005), p.118.

[3] R.Z. Valiev and R.K. Islamgaliev: Mater. Sci. Forum Vol. 304-306 (1999), p.39.

[4] M. Mabuchi, N. Nakamura, K. Ameyama, H. Iwasaki and K. Higashi: Mater. Sci. Forum Vol. 304-306 (1999), p.67.

[5] N. Tsuji, K. Shiotsuki, H. Utsunomiya and Y. Saito: Mater. Sci. Forum Vol. 304-306 (1999), p.73.

[6] A. Niikura and Y. Bekki: Mater. Sci. Forum Vol. 331-337(2000), p.871.

[7] Y. Takayama, S. Sasaki, H. Kato, H. Watanabe, A. Niikura and Y. Bekki, Mater. Sci. Forum vol. 357-359(2001), p.165.

[8] E.M. Taleff, D.R. Lesuer and J. Wadsworth: Metall. Mater. Trans. Vol. 27A (1996), p.343.

[9] G.I. Taylor: J. Inst. Met. Vol. 62 (1938), p.307.

[10] Y. Takayama and J.A. Szpunar: Mater. Trans. Vol. 45 (2004).
