ZrO2-TiN Composites

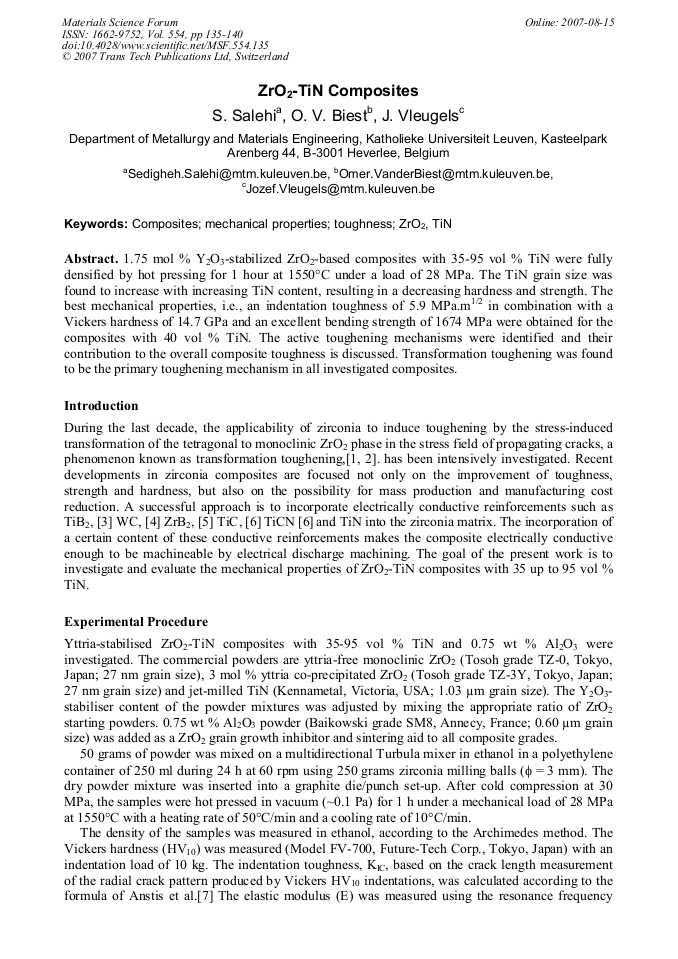

Article Preview

1.75 mol % Y2O3-stabilized ZrO2-based composites with 35-95 vol % TiN were fully densified by hot pressing for 1 hour at 1550°C under a load of 28 MPa. The TiN grain size was found to increase with increasing TiN content, resulting in a decreasing hardness and strength. The best mechanical properties, i.e., an indentation toughness of 5.9 MPa.m1/2 in combination with a Vickers hardness of 14.7 GPa and an excellent bending strength of 1674 MPa were obtained for the composites with 40 vol % TiN. The active toughening mechanisms were identified and their contribution to the overall composite toughness is discussed. Transformation toughening was found to be the primary toughening mechanism in all investigated composites.



Edited by:

Hasan Mandal




S. Salehi et al., "ZrO2-TiN Composites", Materials Science Forum, Vol. 554, pp. 135-140, 2007

Online since:

August 2007




[1] R. C. Garvie, R.H.J. Hannink and R.T. Pascoe: Nature. (1975), 258 pp.703-704.

[2] M. Rühle and A.G. Evans: Prog. Mater. Sci. 33 (1989), pp.85-167.

[3] B. Basu, J. Vleugels and O. Van der Biest: Key Eng. Mater. (2002), 206-213, pp.1177-1180.

[4] G. Anné, S. Put, K. Vanmeensel, D. Jiang, J. Vleugels and O. Van der Biest: J. Europ. Ceram. Soc. 25 (2005), pp.55-63.

[5] B. Basu, J. Vleugels and O. Van der Biest: J. Alloys and Comp. 334 (2002), pp.200-204.

[6] J. Vleugels and O. Van der Biest: J. Amer. Ceram. Soc. 82 (1999), pp.2717-2720.

[7] G.R. Anstis, P. Chantikul, B.R. Lawn, and D.B. Marshall: J. Amer. Ceram. Soc. 64 (1981), pp.533-538.

[8] ASTM Standard E 1876-99, Test Method for Dynamic Young's Modulus, Shear Modulus, and Poisson's ratio for Advanced Ceramics by Impulse Excitation of Vibration, ASTM Annual Book of Standards, PA, (1994).

DOI: 10.1520/c1259

[9] H. Toraya, M. Yoshimura and S. Somiya: J. Amer. Ceram. Soc. 67 (1984), pp.119-121.

[10] J. P. Hardro: selected material system and comparison of their predicted properties to H13 Tool steel, Sep 1999, P5.

[11] R. Morrell: Handbook of properties of technical & engineering ceramics, part1., (1985), pp.95-166.

[12] M. Taya, S. Hayashi, A. Kobayashi and H.S. Yoon: J. Amer. Ceram. Soc. 73 (1990), pp.1382-1391.

[13] M. I. Mendelson: J. Amer. Ceram. Soc. 52 (1969), pp.443-446.

[14] K.T. Faber and A.G. Evans: Acta Metall. 31 (1983), pp.565-576.

[15] R.H. Hannink, P.M. Kelly and B.C. Muddle: J. Amer. Ceram. Soc. 83 (2000), pp.461-487.

[16] L.E. Toth: Refractory materials, Transition metal carbides and nitrides, Vol. 7, San Diego, Academic Press (1971).
