High Surface and High Nanoporosity Boron Nitride Adapted to Hydrogen Sequestration


Article Preview

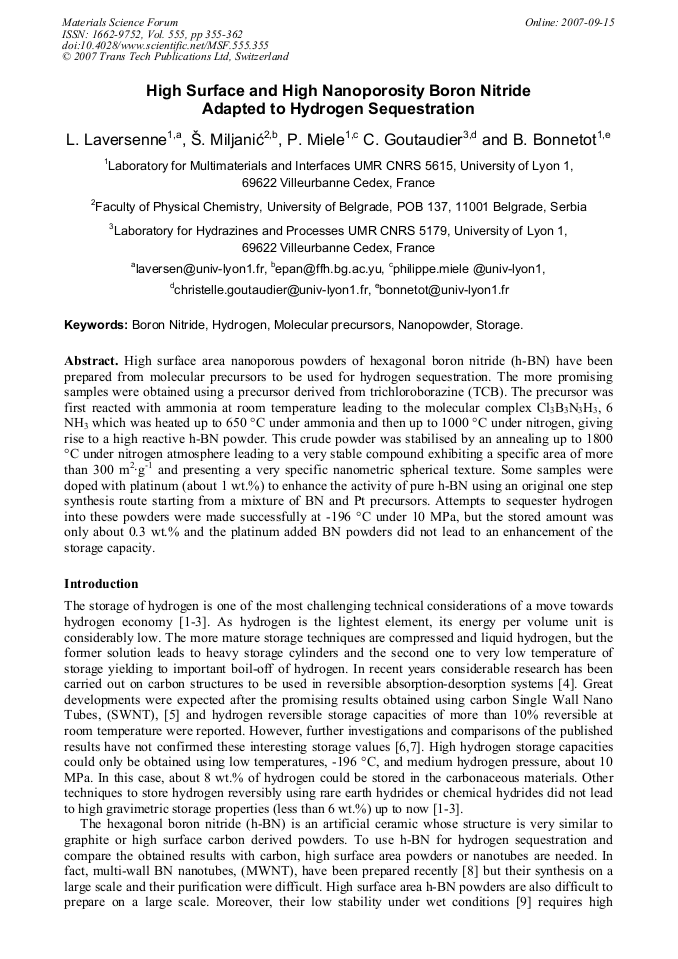

High surface area nanoporous powders of hexagonal boron nitride (h-BN) have been prepared from molecular precursors to be used for hydrogen sequestration. The more promising samples were obtained using a precursor derived from trichloroborazine (TCB). The precursor was first reacted with ammonia at room temperature leading to the molecular complex Cl3B3N3H3, 6 NH3 which was heated up to 650 °C under ammonia and then up to 1000 °C under nitrogen, giving rise to a high reactive h-BN powder. This crude powder was stabilised by an annealing up to 1800 °C under nitrogen atmosphere leading to a very stable compound exhibiting a specific area of more than 300 m2·g-1 and presenting a very specific nanometric spherical texture. Some samples were doped with platinum (about 1 wt.%) to enhance the activity of pure h-BN using an original one step synthesis route starting from a mixture of BN and Pt precursors. Attempts to sequester hydrogen into these powders were made successfully at -196 °C under 10 MPa, but the stored amount was only about 0.3 wt.% and the platinum added BN powders did not lead to an enhancement of the storage capacity.



Edited by:

Dragan P. Uskoković, Slobodan K. Milonjić and Dejan I. Raković




L. Laversenne et al., "High Surface and High Nanoporosity Boron Nitride Adapted to Hydrogen Sequestration", Materials Science Forum, Vol. 555, pp. 355-362, 2007

Online since:

September 2007




[1] A. Züttel: Mater. Today Vol. 6(9) (2003), p.24.

[2] L. Schlapbach and A. Züttel: Nature Vol. 414 (2001), p.353.

[3] G. Sandrock and R.C. Bowman Jr: J. Alloys Comp. Vol. 356-357 (2003), p.794.

[4] R. Chahine and T. Bose: Int. J. Hydrogen Energy Vol. 19 (1994), p.161.

[5] A.C. Dillon, K.M. Jones, T.A. Bekkedahl, C.H. Kiang, D.S. Bethune and M.J. Heben: Nature Vol. 386 (1997), p.377.

DOI: 10.1038/386377a0

[6] F. Lamari Darkrim, P. Malbrunot and P. Tartaglia: Int. J. Hydrogen Energy Vol. 27 (2002), p.193.

[7] M.G. Nijkamp, J.E.M. Raaymakers, A.J. Van Dillen and K.P. De Jong: Appl. Phys A Vol. 72 (2001), p.619.

[8] R. Ma, Y. Bando, H. Zhu, T. Sato, C. Xu and D. Wu: J. Am. Chem. Soc. Vol. 124 (2002), p.7672.

[9] R.T. Paine and C.K. Narula: Chem. Rev. Vol. 90 (1990), p.73.

[10] D.A. Lindquist, T.T. Borek, S.J. Kramer, C.K. Narula, G. Johnston, R. Schaeffer, D.M. Smith and R.T. Paine: J. Am. Ceram. Soc. Vol. 73 (1990), p.757.

[11] T. Matsuda: J. Mat. Sci. Vol. 24 (1989), p.2353.

[12] J.A. Perdigon-Melon, A. Auroux, C. Guimon and B. Bonnetot: J. Solid State Chem. Vol. 177(2) (2004), p.609.

[13] B.G. Demczyk, J. Cumings, A. Zettl and R.O. Ritchie: Applied Physics Letters Vol. 78(18) (2001), p.2772.

[14] M. Houdayer, J. Spitz and D. Tran Van: French Pat. N°81 22163, 1981; U.S. Pat. N°4 472 454, (1984).

[15] K. Niedenzu and J.W. Dawson: J. Am. Chem. Soc. Vol. 81 (1959), p.3561.

[16] Y. Kimura, Y. Kubo and N. Hayashi: J. Inorg. Organomet. Polym. Vol. 2 (1992), p.231.

[17] J. Thomas, N.E. Weston and T.E. O'Connor: J. Am. Chem. Soc. Vol. 84 (1962), p.4619.

[18] F. Chassagneux, T. Epicier, P. Toutois, P. Miele, C. Vincent, and H. Vincent: J. Eur. Ceram. Soc. Vol. 22 (2002), p.2415.

Fetching data from Crossref.
This may take some time to load.
