Homoepitaxial Growth of Vanadium-Doped 4H-SiC Using Bis-Trimethylsilylmethane and Verrocene Precursors

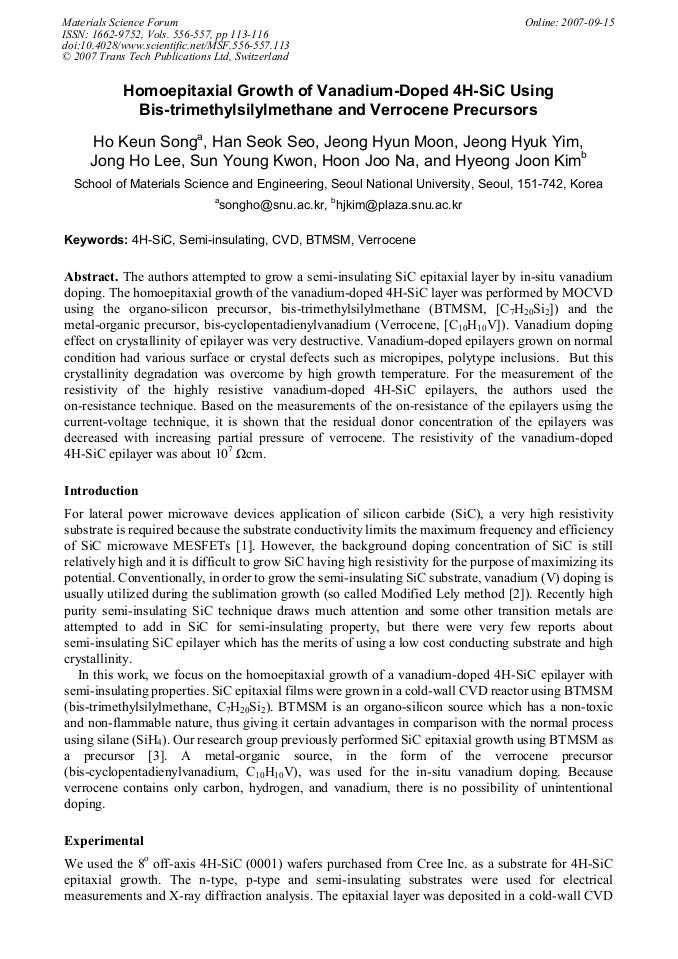

Article Preview

The authors attempted to grow a semi-insulating SiC epitaxial layer by in-situ vanadium doping. The homoepitaxial growth of the vanadium-doped 4H-SiC layer was performed by MOCVD using the organo-silicon precursor, bis-trimethylsilylmethane (BTMSM, [C7H20Si2]) and the metal-organic precursor, bis-cyclopentadienylvanadium (Verrocene, [C10H10V]). Vanadium doping effect on crystallinity of epilayer was very destructive. Vanadium-doped epilayers grown on normal condition had various surface or crystal defects such as micropipes, polytype inclusions. But this crystallinity degradation was overcome by high growth temperature. For the measurement of the resistivity of the highly resistive vanadium-doped 4H-SiC epilayers, the authors used the on-resistance technique. Based on the measurements of the on-resistance of the epilayers using the current-voltage technique, it is shown that the residual donor concentration of the epilayers was decreased with increasing partial pressure of verrocene. The resistivity of the vanadium-doped 4H-SiC epilayer was about 107 /cm.



Materials Science Forum (Volumes 556-557)

Edited by:

N. Wright, C.M. Johnson, K. Vassilevski, I. Nikitina and A. Horsfall




H. K. Song et al., "Homoepitaxial Growth of Vanadium-Doped 4H-SiC Using Bis-Trimethylsilylmethane and Verrocene Precursors ", Materials Science Forum, Vols. 556-557, pp. 113-116, 2007

Online since:

September 2007




[1] H.J. Na, D.H. Kim, S.Y. Jung, I.B. Song, M.Y. Um, H.K. Song, J.K. Jeong, J.B. Lee and H. J. Kim: Mat. Sci. Forum Vols 457-460 (2004), p.1181.

[2] H. McD. Hobgood, R. C. Glass, G. Augustine, R. H. Hopkins, J. Jenny, M. Skowronski, W. C. Mitchel, and M. Roth: Appl. Phys. Lett. Vol 66, (1995), p.1364.

DOI: https://doi.org/10.1063/1.113202

[3] J. K. Jeong, H. K. Song, M. Y. Um, H. J. Na, I. B. Song and H. J. Kim: J. Electrochem. Soc. Vol 151(4) (2004), pG252.

[4] C. Hallin, F. Owman, P. Martensson, A. Ellison, A. Konstantinov, O. Kordina, M. Linnarsson, and E. Jansen: J. Cryst. Growth Vol 181 (1997), p.241.

[5] P. G. Neudeck: Mater. Sci. Forum Vols 338-342 (2000), p.161.

[6] T. Kimoto and H. Matsunami: J. Appl. Phys. Vol 75 (1994), p.850. Fig. 4. The resistivity and free carrier concentration of the vanadium-doped 4H-SiC epilayers.

[40] 50 60 70 80 90 100 110 120.

[10] [2] [10] [3] [10] [4] [10] [5] [10] [6] [10] [7] [10] [8] Resistivity Free Carrier Concentration [cm-3] Resistivity [Ohm⋅cm] Bubbler Temperature [°C].

[10] [10] [10] [11] [10] [12] [10] [13] [10] [14] [10] [15] N d.
