Heavily Doped Polycrystalline 3C-SiC Growth on SiO2/Si (100) Substrates for Resonator Applications

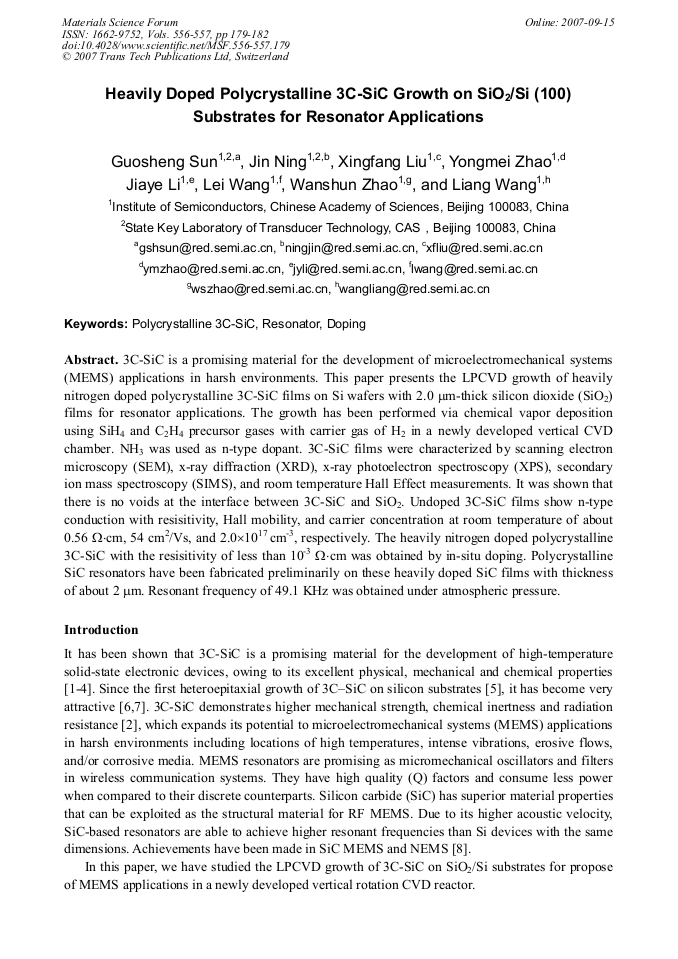

Article Preview

3C-SiC is a promising material for the development of microelectromechanical systems (MEMS) applications in harsh environments. This paper presents the LPCVD growth of heavily nitrogen doped polycrystalline 3C-SiC films on Si wafers with 2.0 μm-thick silicon dioxide (SiO2) films for resonator applications. The growth has been performed via chemical vapor deposition using SiH4 and C2H4 precursor gases with carrier gas of H2 in a newly developed vertical CVD chamber. NH3 was used as n-type dopant. 3C-SiC films were characterized by scanning electron microscopy (SEM), x-ray diffraction (XRD), x-ray photoelectron spectroscopy (XPS), secondary ion mass spectroscopy (SIMS), and room temperature Hall Effect measurements. It was shown that there is no voids at the interface between 3C-SiC and SiO2. Undoped 3C-SiC films show n-type conduction with resisitivity, Hall mobility, and carrier concentration at room temperature of about 0.56 ⋅cm, 54 cm2/Vs, and 2.0×1017 cm-3, respectively. The heavily nitrogen doped polycrystalline 3C-SiC with the resisitivity of less than 10-3 ⋅cm was obtained by in-situ doping. Polycrystalline SiC resonators have been fabricated preliminarily on these heavily doped SiC films with thickness of about 2 μm. Resonant frequency of 49.1 KHz was obtained under atmospheric pressure.



Materials Science Forum (Volumes 556-557)

Edited by:

N. Wright, C.M. Johnson, K. Vassilevski, I. Nikitina and A. Horsfall




G. S. Sun et al., "Heavily Doped Polycrystalline 3C-SiC Growth on SiO2/Si (100) Substrates for Resonator Applications", Materials Science Forum, Vols. 556-557, pp. 179-182, 2007

Online since:

September 2007




[1] D. Gao, C. Carraro, V. Radmilovic, R.T. Howe, and R. Maboudian: J. of Microelectromechanical Systems Vol. 13 (2004), pp.972-976.

DOI: https://doi.org/10.1109/jmems.2004.838372

[2] N. Rajan, M. Mehregany, C.A. Zorman, S. Stefanescu, and T. P. Kicher: J. of Microelectromechanical Systems Vol. 8 (1999) pp.251-257.

DOI: https://doi.org/10.1109/84.788628

[3] M. Eickhoff, H. Moller, G. Kroetz, J. v. Berg, R. Ziermann: Sensors and Actuators Vol. 74 (1999), pp.56-59.

[4] J.S. Shor, D. Goldstein, and A.D. Kurtz: IEEE Trans. Elect. Dev. Vol. 40 (1993), pp.1093-1099.

[5] S. Nishino, J.A. Powell, and H.A. Will: Appl. Phys. Lett. Vol. 42 (1983), p.460.

[6] G.S. Sun Z.Y. Zhang, X. Gao, J.X. Wang, L. Wang, W.S. Zhao, X.L. Wang, Y.P. Zeng, and J.M. Li: Chinese Journal of Semiconductors Vol. 25 (2004), pp.1205-1210.

[7] G.S. Sun, Y.L. Sun, L. Wang, W.S. Zhao, M.C. Luo, Y.X. Zhang, Y.P. Zeng, J.M. Li, and L.Y. Lin: Chinese Journal of Semiconductors Vol. 24 (2003), pp.567-573.

[8] C. A. Zorman and M. Mehregany: Mat. Sci. Forum Vols. 457-460 (2004), pp.1451-1456. Fig. 5. The microphotograph of comb-drived 3C-SiC lateral resonant device fabricated using ICP.
