Temperature Dependence of the Band-Edge Injection Electroluminescence of 3C-SiC pn Structure

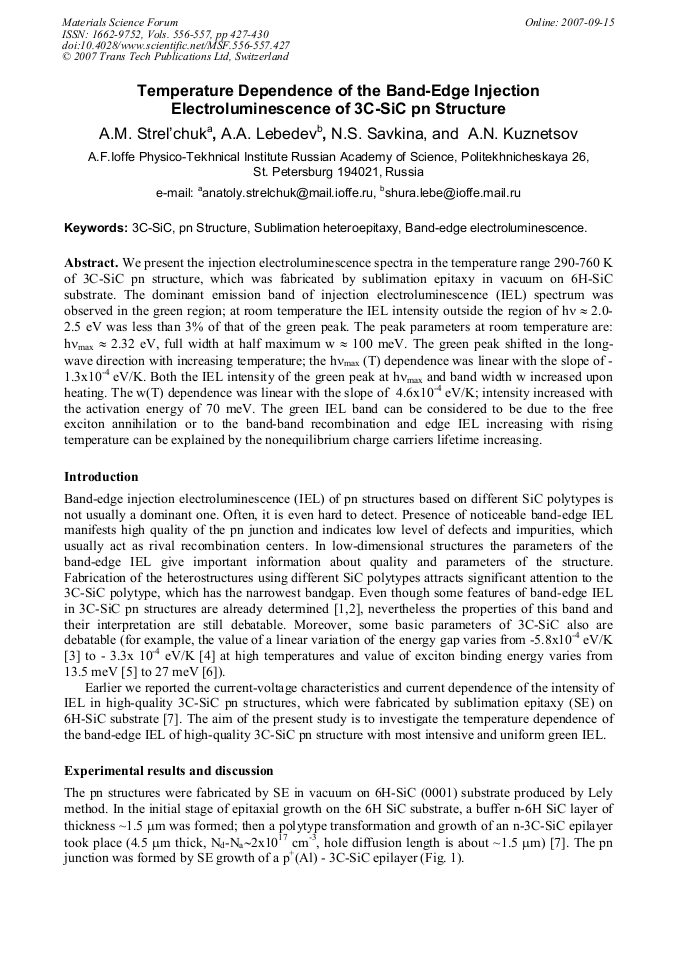

Article Preview

We present the injection electroluminescence spectra in the temperature range 290-760 K of 3C-SiC pn structure, which was fabricated by sublimation epitaxy in vacuum on 6H-SiC substrate. The dominant emission band of injection electroluminescence (IEL) spectrum was observed in the green region; at room temperature the IEL intensity outside the region of hν ≈ 2.0- 2.5 eV was less than 3% of that of the green peak. The peak parameters at room temperature are: hνmax ≈ 2.32 eV, full width at half maximum w ≈ 100 meV. The green peak shifted in the longwave direction with increasing temperature; the hνmax (T) dependence was linear with the slope of - 1.3x10-4 eV/K. Both the IEL intensity of the green peak at hνmax and band width w increased upon heating. The w(T) dependence was linear with the slope of 4.6x10-4 eV/K; intensity increased with the activation energy of 70 meV. The green IEL band can be considered to be due to the free exciton annihilation or to the band-band recombination and edge IEL increasing with rising temperature can be explained by the nonequilibrium charge carriers lifetime increasing.



Materials Science Forum (Volumes 556-557)

Edited by:

N. Wright, C.M. Johnson, K. Vassilevski, I. Nikitina and A. Horsfall




A. M. Strel'chuk et al., "Temperature Dependence of the Band-Edge Injection Electroluminescence of 3C-SiC pn Structure", Materials Science Forum, Vols. 556-557, pp. 427-430, 2007

Online since:

September 2007




[1] Yu.M. Altaiskii et al.: Sov. Phys. Semicond. Vol. 13 (1979), p.1152.

[2] M. Ikeda et al.: J. Appl. Phys. Vol. 50 (1979), p.8215.

[3] R. Dalven: J. Phys. Chem. Solids Vol. 26 (1965), p.439.

[4] W.J. Choyke: Mat. Res. Bull. Vol. 4 (1969), p. S141.

[5] D.S. Nedzvetskii et al.: Sov. Phys. Semicond. Vol. 2 (1969), p.914.

[6] R.G. Humphreys et al.: J. Phys. Soc. Jpn. Vol. 49 Suppl. A (1980), p.519.

[7] A.M. Strel'chuk et al.: Mater. Science Forum Vol. 457-460 (2004), p.1057.

[8] M.M. Anikin et al.: Semiconductors Vol. 28 (1994), p.171.

[9] M.M. Anikin et al. in: Semiconductor interfaces and microstructures, edited by Z.C. Feng, World Scientific, Singapore, New Jersey, London, Hong Kong, pp.280-311 (1992). a b.
