Etching of 4° and 8° 4H-SiC Using Various Hydrogen-Propane Mixtures in a Commercial Hot-Wall CVD Reactor

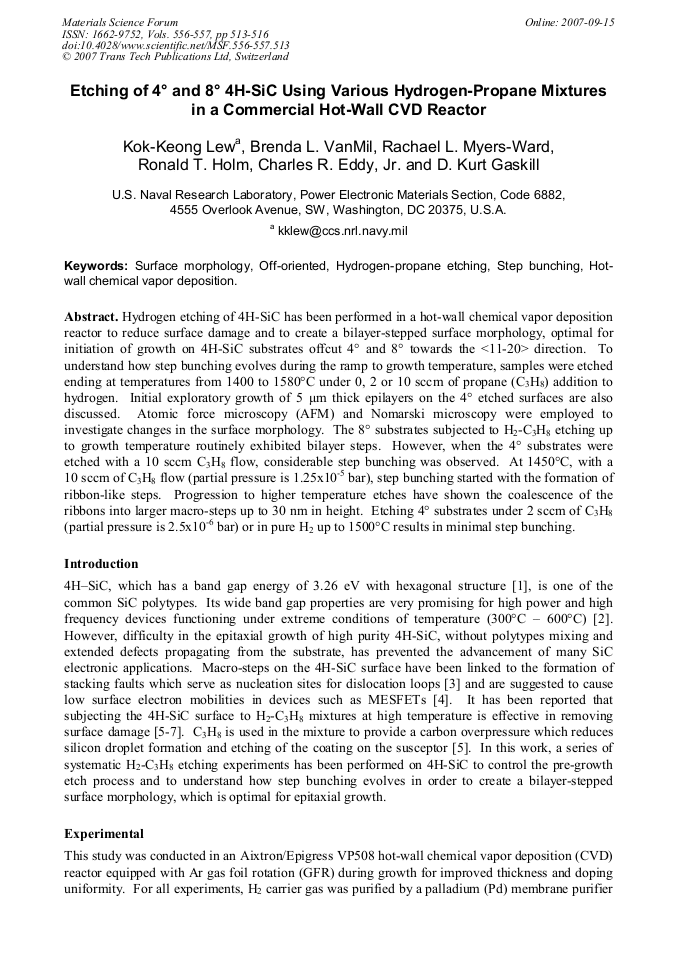

Article Preview

Hydrogen etching of 4H-SiC has been performed in a hot-wall chemical vapor deposition reactor to reduce surface damage and to create a bilayer-stepped surface morphology, optimal for initiation of growth on 4H-SiC substrates offcut 4° and 8° towards the <11-20> direction. To understand how step bunching evolves during the ramp to growth temperature, samples were etched ending at temperatures from 1400 to 1580°C under 0, 2 or 10 sccm of propane (C3H8) addition to hydrogen. Initial exploratory growth of 5 μm thick epilayers on the 4° etched surfaces are also discussed. Atomic force microscopy (AFM) and Nomarski microscopy were employed to investigate changes in the surface morphology. The 8° substrates subjected to H2-C3H8 etching up to growth temperature routinely exhibited bilayer steps. However, when the 4° substrates were etched with a 10 sccm C3H8 flow, considerable step bunching was observed. At 1450°C, with a 10 sccm of C3H8 flow (partial pressure is 1.25x10-5 bar), step bunching started with the formation of ribbon-like steps. Progression to higher temperature etches have shown the coalescence of the ribbons into larger macro-steps up to 30 nm in height. Etching 4° substrates under 2 sccm of C3H8 (partial pressure is 2.5x10-6 bar) or in pure H2 up to 1500°C results in minimal step bunching.



Materials Science Forum (Volumes 556-557)

Edited by:

N. Wright, C.M. Johnson, K. Vassilevski, I. Nikitina and A. Horsfall




K. K. Lew et al., "Etching of 4° and 8° 4H-SiC Using Various Hydrogen-Propane Mixtures in a Commercial Hot-Wall CVD Reactor", Materials Science Forum, Vols. 556-557, pp. 513-516, 2007

Online since:

September 2007




[1] H. Matsunami and T. Kimoto: Mater. Sci. Eng. Reports A Vol. R20 (1997), p.125.

[2] J.A. Cooper, Jr.: IEEE Aerospace Conference Proceedings Vol. 1073 (2004), p.2507.

[3] R.E. Stahlbush, M.E. Twigg, K.G. Irvine, J.J. Sumakeris, T.P. Chow, P.A. Losee, L. Zhu, Y. Tang, W. Wang: Mater. Sci. Forum Vol. 457 (2004), p.533.

[4] A.K. Agarwal, S. Seshadri, J.B. Casady, S.S. Mani, M.F. MacMillan, N. Saks, A.A. Burk, G. Augustine, V. Balakrishna, P.A. Sanger, C.D. Brandt, and R. Rodrigues: Diamond and Related Materials Vol. 8 (1999), p.295.


[5] C. Hallin, F. Owman, P. Mårtensson, A. Ellison, A. Konstantinov, O. Kordina, and E. Janzén: J. Cryst. Growth Vol. 181 (1997), p.241.

[6] T. Kimoto, A. Itoh, H. Matsunami, and T. Okano: J. Appl. Phys. Vol. 81 (1997), p.3494.

[7] K. Wada, T. Kimoto, K. Nishikawa, and H. Matsunami: J. Cryst. Growth Vol. 291 (2006), p.370.

[8] H. Nakagawa, S. Tanaka, and I. Suemune: Phys. Rev. Lett. Vol. 91 (2003), pp.226107-1.

[9] W. Chen and M.A. Capano: J. Appl. Phys. Vol. 98 (2005).
