Nanowire Reconstruction on the 4H-SiC(1102) Surface

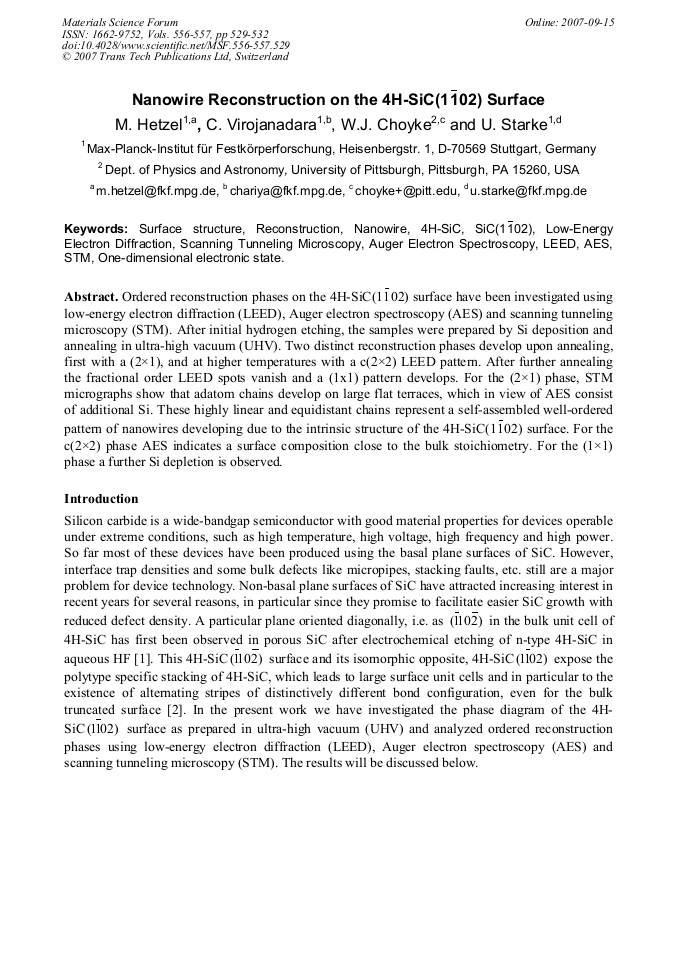

Article Preview

Ordered reconstruction phases on the 4H-SiC(1102) surface have been investigated using low-energy electron diffraction (LEED), Auger electron spectroscopy (AES) and scanning tunneling microscopy (STM). After initial hydrogen etching, the samples were prepared by Si deposition and annealing in ultra-high vacuum (UHV). Two distinct reconstruction phases develop upon annealing, first with a (2×1), and at higher temperatures with a c(2×2) LEED pattern. After further annealing the fractional order LEED spots vanish and a (1x1) pattern develops. For the (2×1) phase, STM micrographs show that adatom chains develop on large flat terraces, which in view of AES consist of additional Si. These highly linear and equidistant chains represent a self-assembled well-ordered pattern of nanowires developing due to the intrinsic structure of the 4H-SiC(1102) surface. For the c(2×2) phase AES indicates a surface composition close to the bulk stoichiometry. For the (1×1) phase a further Si depletion is observed.



Materials Science Forum (Volumes 556-557)

Edited by:

N. Wright, C.M. Johnson, K. Vassilevski, I. Nikitina and A. Horsfall




M. Hetzel et al., "Nanowire Reconstruction on the 4H-SiC(1102) Surface", Materials Science Forum, Vols. 556-557, pp. 529-532, 2007

Online since:

September 2007




[1] Y. Shishkin, W.J. Choyke and R.P. Devaty: J. Appl. Phys. Vol. 96 (2004), p.2311.

[2] U. Starke, W.Y. Lee, C. Coletti, S.E. Saddow, R.P. Devaty and W.J. Choyke: Appl. Phys. Lett. Vol. 88 (2006), p.031915.

[3] S. Soubatch, W.Y. Lee, M. Hetzel, C. Virojanadara, C. Coletti, S.E. Saddow and U. Starke: Mater. Res. Soc. Symp. Proc. Vol. 911 (2006), p. B07-01.

DOI: 10.1557/proc-0911-b07-01

[4] C. Virojanadara, M. Hetzel and U. Starke: to be published.
