Developing an Effective and Robust Process for Manufacturing Bipolar SiC Power Devices

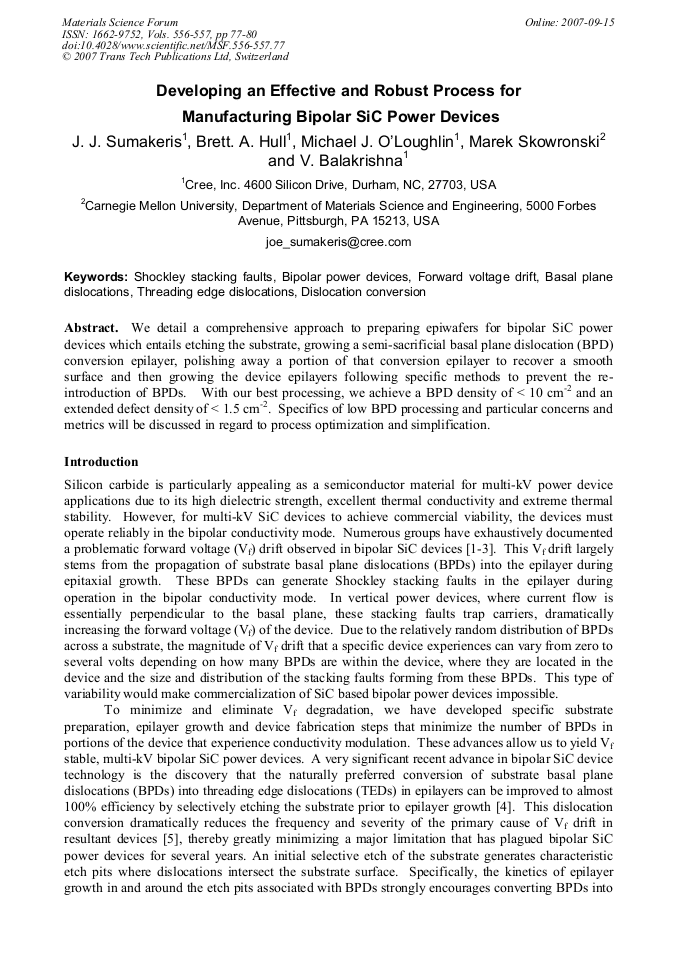

Article Preview

We detail a comprehensive approach to preparing epiwafers for bipolar SiC power devices which entails etching the substrate, growing a semi-sacrificial basal plane dislocation (BPD) conversion epilayer, polishing away a portion of that conversion epilayer to recover a smooth surface and then growing the device epilayers following specific methods to prevent the reintroduction of BPDs. With our best processing, we achieve a BPD density of < 10 cm-2 and an extended defect density of < 1.5 cm-2. Specifics of low BPD processing and particular concerns and metrics will be discussed in regard to process optimization and simplification.



Materials Science Forum (Volumes 556-557)

Edited by:

N. Wright, C.M. Johnson, K. Vassilevski, I. Nikitina and A. Horsfall




J. J. Sumakeris et al., "Developing an Effective and Robust Process for Manufacturing Bipolar SiC Power Devices ", Materials Science Forum, Vols. 556-557, pp. 77-80, 2007

Online since:

September 2007




[1] J.P. Bergman, H. Lendenmann, P.A. Nilsson, U. Lindefelt and P. Skytt: Mater. Sci. Forum Vol. 353-356 (2001), p.299.

[2] M.E. Twigg, R.E. Stahlbush, M. Fatemi, S.D. Arthur, J.B. Fedison, J.B. Tucher and S. Wang: Appl. Phys. Lett. Vol. 82 (2003), p.2410.

[3] J. Q. Liu, M. Skowronski, C. Hallin, R. Soderholm, and H. Lendemann: Appl. Phys. Lett. Vol. 80 (2001), p.749.

[4] J.J. Sumakeris, U.S. Patent 7, 018, 554. (2006).

[5] M.K. Das, J.J. Sumakeris, B.A. Hull, J. Richmond, S. Krishaswami and A.R. Powell: Mater. Sci. Forum Vol. 483-485 (2005), p.965.

[6] M. Paisley, J. Sumakeris and O. Kordina, U. S Patent 6, 569, 250. (2003).

[7] S. Ha, P. Mieszkowski, M. Skowronski and L. Rowland: J. Cryst. Growth Vol. 244 (2002), p.257.

[8] Z. Zhang, T.S. Sudarshan: Appl. Phys. Lett. Vol. 87, 161917 (2005).
