Simulation Study of High-k Materials for SiC Trench MOSFETs

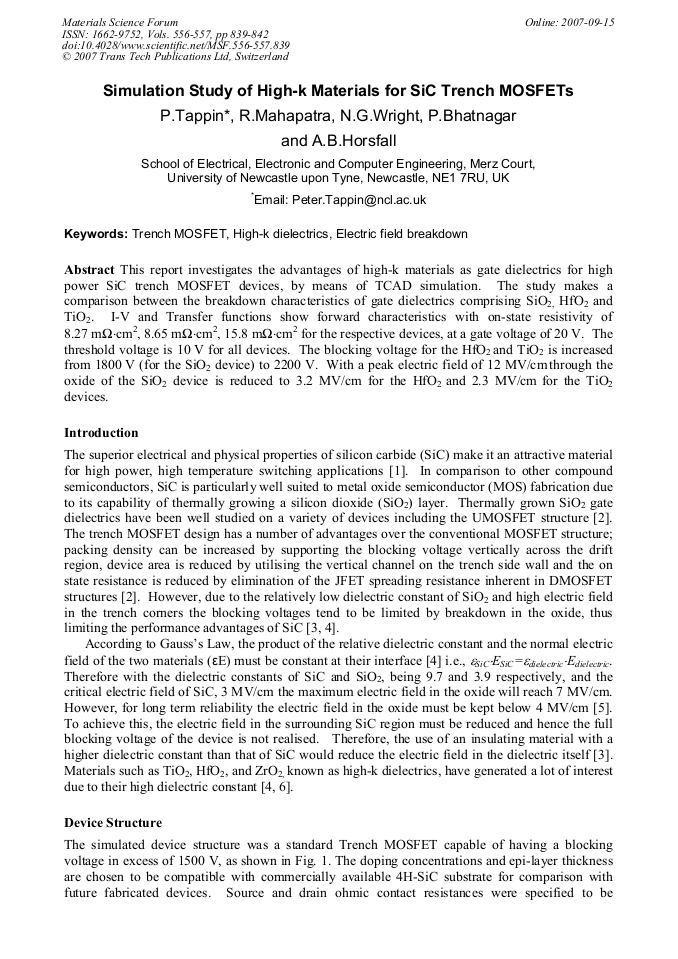

Article Preview

This report investigates the advantages of high-k materials as gate dielectrics for high power SiC trench MOSFET devices, by means of TCAD simulation. The study makes a comparison between the breakdown characteristics of gate dielectrics comprising SiO2, HfO2 and TiO2. I-V and Transfer functions show forward characteristics with on-state resistivity of 8.27 m*⋅cm2, 8.65 m*⋅cm2, 15.8 m*⋅cm2 for the respective devices, at a gate voltage of 20 V. The threshold voltage is 10 V for all devices. The blocking voltage for the HfO2 and TiO2 is increased from 1800 V (for the SiO2 device) to 2200 V. With a peak electric field of 12 MV/cm through the oxide of the SiO2 device is reduced to 3.2 MV/cm for the HfO2 and 2.3 MV/cm for the TiO2 devices.



Materials Science Forum (Volumes 556-557)

Edited by:

N. Wright, C.M. Johnson, K. Vassilevski, I. Nikitina and A. Horsfall




P. Tappin et al., "Simulation Study of High-k Materials for SiC Trench MOSFETs", Materials Science Forum, Vols. 556-557, pp. 839-842, 2007

Online since:

September 2007




[1] A. Elasser, T.P. Chow: Proc. of the IEEE Vol. 90 No. 6 (2002), p.969.

[2] A.K. Agarwal, J.B. Casady, L.B. Roxland, W.F. Valek, M.H. White, C.D. Brand: IEEE Electon Device Letters Vol. 18 No. 12 (1997) p.586.

[3] J. Tan, J.A. Cooper, M.R. Melloch: IEEE Electron Device Letters Vol. 19 No. 12 (1998), p.487.

[4] L.A. Lipkin, J.W. Palmour: IEEE Transactions on Electron Devices Vol. 46 No. 3 (1999), p.525.

[5] M.M. Maranowski, J.A. Cooper, Jr., M.R. Melloch: Long term reliability of thermally grown SiO2 on 6H-SiC, Presented at Semiconductor Interface Specialists Conf., Charlston, SC, Dec (1997).

[6] G.D. Wilk, R.M. Wallace, J.M. Anthony: Journal of Applied Physics Vol. 89 No. 10 (2001), p.5243.

[7] H. Linewih, S. Dimitrijev, K.Y. Cheong: Microelectronics Reliability Vol. 43 (2003), p.405. Fig 5. Electric field distributions through the oxide for the: (a) SiO2, (b) HfO2 and (c) TiO2 devices.
