Submicrocristalline Structure in Copper after Different Severe Plastic Deformation Schemes


Article Preview

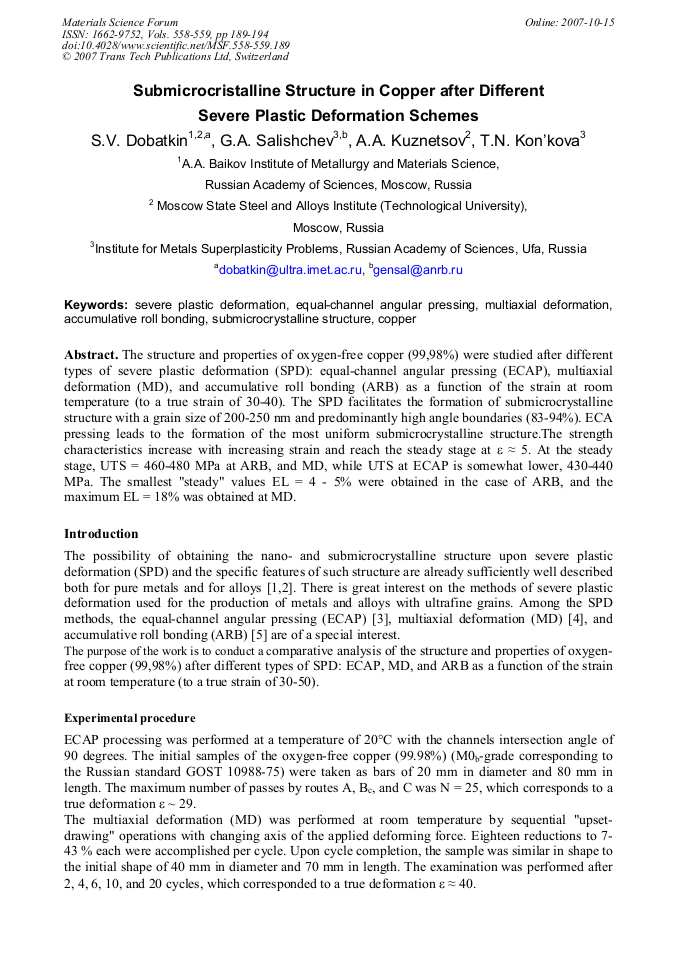

The structure and properties of oxygen-free copper (99,98%) were studied after different types of severe plastic deformation (SPD): equal-channel angular pressing (ECAP), multiaxial deformation (MD), and accumulative roll bonding (ARB) as a function of the strain at room temperature (to a true strain of 30-40). The SPD facilitates the formation of submicrocrystalline structure with a grain size of 200-250 nm and predominantly high angle boundaries (83-94%). ECA pressing leads to the formation of the most uniform submicrocrystalline structure.The strength characteristics increase with increasing strain and reach the steady stage at ε ≈ 5. At the steady stage, UTS = 460-480 MPa at ARB, and MD, while UTS at ECAP is somewhat lower, 430-440 MPa. The smallest "steady" values EL = 4 - 5% were obtained in the case of ARB, and the maximum EL = 18% was obtained at MD.



Materials Science Forum (Volumes 558-559)

Edited by:

S.-J.L. Kang, M.Y. Huh, N.M. Hwang, H. Homma, K. Ushioda and Y. Ikuhara




S. V. Dobatkin et al., "Submicrocristalline Structure in Copper after Different Severe Plastic Deformation Schemes", Materials Science Forum, Vols. 558-559, pp. 189-194, 2007

Online since:

October 2007




[1] Nanomaterials by Severe Plastic Deformation, edited by M.J. Zehetbauer, R.Z. Valiev, (WileyVCH, Vienna, Austria 2003).

[2] Nanomaterials by Severe Plastic Deformation, edited by Z. Horita, (Trans Tech Publications, Switzerland 2005).

[3] V.M. Segal, V.I. Reznikov, V.I. Kopylov et al.: Processes of Plastic Structure Formation in Metals (Nauka i Tekhnika, Minsk, Belorus 1994) (in Russian).

[4] G. Salischev, R. Imaev, V. Imaev et al., in: Investigations and Applications of Severe Plastic deformation, edited by T.C. Lowe and R.Z. Valiev, NATO Science Series, 3. High TechnologyVol. 80, Kluwer Academic Publishers, Dordrecht, (2000).

[5] Y. Saito, H. Utsunomiya, N. Tsuji and T. Sakai: Acta Mater. Vol. 47 (1999), p.579.

[6] S.V. Dobatkin, J.A. Szpunar, A.P. Zhilyaev, A.A. Kuznetsov, in: Ultrafine Grained Materials IV, edited by Y.T. Zhu, T.G. Langdon, Z. Horita, M.J. Zehetbauer, S.L. Semiatin, T.C. Low, TMS (The Minerals, Metals and Materials Society), (2006).

[7] R.Z. Valiev, I.V. Alexandrov, Y.T. Zhu, T.C. Lowe: JMR 17(1) (2002), p.5.

[8] A. Vinogradov, T. Suzuki, S. Hashimoto, K. Kitagawa, A. Kuznetsov, S. Dobatkin: Mater. Sci. Forum Vol. 503-504 (2006), p.971.

[9] R.Z. Valiev: Nature Materials Vol. 3(8) (2004), p.511.

[10] Y. Wang, M. Chen, F. Zhou, E. Ma: Nature Vol. 419 (2002), p.912.
