Low Temperature Recrystallization of High Purity Iron Severely Deformed by ARB Process


Article Preview

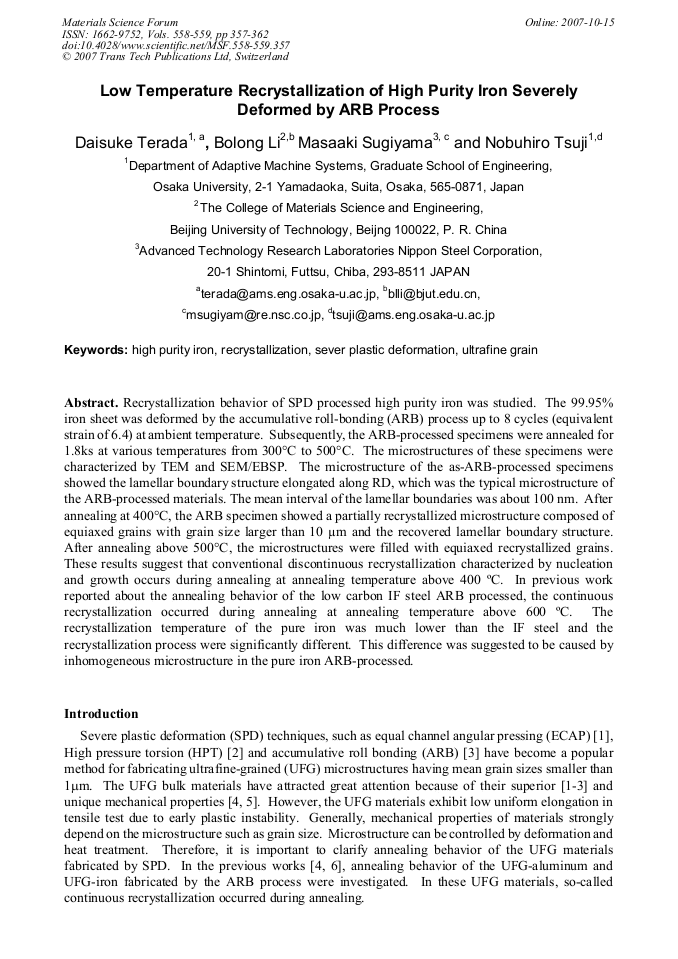

Recrystallization behavior of SPD processed high purity iron was studied. The 99.95% iron sheet was deformed by the accumulative roll-bonding (ARB) process up to 8 cycles (equivalent strain of 6.4) at ambient temperature. Subsequently, the ARB-processed specimens were annealed for 1.8ks at various temperatures from 300°C to 500°C. The microstructures of these specimens were characterized by TEM and SEM/EBSP. The microstructure of the as-ARB-processed specimens showed the lamellar boundary structure elongated along RD, which was the typical microstructure of the ARB-processed materials. The mean interval of the lamellar boundaries was about 100 nm. After annealing at 400°C, the ARB specimen showed a partially recrystallized microstructure composed of equiaxed grains with grain size larger than 10 5m and the recovered lamellar boundary structure. After annealing above 500°C, the microstructures were filled with equiaxed recrystallized grains. These results suggest that conventional discontinuous recrystallization characterized by nucleation and growth occurs during annealing at annealing temperature above 400 °C. In previous work reported about the annealing behavior of the low carbon IF steel ARB processed, the continuous recrystallization occurred during annealing at annealing temperature above 600 °C. The recrystallization temperature of the pure iron was much lower than the IF steel and the recrystallization process were significantly different. This difference was suggested to be caused by inhomogeneous microstructure in the pure iron ARB-processed.



Materials Science Forum (Volumes 558-559)

Edited by:

S.-J.L. Kang, M.Y. Huh, N.M. Hwang, H. Homma, K. Ushioda and Y. Ikuhara




D. Terada et al., "Low Temperature Recrystallization of High Purity Iron Severely Deformed by ARB Process", Materials Science Forum, Vols. 558-559, pp. 357-362, 2007

Online since:

October 2007




[1] Y. Iwahashi, M. Furukawa, Z. Horita, M. Nemoto and T. G. Langdon: Metall. Mater. Trans. A 29 (1998), p.2245.

[2] R. K. ISLAMGALIEV, N. F. YUNUSOVA, I. N. SABIROV, A. V. SERGUEEVA and R. Z. VALIEV: Mater. Sci. Eng. A 319 (2001), p.877.

[3] N. Tsuji, Y. Saito, S. H. Lee and Y. Minamino: Adv. Eng. Mater. 5 (2003), p.38.

[4] N. Tsuji, Y. Ito, Y. Sato and Y. Minamino: Scripta Mater., 47 (2002), p.893.

[5] X. Huang, N. Hansen and N. Tsuji: Science, 32 (2006), p.249.

[6] N. Tsuji, N. Kamikawa and Y. Minamino: Mater. Sci. Forum, 467-470 (2004), p.341.

[7] O. Dimitrov: Mem. Sci. Rev. Met., 62 (1965), p.59.

[8] M. Ishiki and K. Igaki: Trans. JIM., 18(1977), P. 412.

[9] T. Ogawa, N. Harima, S. Takaki and K. Abiko: Mater. Trans. JIM, 41 (2000), P. 95.

[10] T. Taoka, E. Furubayashi and S. Takeuchi: Testu to Haganè, 54 (1968), P. 162.

[11] N. Yoshinaga, D. Vanderschueren, L. Kestens, K. Ushioda and J. Dilewijns: ISIJ int., 38 (1998), p.610.

[12] W. R. Hibbard Jr. and W. R. Tully: Trans. Met. Soc. AIMS, 221 (1960), p.336.

[13] T. Wada, F. Matsumoto and K. Kuroki: J. Japan Inst. Metals, 32 (1968), p.767.

[14] N. Tsuji, K. Tsuzaki and T. Maki: ISIJ int., 33 (1993), p.783.
