Orientation Distribution of Σ3 Grain Boundary Planes in Ni before and after Grain Boundary Engineering

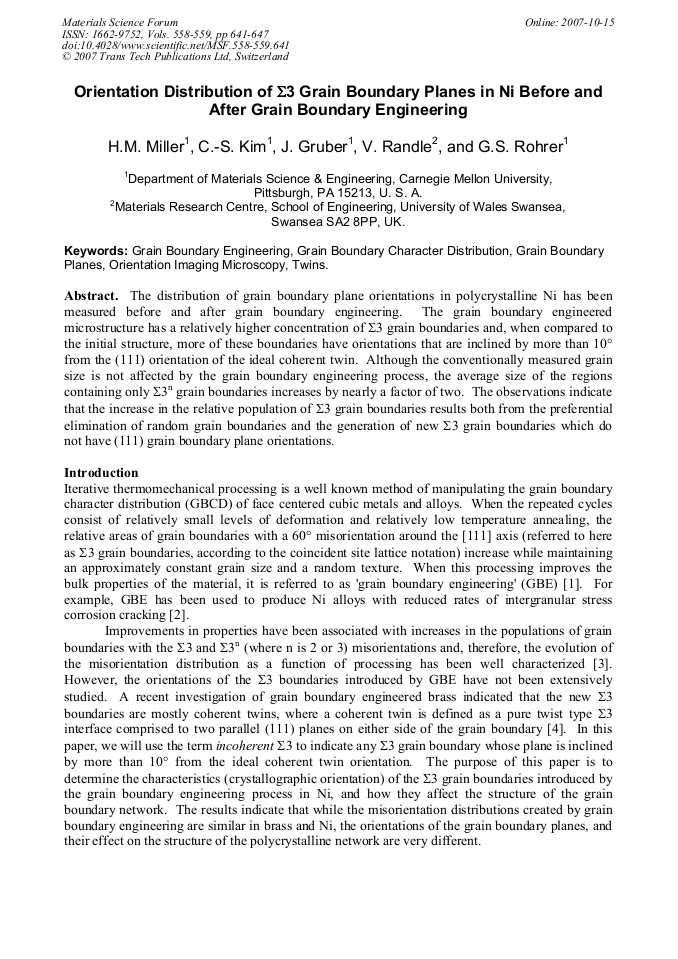

Article Preview

The distribution of grain boundary plane orientations in polycrystalline Ni has been measured before and after grain boundary engineering. The grain boundary engineered microstructure has a relatively higher concentration of Σ3 grain boundaries and, when compared to the initial structure, more of these boundaries have orientations that are inclined by more than 10° from the (111) orientation of the ideal coherent twin. Although the conventionally measured grain size is not affected by the grain boundary engineering process, the average size of the regions containing only Σ3n grain boundaries increases by nearly a factor of two. The observations indicate that the increase in the relative population of Σ3 grain boundaries results both from the preferential elimination of random grain boundaries and the generation of new Σ3 grain boundaries which do not have (111) grain boundary plane orientations.



Materials Science Forum (Volumes 558-559)

Edited by:

S.-J.L. Kang, M.Y. Huh, N.M. Hwang, H. Homma, K. Ushioda and Y. Ikuhara




H. M. Miller et al., "Orientation Distribution of Σ3 Grain Boundary Planes in Ni before and after Grain Boundary Engineering", Materials Science Forum, Vols. 558-559, pp. 641-647, 2007

Online since:

October 2007




[1] Viewpoint set no. 40, Grain boundary engineering, Edited by M. Kumar and C.A. Schuh, Scripta Mater. 54 (2006), p.961.

DOI: https://doi.org/10.1016/j.scriptamat.2005.11.059

[2] P. Lin, G. Palumbo, U. Erb, K.T. Aust: Scripta Metall. et Mater. Vol. 33 (1995), p.1387.

[3] V. Randle: Acta Mater. Vol. 52 (2004), p.4067.

[4] G.S. Rohrer, V. Randle, C. -S. Kim, Y. Hu: Acta Mater. Vol. 54 (2006) p.4389.

[5] D.M. Saylor, B.S. El-Dasher, B.L. Adams, G.S. Rohrer: Metall. and Mater. Trans., Vol. 35A (2004) p. (1981).

[6] G.S. Rohrer, D.M. Saylor, B.S. El-Dasher, B.L. Adams, A.D. Rollett, P. Wynblatt: Z. Metall., Vol. 95 (2004) p.197.

[7] K. Miyazawa, Y. Iwasaki, K. Ito, Y. Ishida: Acta Cryst. Vol. A52 (1996) p.787.

[8] L.C. Lim, R. Raj: Acta Metall. Vol. 32 (1984) p.1177.

[9] D.M. Saylor, A. Morawiec, G.S. Rohrer, Acta Mater.: Vol. 51 (2003) p.3675.

[10] D.M. Saylor, B.S. El-Dasher, T. Sano, G.S. Rohrer: J. Amer. Ceram. Soc., Vol. 87 (2004) p.670.

[11] D.M. Saylor, B.S. El Dasher, A.D. Rollett, G.S. Rohrer: Acta Mater: Vol. 52 (2004) p.3649.

[12] R. Schmelzle, T. Muschik, W. Gust, B. Predel: Scripta Metall et Mater Vol. 25 (1991) p. (1981).

[13] U. Wolf, F. Ernst T. Muschik, M.W. Finnis, H.F. Fischmeister: Phil Mag A Vol. 66 (1992) p.991.

[14] J.W. Christian, P.R. Swann, in: Alloying behavior and effects in concentrated solid solutions. New York (NY): Gordon & Breach Sci. Pub.; 1965. p.105.

[15] H. Gleiter: Acta Metall Vol. 17 (1969) p.1421.
