Statistical Aspects of Grain Coarsening in a Fine Grained Al-Sc Alloy


Article Preview

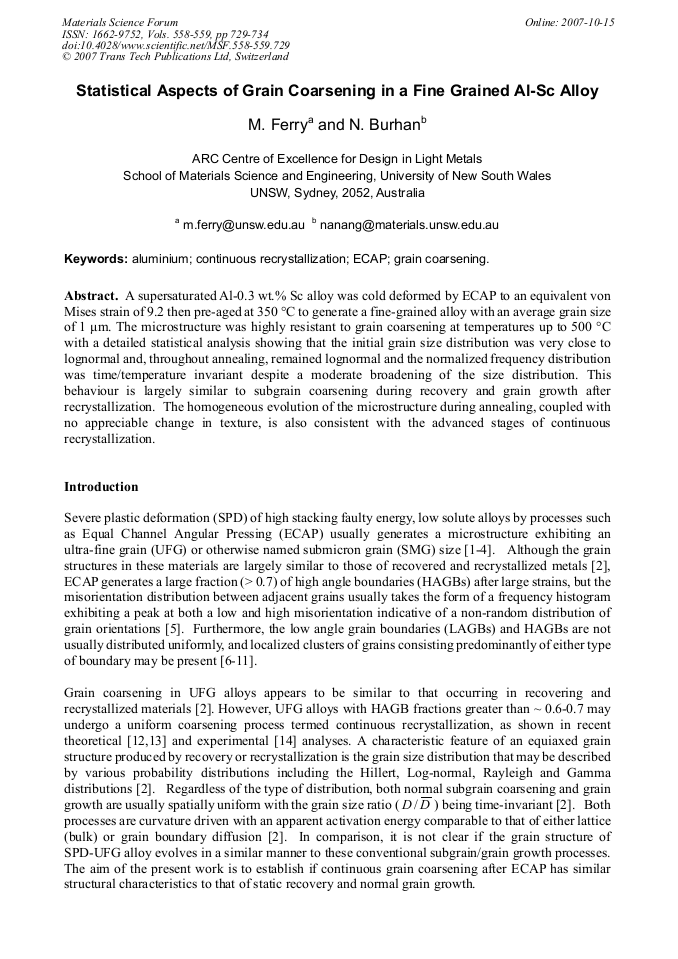

A supersaturated Al-0.3 wt.% Sc alloy was cold deformed by ECAP to an equivalent von Mises strain of 9.2 then pre-aged at 350 °C to generate a fine-grained alloy with an average grain size of 1 μm. The microstructure was highly resistant to grain coarsening at temperatures up to 500 °C with a detailed statistical analysis showing that the initial grain size distribution was very close to lognormal and, throughout annealing, remained lognormal and the normalized frequency distribution was time/temperature invariant despite a moderate broadening of the size distribution. This behaviour is largely similar to subgrain coarsening during recovery and grain growth after recrystallization. The homogeneous evolution of the microstructure during annealing, coupled with no appreciable change in texture, is also consistent with the advanced stages of continuous recrystallization.



Materials Science Forum (Volumes 558-559)

Edited by:

S.-J.L. Kang, M.Y. Huh, N.M. Hwang, H. Homma, K. Ushioda and Y. Ikuhara




M. Ferry and N. Burhan, "Statistical Aspects of Grain Coarsening in a Fine Grained Al-Sc Alloy", Materials Science Forum, Vols. 558-559, pp. 729-734, 2007

Online since:

October 2007




[1] Humphreys FJ, Prangnell PB, Bowen JR, Gholinia A, Harris C. Phil Trans Royal Society A 1999; 357; 1663.

[2] Humphreys FJ, Hatherly M. Recrystallization and Related Annealing Phenomena, 2nd edition. Pergamon Press, Oxford, UK; (2004).

[3] Valiev RZ, Islamgaliev RK, Alexandrov IV. Prog Mater Sci 2000; 45; 103.

[4] Valiev RZ, Langdon TG. Prog Mater Sci 2006; 51; 881.

[5] McKenzie JK. Biometrica 1958; 45; 229.

[6] Ferry M, Hamilton NE, Humphreys FJ. Acta Mater 2005; 53; 1097.

[7] Ferry M. Acta Mater 2005; 53, 773.

[8] Apps PJ, Berta M, Prangnell PB. Acta Mater 2005; 53; 499.

[9] Berta M, Apps PJ, Prangnell PB. Mater Sci Eng A 2005; 410-411; 381.

[10] Ferry M, Burhan N. Scripta Mater 2007; 56; 525.

[11] Ferry M, Burhan N. Acta Mater (in press).

[12] Humphreys FJ. Acta Mater 1997; 45; 4231.

[13] Prangnell PB, Hayes JS, Bowen JR, Apps PJ, Bate PS. Acta Mater 2004; 52; 3193.

[14] Jazaeri H, Humphreys FJ. Acta Mater 2004; 52; 3251.

[15] Manohar PA, Ferry M, Chandra T. ISIJ International 1998; 38; 913.

[16] Yu CY, Sun PL, Kao PL, Chang CP. Mater Sci Eng A 2004; 366; 310.

[17] Oscarsson A, Ekström E-K, Hutchinson BW. Mater Sci Forum 1993; 113-115; 177.

[18] Huang Y, Humphreys FJ. Acta Mater 2000; 48; (2017).

[19] Saetre TO, Hunderi O, Nes E. Acta Metall 1986; 34; 981.

[20] Barmak, K, Archibald WE, Rollett AD. in Interfacial Engineering for Optimized Properties III. MRS, USA 2004; 89; 225.

[21] Carpenter DT, Rickman JM, Barmak K. J Appl Phys 1998; 84; 5843.

[22] Underwood EE. Quantitative Stereology, Addison-Wesley; (1970).
