Influence of Localized Primary Recrystallization Texture on Secondary Recrystallized Grains in Fe-3%Si

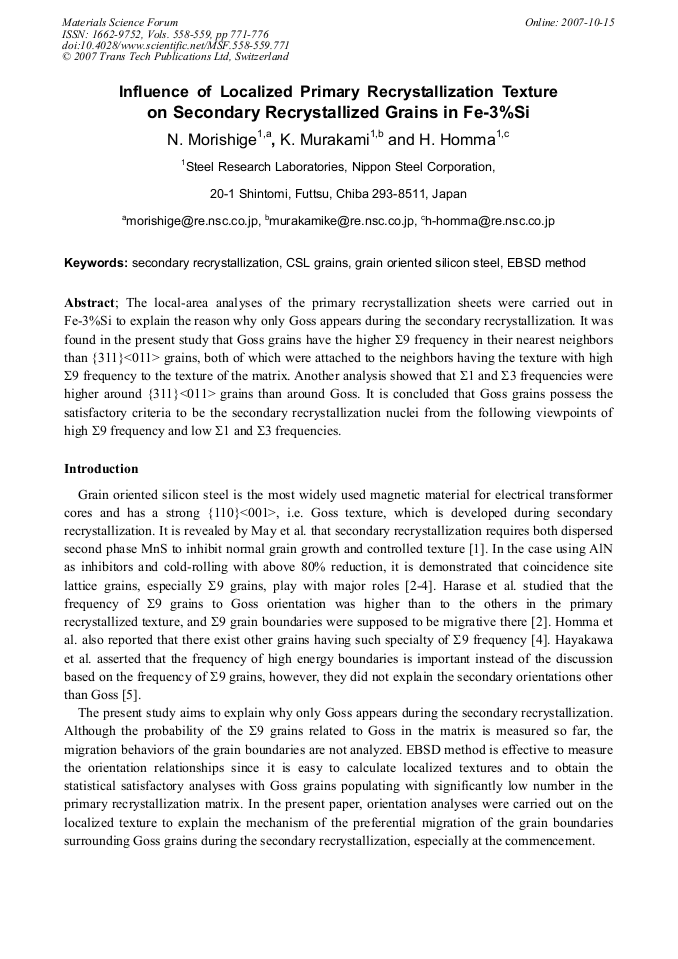

Article Preview

The local-area analyses of the primary recrystallization sheets were carried out in Fe-3%Si to explain the reason why only Goss appears during the secondary recrystallization. It was found in the present study that Goss grains have the higher Σ9 frequency in their nearest neighbors than {311}<011> grains, both of which were attached to the neighbors having the texture with high Σ9 frequency to the texture of the matrix. Another analysis showed that Σ1 and Σ3 frequencies were higher around {311}<011> grains than around Goss. It is concluded that Goss grains possess the satisfactory criteria to be the secondary recrystallization nuclei from the following viewpoints of high Σ9 frequency and low Σ1 and Σ3 frequencies.



Materials Science Forum (Volumes 558-559)

Edited by:

S.-J.L. Kang, M.Y. Huh, N.M. Hwang, H. Homma, K. Ushioda and Y. Ikuhara




N. Morishige et al., "Influence of Localized Primary Recrystallization Texture on Secondary Recrystallized Grains in Fe-3%Si", Materials Science Forum, Vols. 558-559, pp. 771-776, 2007

Online since:

October 2007




[1] J. E. May and D. Turnbull: Trans. Met. Soc. AIME, Vol. 212 (1958), p.769.

[2] J. Harase and R. Shimizu, Acta. Metall., Vol. 38 (1990), p.1395 Fig. 4 The frequencies of CSL Grains in the nearest neighbors around Goss and {311}<011>. Tolerance angles were determined following Brandon's equation; θ < 15°/Σ1/2.

[3] Y. Ushigami, T. Kubota and N. Takahashi, ISIJ Int., Vol. 38 (1998), p.553.

[4] H. Homma and B. Huchinson, Acta. mater., Vol. 51 (2003), p.3795.

[5] Y. Hayakawa and J. A. Szpunar, Acta. mater., Vol. 45 (1997), p.1285.

[6] D. G. Brandom, B. Ralph, S. Ranganathan and M. S. Wald, Acta. metall., Vol. 12 (1964), p.813.

[7] L. Ryde, B. Hutchinson and T. Kumano, Mater. Sci. Forum, Vol. 467-470 (2004), p.739.
