Cold-Rolled Micro-Texture in Polycrystalline 3%Si-Fe


Article Preview

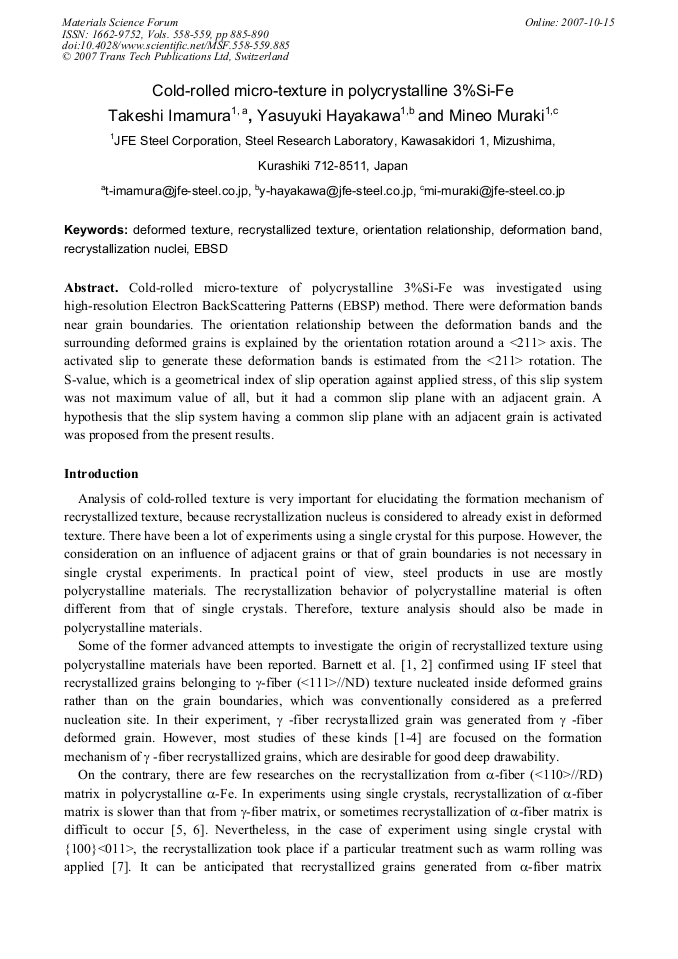

Cold-rolled micro-texture of polycrystalline 3%Si-Fe was investigated using high-resolution Electron BackScattering Patterns (EBSP) method. There were deformation bands near grain boundaries. The orientation relationship between the deformation bands and the surrounding deformed grains is explained by the orientation rotation around a <211> axis. The activated slip to generate these deformation bands is estimated from the <211> rotation. The S-value, which is a geometrical index of slip operation against applied stress, of this slip system was not maximum value of all, but it had a common slip plane with an adjacent grain. A hypothesis that the slip system having a common slip plane with an adjacent grain is activated was proposed from the present results.



Materials Science Forum (Volumes 558-559)

Edited by:

S.-J.L. Kang, M.Y. Huh, N.M. Hwang, H. Homma, K. Ushioda and Y. Ikuhara




T. Imamura et al., "Cold-Rolled Micro-Texture in Polycrystalline 3%Si-Fe", Materials Science Forum, Vols. 558-559, pp. 885-890, 2007

Online since:

October 2007




[1] M. R. Barnett: ISIJ Int., 38, p.78. (1998).

[2] M. R. Barnett and L. Kestens: ISIJ Int., 39, p.923. (1999).

[3] D. Vanderschueren, N. Yoshinaga and K. Koyama: ISIJ Int., 36, p.1046. (1996).

[4] Y. Ozaki, M. Muraki and T. Obara: ISIJ Int., 38, p.531. (1998) Fig. 4 (100) pole figure of a deformed band in the sample annealed at 1323K.

[5] W. R. Hibbard, Jr. and W. R. Tully: Trans. AIME, 221, p.336. (1961).

[6] C. G. Dunn and P. K. Koh: Trans. AIME, 212, p.731. (1958).

[7] T. Toge, M. Muraki, M. Komatsubara and T. Obara: ISIJ Int., 38, p.524. (1998).

[8] E. Furubayashi: Trans. ISIJ, 9, p.222. (1969).
