Faceting and Migration of Low Angle <100> Tilt Grain Boundaries in Pure Aluminum

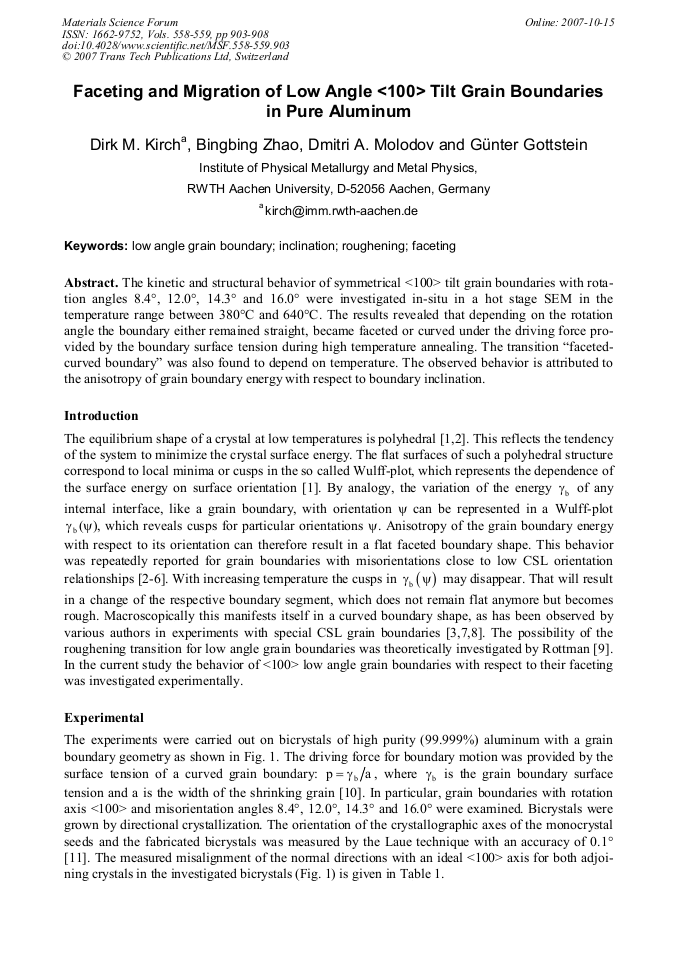

Article Preview

The kinetic and structural behavior of symmetrical <100> tilt grain boundaries with rotation angles 8.4°, 12.0°, 14.3° and 16.0° were investigated in-situ in a hot stage SEM in the temperature range between 380°C and 640°C. The results revealed that depending on the rotation angle the boundary either remained straight, became faceted or curved under the driving force provided by the boundary surface tension during high temperature annealing. The transition “facetedcurved boundary” was also found to depend on temperature. The observed behavior is attributed to the anisotropy of grain boundary energy with respect to boundary inclination.



Materials Science Forum (Volumes 558-559)

Edited by:

S.-J.L. Kang, M.Y. Huh, N.M. Hwang, H. Homma, K. Ushioda and Y. Ikuhara




D. M. Kirch et al., "Faceting and Migration of Low Angle <100> Tilt Grain Boundaries in Pure Aluminum", Materials Science Forum, Vols. 558-559, pp. 903-908, 2007

Online since:

October 2007




[1] C. Herring: Phys. Rev. Vol. 82 (1951), p.87.

[2] D.Y. Yoon, Y. K. Cho and H. M. Jang: Mat. Sci. Forum Vol. 467-470 (2004), p.825.

[3] A.P. Sutton and R.W. Balluffi: Interfaces in Crystalline Materials (Clarendon Press, Oxford 1995), p.367.

[4] T. E. Hsieh and R. W. Balluffi: Acta Metall. Vol. 37 (1989), p.2133.

[5] B. B. Straumal, S. A. Polyakov, E. Bischoff, W. Gust and E.J. Mittemeijer: Interface Science Vol. 9 (2001), p.287.

[6] S. B. Lee, W. Sigle and M. Rühle: Acta Mater. Vol. 51 (2003), p.4583.

[7] B. B. Straumal, S. A. Polyakov and E. J. Mittemeijer: Acta Mater. Vol. 54 (2006), p.167.

[8] D.Y. Yoon and Y.K. Cho: Journal of Mat. Sci. Vol. 40 (2005), p.861.

[9] C. Rottman: Phys. Rev. Letters Vol. 57 (1986), p.735.

[10] D. A. Molodov, U. Czubayko, G. Gottstein and L. S. Shvindlerman: Scripta Mater. Vol. 32 (1995), p.529.

[11] D. A. Molodov, V. A. Ivanov and G. Gottstein: Acta Mater. (2007), doi: 10. 1016/j. actamat. 2006. 10. 045.

[12] W. T. Read and W. Shockley: Phys. Rev. Vol. 78 (1950), p.275.
