Microstructure and Magnetic Properties of CoFeHfO Rich Nanocrystalline Thin Films Application for High Frequency

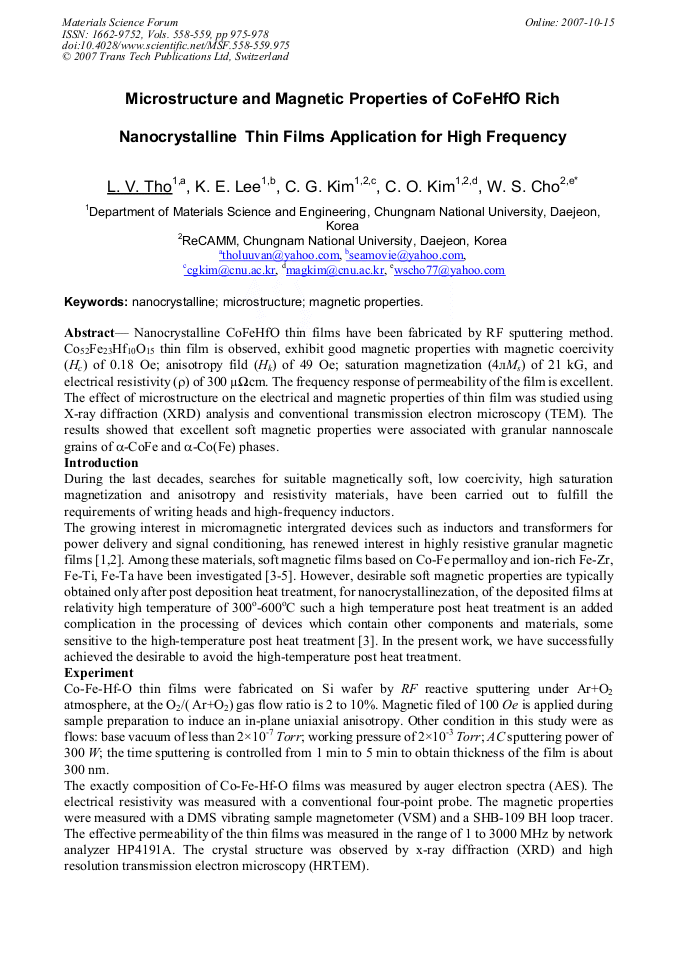

Article Preview

Nanocrystalline CoFeHfO thin films have been fabricated by RF sputtering method. Co52Fe23Hf10O15 thin film is observed, exhibit good magnetic properties with magnetic coercivity (Hc) of 0.18 Oe; anisotropy fild (Hk) of 49 Oe; saturation magnetization (4лMs) of 21 kG, and electrical resistivity (ρ) of 300 01cm. The frequency response of permeability of the film is excellent. The effect of microstructure on the electrical and magnetic properties of thin film was studied using X-ray diffraction (XRD) analysis and conventional transmission electron microscopy (TEM). The results showed that excellent soft magnetic properties were associated with granular nannoscale grains of α-CoFe and α-Co(Fe) phases.



Materials Science Forum (Volumes 558-559)

Edited by:

S.-J.L. Kang, M.Y. Huh, N.M. Hwang, H. Homma, K. Ushioda and Y. Ikuhara




L.V. Tho et al., "Microstructure and Magnetic Properties of CoFeHfO Rich Nanocrystalline Thin Films Application for High Frequency", Materials Science Forum, Vols. 558-559, pp. 975-978, 2007

Online since:

October 2007




[1] A. M. Crawford, D. Gardner, and S. X. Wang, IEEE Trans. Magn. 38, 3168 (2002).

[2] M. Xu, T. M. Liakopoulos, and C. H. Ahn, IEEE Trans. Magn. 34, 1369 (1998).

[3] N. Kataoka, M. Hosokawa, A. Inoue, and T. Masumoto, Jpn. J. Appl. Phys. 28, L462 (1989).

[4] N. Kataoka, K. Sumiyama, and Y. Nakamura, Trans. Jpn. Inst. Met. 27, 823 (1986).

[5] Xiaomin Liu and Giovanni Zangari, Liyong Shen, J. Appl. Phys. 87, 9. (2000).

[6] Liangliang Li, a! Ankur M. Crawford, Shan X. Wang, and Ann F. Marshall, J. Appl. Phys. 97, 10F907. (2005).

[7] K. E. Lee, L. V. Tho, K. C. Gi, K. C. Oh, W. S. Cho, submitted. Fig. 6. Frequency dependence of effective permeability of Co53Fe22Hf10O15 film measured along hard axis.
