3D Microstructure Development during Unconstrained Solidification of Aluminum Alloys

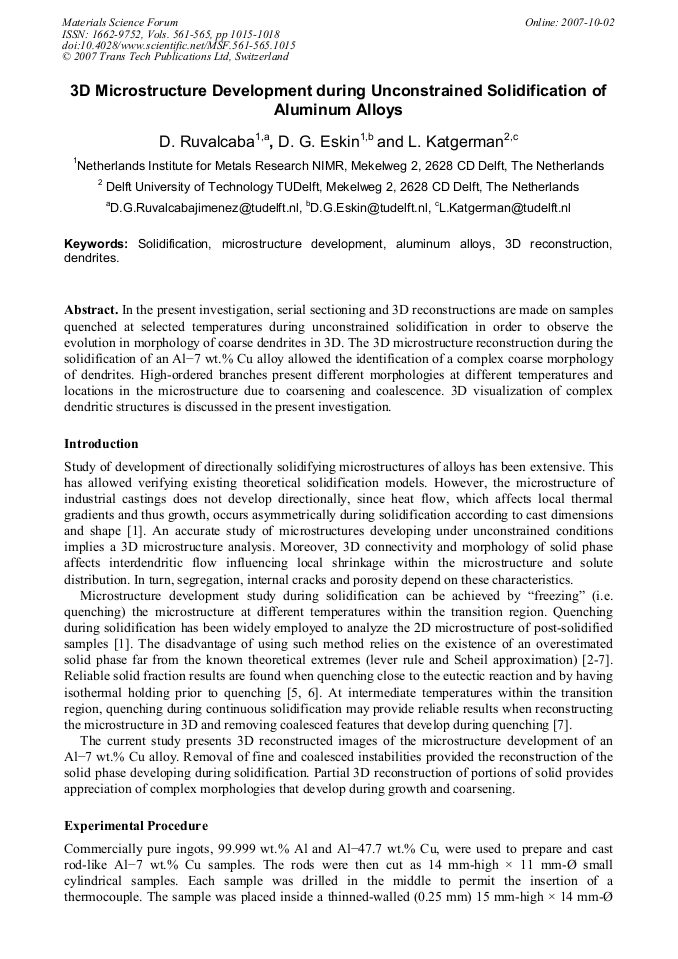

Article Preview

In the present investigation, serial sectioning and 3D reconstructions are made on samples quenched at selected temperatures during unconstrained solidification in order to observe the evolution in morphology of coarse dendrites in 3D. The 3D microstructure reconstruction during the solidification of an Al−7 wt.% Cu alloy allowed the identification of a complex coarse morphology of dendrites. High-ordered branches present different morphologies at different temperatures and locations in the microstructure due to coarsening and coalescence. 3D visualization of complex dendritic structures is discussed in the present investigation.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




D. Ruvalcaba et al., "3D Microstructure Development during Unconstrained Solidification of Aluminum Alloys", Materials Science Forum, Vols. 561-565, pp. 1015-1018, 2007

Online since:

October 2007




[1] W. Kurz and D. J. Fisher: Fundamentals of Solidification, 4th ed. (Trans Tech Publications, Switzerland 1998).

[2] S. W. Chen and C. C. Huan: Acta Metallurgica Vol. 44 (1996), p.1955-(1965).

[3] Ø. Nielsen and S. O. Olsen: Transactions of the American Foundryman's Society Vol. 110 (2002), paper 02-096.

[4] E. Tzimas and A. Zavaliangos: Journal of Materials Science Vol. 35 (2000), pp.5319-5329.

[5] M. Rettenmayr and O. Pompe: Journal of Crystal Growth Vol. 173 (1997), pp.182-188.

[6] O. Pompe and M. Rettermayr: Journal of Crystal Growth Vol. 192 (1998), pp.300-306.

[7] D. Ruvalcaba, D. G. Eskin and L. Katgerman: Materials Science Forum Vol. 519-521 (2006), pp.1707-1712.

DOI: https://doi.org/10.4028/www.scientific.net/msf.519-521.1707

[8] J. C. Fiala: Journal of Microscopy Pt 1 Vol. 218 (2004), pp.52-61.
