Study on the In Situ SEM Tension Observation of E-A356 Alloys

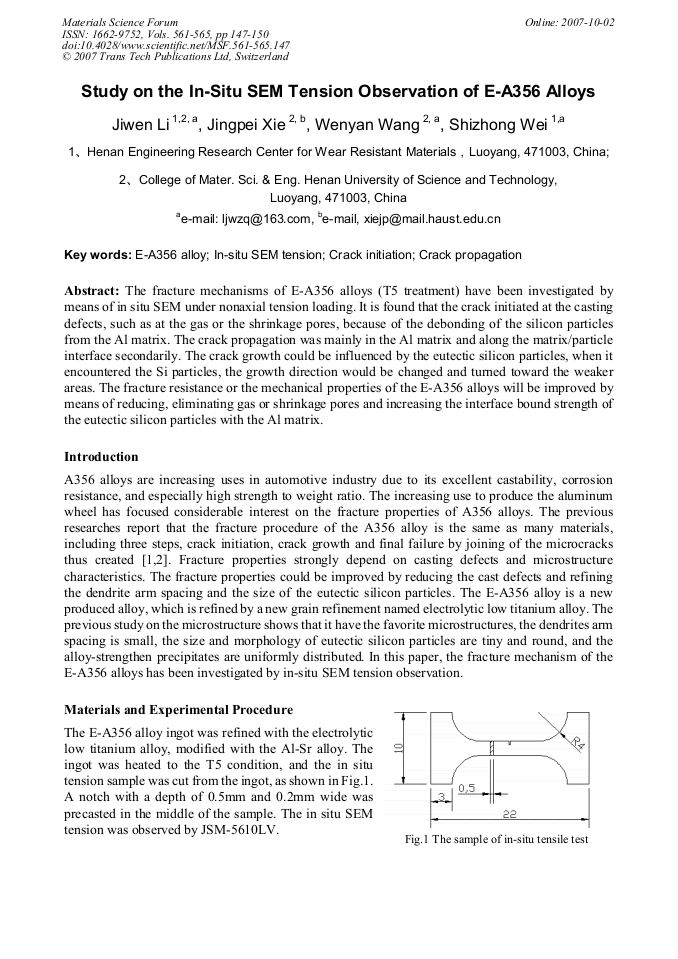

Article Preview

The fracture mechanisms of E-A356 alloys (T5 treatment) have been investigated by means of in situ SEM under nonaxial tension loading. It is found that the crack initiated at the casting defects, such as at the gas or the shrinkage pores, because of the debonding of the silicon particles from the Al matrix. The crack propagation was mainly in the Al matrix and along the matrix/particle interface secondarily. The crack growth could be influenced by the eutectic silicon particles, when it encountered the Si particles, the growth direction would be changed and turned toward the weaker areas. The fracture resistance or the mechanical properties of the E-A356 alloys will be improved by means of reducing, eliminating gas or shrinkage pores and increasing the interface bound strength of the eutectic silicon particles with the Al matrix.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




J. W. Li et al., "Study on the In Situ SEM Tension Observation of E-A356 Alloys", Materials Science Forum, Vols. 561-565, pp. 147-150, 2007

Online since:

October 2007




[1] Wang, Q.G.; Cáceres, C.H., The fracture mode in Al-Si-Mg casting alloys,Materials Science and Engineering: A Volume: 241, Issue: 1-2, January, 1998, pp.72-82.


[2] McDowell, D.L.; Gall, K.; Horstemeyer, M.F.; Fan, J., Microstructure-based fatigue modeling of cast A356-T6 alloy, Engineering Fracture Mechanics Volume: 70, Issue: 1, January, 2003, pp.49-80.


[3] Mocellin, A.; Brechet, Y.; Fougeres, R., Fracture of an osprey TM AlSiFe alloy: a microstructure based model for fracture of microheterogeneous materials, Acta Metallurgica Materialia Volume: 43, Issue: 3, March, 1995, pp.1135-1140.


[4] Jacques Stolarz, Olivier Madelaine-Dupuich, Thierry Magnin, Microstructural factors of low cycle fatigue damage in two phaseAl-Si alloys, Materials Science and Engineering A299 (2001) 275-286.


[5] Zhang Jingwu, Jing Tianfu. In Situ TEM Study of Cracks Initiation and Propagation in A Grain of FCC Metal, Chinese Jouranal of Materials Research Vol. 13, 2(1999) 31-35.

[6] Kwai S. Chan, Peggy Johes, Qigui Wang, Fatigue crack growth and fracture paths in sand B319 and A356 aluminium alloys[J], Materials Science and Engineering A341 (2002) 18-34.
