Characterization of Intermetallic Phases and Planar Defects in Mg-Y-Zn Alloys

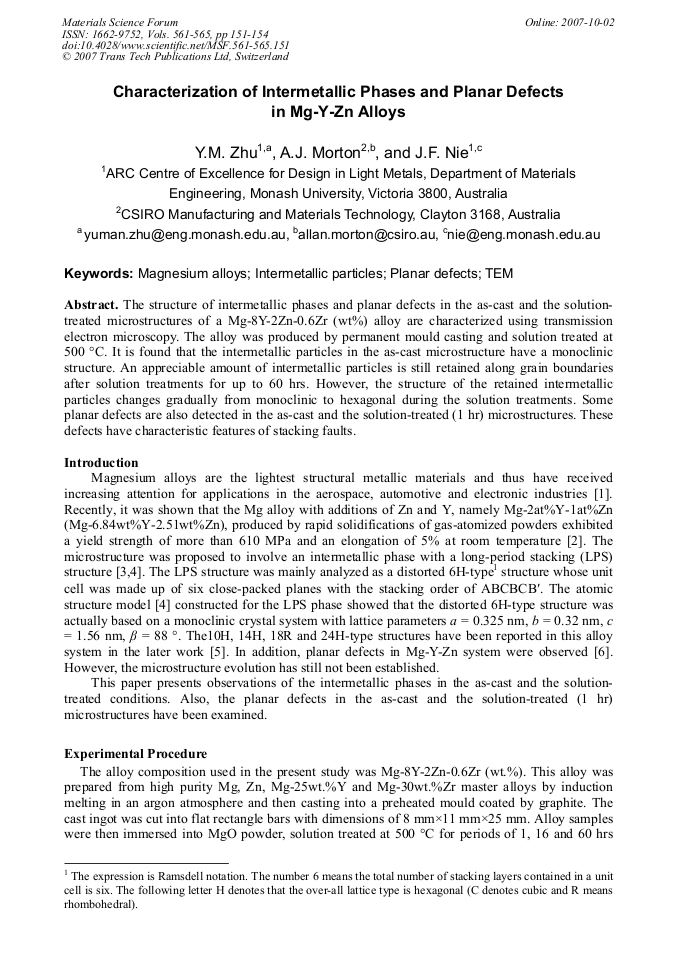

Article Preview

The structure of intermetallic phases and planar defects in the as-cast and the solutiontreated microstructures of a Mg-8Y-2Zn-0.6Zr (wt%) alloy are characterized using transmission electron microscopy. The alloy was produced by permanent mould casting and solution treated at 500 °C. It is found that the intermetallic particles in the as-cast microstructure have a monoclinic structure. An appreciable amount of intermetallic particles is still retained along grain boundaries after solution treatments for up to 60 hrs. However, the structure of the retained intermetallic particles changes gradually from monoclinic to hexagonal during the solution treatments. Some planar defects are also detected in the as-cast and the solution-treated (1 hr) microstructures. These defects have characteristic features of stacking faults.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




Y. M. Zhu et al., "Characterization of Intermetallic Phases and Planar Defects in Mg-Y-Zn Alloys", Materials Science Forum, Vols. 561-565, pp. 151-154, 2007

Online since:

October 2007




[1] I.J. Polmear: Mater. Sci. Tech. Vol. 10 (1994), p.1.

[2] T. Kawabata, K. Matsuda, S. Kamado, Y. Kojima and S. Ikeno: Mater. Sci. Forum Vol. 419- 422 (2003), p.303.

[3] D. H. Ping, K. Hono, Y. Kawamura and A. Inoue: Phil. Mag. Letts. Vol. 82 (2002), p.543.

[4] E. Abe, Y. Kawamura, K. Hayashi and A. Inoue: Acta Mater. Vol. 50 (2002), p.3845.

[5] M. Matsuda, S. Ii, Y. Kawamura, Y. Ikuhara and M. Nishida: Mater. Sci. Eng. A Vol. 393 (2005), p.269.

[6] M. Suzuki, T. Kimura, J. Koike and K. Maruyama: Scripta Mater. Vol. 48 (2003), p.997. 0110=g A1 2011=g.
