Hydrogenation Characteristics of Mg Based Alloy Prepared by Super Lamination Technique

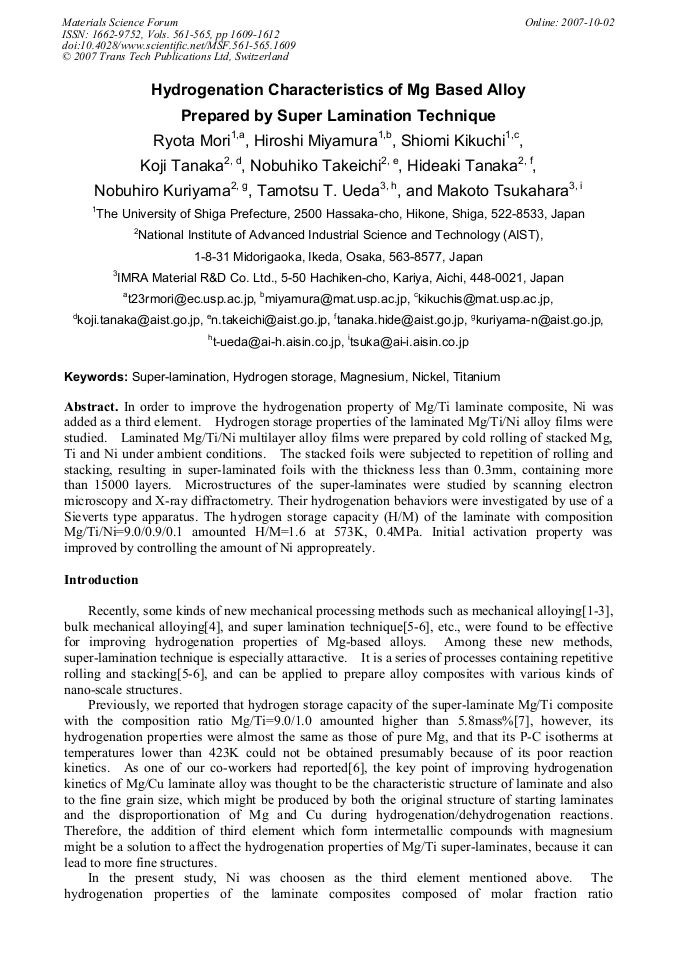

Article Preview

In order to improve the hydrogenation property of Mg/Ti laminate composite, Ni was added as a third element. Hydrogen storage properties of the laminated Mg/Ti/Ni alloy films were studied. Laminated Mg/Ti/Ni multilayer alloy films were prepared by cold rolling of stacked Mg, Ti and Ni under ambient conditions. The stacked foils were subjected to repetition of rolling and stacking, resulting in super-laminated foils with the thickness less than 0.3mm, containing more than 15000 layers. Microstructures of the super-laminates were studied by scanning electron microscopy and X-ray diffractometry. Their hydrogenation behaviors were investigated by use of a Sieverts type apparatus. The hydrogen storage capacity (H/M) of the laminate with composition Mg/Ti/Ni=9.0/0.9/0.1 amounted H/M=1.6 at 573K, 0.4MPa. Initial activation property was improved by controlling the amount of Ni appropreately.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




R. Mori et al., "Hydrogenation Characteristics of Mg Based Alloy Prepared by Super Lamination Technique", Materials Science Forum, Vols. 561-565, pp. 1609-1612, 2007

Online since:

October 2007




[1] L. Zaluski, A. Zalusuka, J.O. Strӧm-Olsen : J. Alloys Compd. 253-254 (1997), 70.

[2] J. Hout, E. Akiba and T. Takada : J. Alloys Compd. 231 (1995), 815.

[3] S. Orimo, H. Fujii and K. Ikeda Acta Mater. 45 (1997) 331.

[4] T. Aizawa, T. Kuji and H. Nakano : J. Alloys Compd. 291 (1999), 248.

[5] T. T. Ueda, M. Tsukahara, Y. Kamiya, and S Kikuchi: Japan Inst. of Metals 2004 Spring Meeting Abstracts, p.170 (in Japanese).

[6] K. Tanaka, N. Takeichi, H. Tanaka, T.T. Ueda, Y. Kamiya, M. Tsukahara, H. Miyamura Tsukahara and S. Kikuchi : Synop. of Autumn Mtg of japan Institute of Metals (2005), 213.

[7] R. Mori, M. Miyamiura, K. Kikuchi, T. T. Ueda, M. Tsukahara, N. Takeichi, K. Tanaka, H Tanaka, N, Kuriyama : Synop. of Autumn Mtg of japan Institute of Metals (2006), 202.
