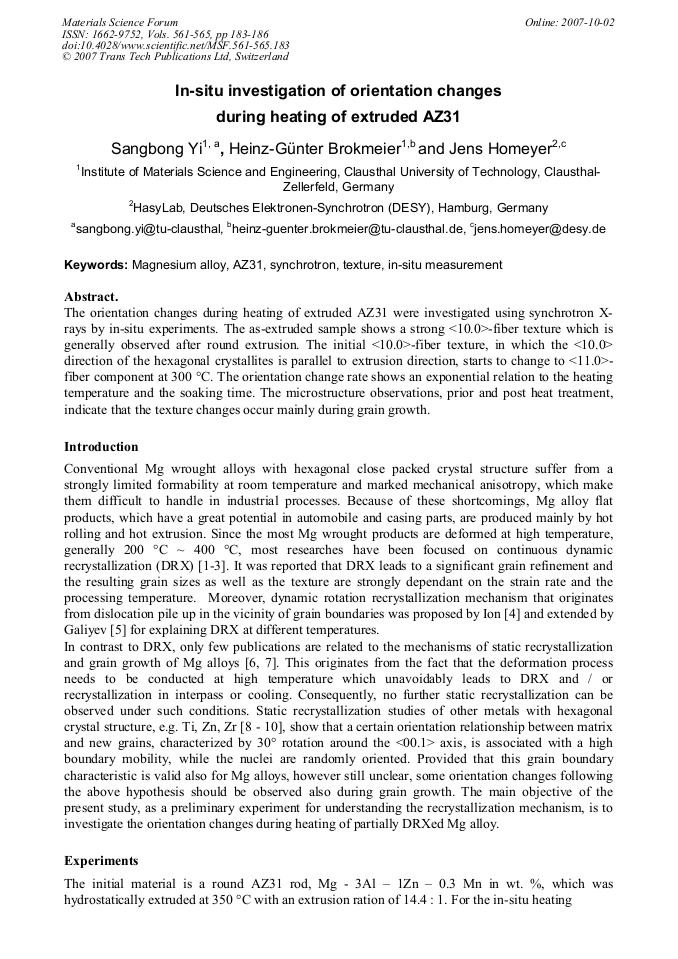

In Situ Investigation of Orientation Changes during Heating of Extruded AZ31


Article Preview

The orientation changes during heating of extruded AZ31 were investigated using synchrotron Xrays by in-situ experiments. The as-extruded sample shows a strong <10.0>-fiber texture which is generally observed after round extrusion. The initial <10.0>-fiber texture, in which the <10.0> direction of the hexagonal crystallites is parallel to extrusion direction, starts to change to <11.0>- fiber component at 300 °C. The orientation change rate shows an exponential relation to the heating temperature and the soaking time. The microstructure observations, prior and post heat treatment, indicate that the texture changes occur mainly during grain growth.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




S. B. Yi et al., "In Situ Investigation of Orientation Changes during Heating of Extruded AZ31", Materials Science Forum, Vols. 561-565, pp. 183-186, 2007

Online since:

October 2007




[1] A. Galiyev, R. Kaibishev: Mater. Sci. Forum Vol. 467-470(2004), 1175.

[2] H. Watanabe, H. Tsutsui, T. Mukai, K. Ishikawa, Y. Okanda, M. Kohzu, K. Higashi: Mater. Tans. Vol. 42 (2001), 1200.

[3] M.T. Perez-Prado, J.A. del Valle, O.A. Runao: Scripta Mater. Vol. 50 (2004), 667.

[4] S.E. Ion, F. J. Humpreys, S.H. White: Acta Metall. Vol. 30 (1982), (1919).

[5] A. Galiyev, R. Kaibyshev, G. Gottstein: Acta Metall. Vol. 49 (2001), 1199.

[6] G.W. Lorimer, L.W.F. Mackenzie, F.J. Humpreys, T. Wilks: Mater. Sci. Forum Vol. 488-489 (2005), 99.

[7] M.T. Perez-Prado, O.A. Runao: Scripta Mater., Vol. 46 (2002), 149.

[8] F.J. Humpreys, M. Hatherly: Recrystallization and related annealing phenomena (Pergamon, 1995).

[9] F. Haessner: Recrystallization of metallic materials (Dr. Riederer-Verlag GmbH, 1978).

[10] N. Dewobroto, N. Bozzolo, F. Wagner: Mater. Sci. Forum Vol. 495-497 (2005), 711.

[11] H. -G. Brokmeier, S.B. Yi, B. Schwebke, J. Homeyer: submitted to Z. Kristallographie (2007).
