3-D FE Simulation and Analysis on Radial-Axial Large Ring Rolling

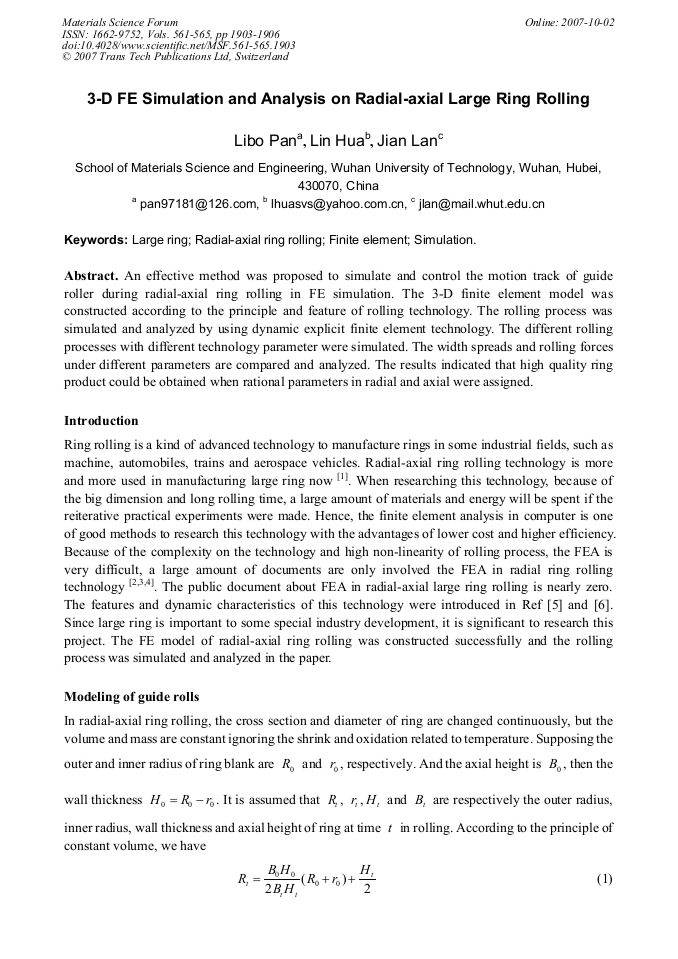

Article Preview

An effective method was proposed to simulate and control the motion track of guide roller during radial-axial ring rolling in FE simulation. The 3-D finite element model was constructed according to the principle and feature of rolling technology. The rolling process was simulated and analyzed by using dynamic explicit finite element technology. The different rolling processes with different technology parameter were simulated. The width spreads and rolling forces under different parameters are compared and analyzed. The results indicated that high quality ring product could be obtained when rational parameters in radial and axial were assigned.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




L. B. Pan et al., "3-D FE Simulation and Analysis on Radial-Axial Large Ring Rolling", Materials Science Forum, Vols. 561-565, pp. 1903-1906, 2007

Online since:

October 2007




[1] L. Hua, X. G. Huang and C. D. Zhu: Ring Rolling Theory and Technology (China Machine Press, China 2001 (In Chinese).

[2] S. G. Xu and J. C. Lian: Int. J. Mech. Sci. Vol. 33(1991), p.393.

[3] Z. M. Hu, I. Pillinger, P. Hartley, et al: J. Mater. Process Technol. Vol. 45(1994), p.143.

[4] M. R. Forouzan, M. Salimi, M. S. Gadala, et al: J. Mater. Process Technol. Vol. 142(2003), p.213.

[5] H. Y. Guan, Zh. G. Chen and T. Song: Forging & Stamping Technology. Vol. 3(1995), p.37 (In Chinese).

[6] H. D. Choi, H. S. Cho and J. S. Lee: J. Eng. Ind. Trans. ASME. Vol. 114(1992), p.188 Fig. 7. Illustration of fishtail dimension Bmax Bmin Fig. 10. Serious width spread Fig. 9. Fold defect Fig. 8. Fishtail dimension curves.
