In Situ Analysis of Phase and Magnetic Transformation Process in Fe-Pt Nanoparticles

Abstract:

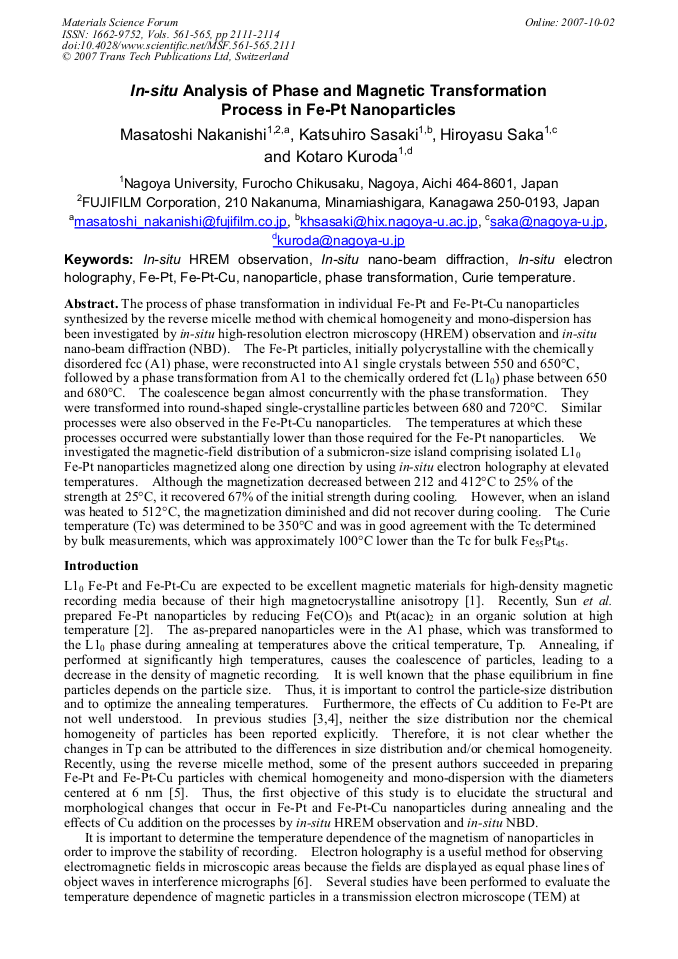

Article Preview

The process of phase transformation in individual Fe-Pt and Fe-Pt-Cu nanoparticles synthesized by the reverse micelle method with chemical homogeneity and mono-dispersion has been investigated by in-situ high-resolution electron microscopy (HREM) observation and in-situ nano-beam diffraction (NBD). The Fe-Pt particles, initially polycrystalline with the chemically disordered fcc (A1) phase, were reconstructed into A1 single crystals between 550 and 650°C, followed by a phase transformation from A1 to the chemically ordered fct (L10) phase between 650 and 680°C. The coalescence began almost concurrently with the phase transformation. They were transformed into round-shaped single-crystalline particles between 680 and 720°C. Similar processes were also observed in the Fe-Pt-Cu nanoparticles. The temperatures at which these processes occurred were substantially lower than those required for the Fe-Pt nanoparticles. We investigated the magnetic-field distribution of a submicron-size island comprising isolated L10 Fe-Pt nanoparticles magnetized along one direction by using in-situ electron holography at elevated temperatures. Although the magnetization decreased between 212 and 412°C to 25% of the strength at 25°C, it recovered 67% of the initial strength during cooling. However, when an island was heated to 512°C, the magnetization diminished and did not recover during cooling. The Curie temperature (Tc) was determined to be 350°C and was in good agreement with the Tc determined by bulk measurements, which was approximately 100°C lower than the Tc for bulk Fe55Pt45.

Info:

Periodical:

Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee

Pages:

2111-2114

Citation:

M. Nakanishi et al., "In Situ Analysis of Phase and Magnetic Transformation Process in Fe-Pt Nanoparticles", Materials Science Forum, Vols. 561-565, pp. 2111-2114, 2007

Online since:

October 2007

Export:

Price:

$38.00

[1] D. Weller and M.F. Doerner: A. Rev. Mater. Sci. Vol. 30 (2000), p.611.

[2] S. Sun, C.B. Murray, D. Weller, L. Folks and A. Moser: Science Vol. 287 (2000), p. (1989).

[3] Y.K. Takahashi, M. Ohnuma and K. Hono: J. Magn. Magn. Mater. Vol. 246 (2002), p.259.

[4] W. Harrell, D.E. Nikles, S. Kang, X. Sun and Z. Jia: J. Magn. Soc. Japan Vol. 28 (2004), p.847.

[5] Y. Hattori, K. Waki, K. Ogawa and G. Furusawa: Trans. Magn. Soc. Japan Vol. 4 (2004), p.85.

[6] T. Hirayama: Mater. Charact. Vol. 42 (1999), p.193.

[7] E. Bonetti, L.D. Bianco, L. Pasquini and G. Matteucci: J. Appl. Phys. Vol. 90 (2001), p.4152.

[8] T. Kamino and H. Saka: Microsc. Microanal. Microstr. Vol. 3 (1997), p.393.

[9] J. Thiele, K. Coffey, M. Toney, J. Hedstrom and A. Kellock: J. Appl. Phys. Vol. 91 (2002).

[10] B. Sadeh: Nihon Oyou Jiki Gakkaishi Vol. 24 (2000), p.511. Fig. 3 Temperature dependence of the maximum phase shifts across the center of the islands.

[1] [2] [3] [4] [5] [6] [7] 0 200 400 600 Temperature, T/°C Phase shift /2 π Heating Cooling.

[1] [2] [3] [4] [5] [6] [7] 0 200 400 600 Temperature, T/°C Phase shift /2 π Heating Cooling -0. 1.

0. 1 0. 2 0. 3 0. 4 0. 5 0. 6 0 200 400 600 Temperature, T/°C Phase shift /2 π Heating Cooling -0. 1.

0. 1 0. 2 0. 3 0. 4 0. 5 0. 6 0 200 400 600 Temperature, T/°C Phase shift /2 π Heating Cooling (a) (b) (a) (b) (c) (d) (e).

[1] 1 1 1 µµµµmmmm , p.6595.
