Creep Damage Evaluation by Hardness in Advanced High Cr Ferritic Steels

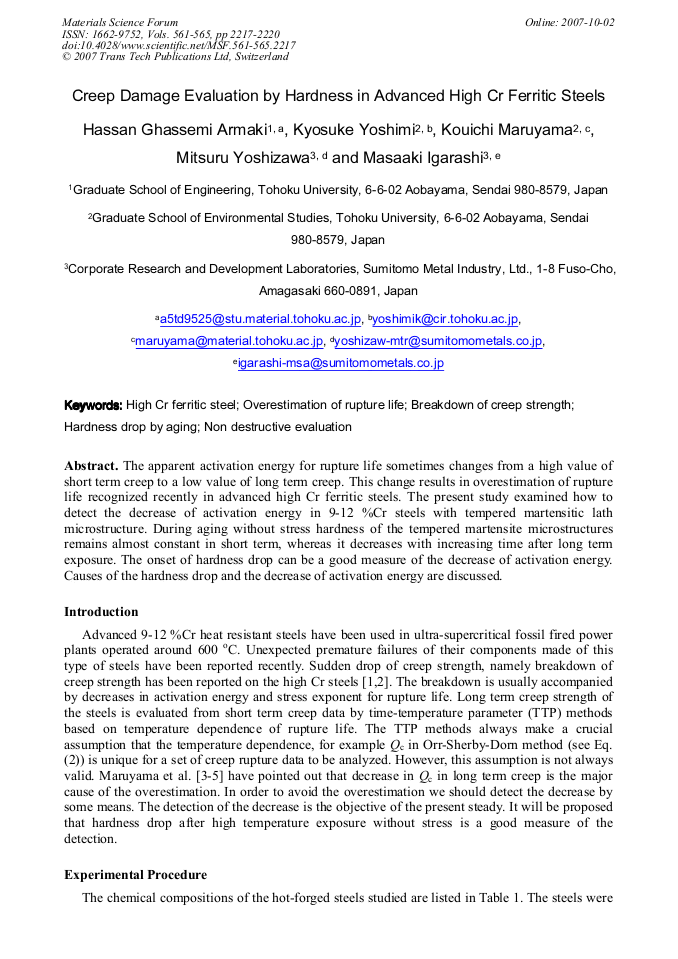

Article Preview

The apparent activation energy for rupture life sometimes changes from a high value of short term creep to a low value of long term creep. This change results in overestimation of rupture life recognized recently in advanced high Cr ferritic steels. The present study examined how to detect the decrease of activation energy in 9-12 %Cr steels with tempered martensitic lath microstructure. During aging without stress hardness of the tempered martensite microstructures remains almost constant in short term, whereas it decreases with increasing time after long term exposure. The onset of hardness drop can be a good measure of the decrease of activation energy. Causes of the hardness drop and the decrease of activation energy are discussed.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




H. G. Armaki et al., "Creep Damage Evaluation by Hardness in Advanced High Cr Ferritic Steels", Materials Science Forum, Vols. 561-565, pp. 2217-2220, 2007

Online since:

October 2007




[1] H. Kushima, K. Kimura and F. Abe: Tetsu-to-Hagane Vol. 85 (1999), p.841.

[2] K. Maruyama, K. Sawada and J. Koike: ISIJ Int. Vol. 41 (2001), p.641.

[3] K. Maruyama, E. Baba, K. Yokokawa, H. Kushima and K. Yagi: Tetsu-to-Hagane Vol. 80 (1994), p.336.

[4] K. Maruyama, H. Ghassemi Armaki and K. Yoshimi: Int. J. Press. Vess. Pip. Vol. 84 (2007), p.171.

[5] K. Maruyama and K. Yoshimi: Trans. ASME, J. Press. Vess. Technol. Vol. 129 (2007), in press.
