Research on Solution and Aging Treatment of Mg-7Zn-3Al Alloy

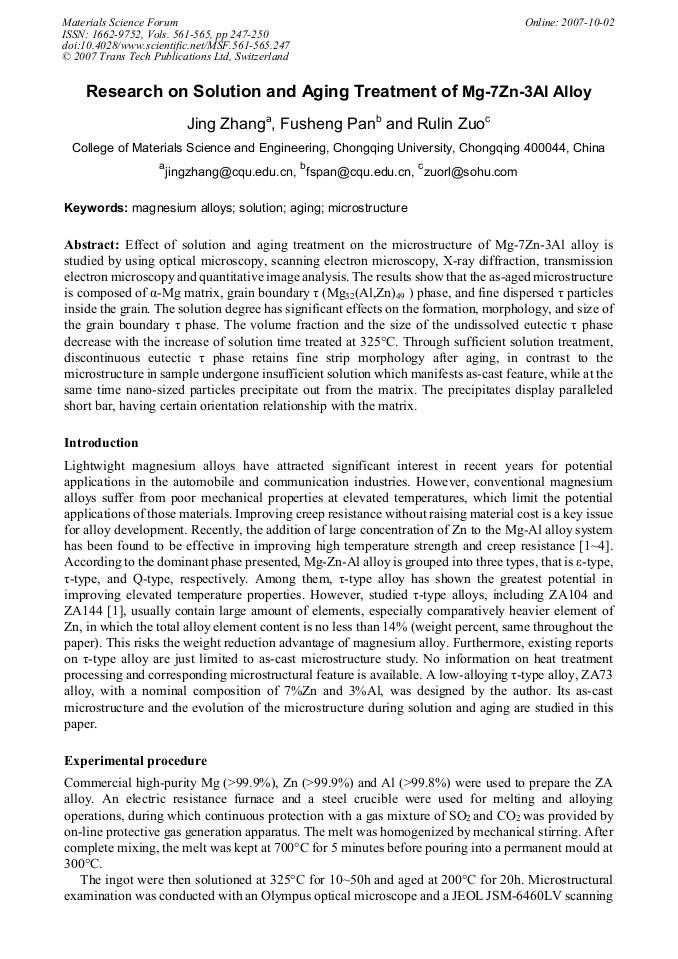

Article Preview

Effect of solution and aging treatment on the microstructure of Mg-7Zn-3Al alloy is studied by using optical microscopy, scanning electron microscopy, X-ray diffraction, transmission electron microscopy and quantitative image analysis. The results show that the as-aged microstructure is composed of α-Mg matrix, grain boundary τ (Mg32(Al,Zn)49 ) phase, and fine dispersed τ particles inside the grain. The solution degree has significant effects on the formation, morphology, and size of the grain boundary τ phase. The volume fraction and the size of the undissolved eutectic τ phase decrease with the increase of solution time treated at 325°C. Through sufficient solution treatment, discontinuous eutectic τ phase retains fine strip morphology after aging, in contrast to the microstructure in sample undergone insufficient solution which manifests as-cast feature, while at the same time nano-sized particles precipitate out from the matrix. The precipitates display paralleled short bar, having certain orientation relationship with the matrix.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




J. Zhang et al., "Research on Solution and Aging Treatment of Mg-7Zn-3Al Alloy", Materials Science Forum, Vols. 561-565, pp. 247-250, 2007

Online since:

October 2007




[1] Zhang Z, Tremblay R, Dube D, Couture A. Canadian Metallurgical Quarterly, 2000, 39(4): 503-512.

[2] Mendis C, Bourgeois L, Muddle B, Nie J F. Magnesium Technology 2003, 2003 TMS Annual Meeting, San Diego, CA, USA, 2-6 March 2003. 183-188.

[3] Vogel M, Kraft O, Arzt E. Scripta Materialia, 2003, 48: 985-990.

[4] Anyanwu I A, Kamado S, Honda T, etc. Materials Science Forum, 2000, 350-351: 73-78.

[5] G. Moreau, J. A. Cornet, D. Calais, J Nucl Mater. 38(1971)197-202.
