Hydrothermal Synthesis of Bi1.5ZnNb1.5O7 Nanopowders

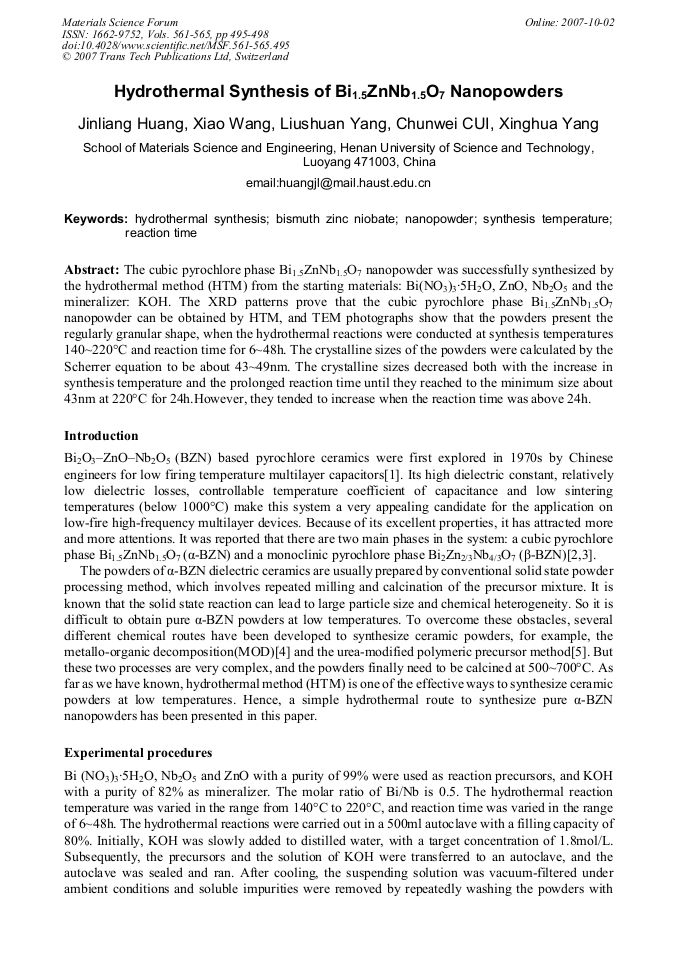

Article Preview

The cubic pyrochlore phase Bi1.5ZnNb1.5O7 nanopowder was successfully synthesized by the hydrothermal method (HTM) from the starting materials: Bi(NO3)3·5H2O, ZnO, Nb2O5 and the mineralizer: KOH. The XRD patterns prove that the cubic pyrochlore phase Bi1.5ZnNb1.5O7 nanopowder can be obtained by HTM, and TEM photographs show that the powders present the regularly granular shape, when the hydrothermal reactions were conducted at synthesis temperatures 140~220°C and reaction time for 6~48h. The crystalline sizes of the powders were calculated by the Scherrer equation to be about 43~49nm. The crystalline sizes decreased both with the increase in synthesis temperature and the prolonged reaction time until they reached to the minimum size about 43nm at 220°C for 24h.However, they tended to increase when the reaction time was above 24h.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




J. L. Huang et al., "Hydrothermal Synthesis of Bi1.5ZnNb1.5O7 Nanopowders", Materials Science Forum, Vols. 561-565, pp. 495-498, 2007

Online since:

October 2007




[1] Z.P. Wang: Electr. Compon. Mater., Vol. 1 (1979), p.11.

[2] W. Xiaoli., W. Hong, Y. Xi: J. Am. Ceram. Soc., Vol. 80 (1997), p.2745.

[3] L. Donhang, L. Yi, Q. Shui, et al.: J. Am. Ceram. Soc., Vol. 76 (1993), p.2129.

[4] W. Hong, R. Elsebrock, T. Schneller: Solid State Commun., Vol. 132 (2004), p.481.

[5] S.A. da Silva, S. M. Zanetti: Mater. Chem. and Phys., Vol. 1 (2005), p.418.

[6] K.P. Klug, in: X-ray Diffraction Procedures, edtied by Wiley, New York, (1974) Fig. 4 TEM photographs of powders prepared by hydrothermal method at 220°C with different reaction time: (a) 6h, (b) 48h.

Fetching data from Crossref.
This may take some time to load.
