Microstructural Features of a Ultra Low Carbon High Strength Acicular Ferrite Steel Thick Plate

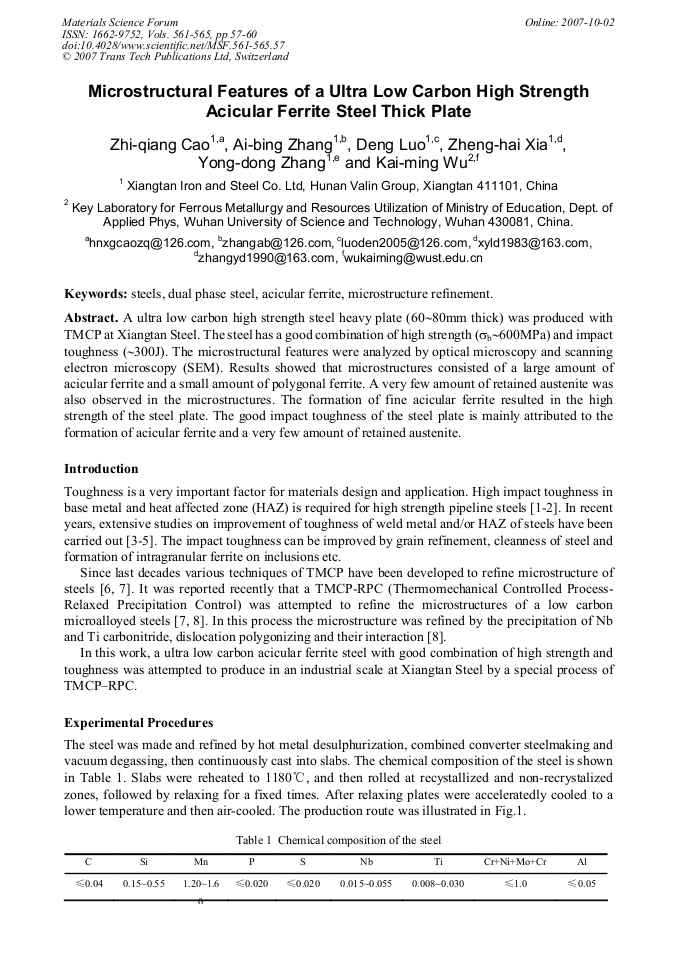

Article Preview

A ultra low carbon high strength steel heavy plate (60∼80mm thick) was produced with TMCP at Xiangtan Steel. The steel has a good combination of high strength (σb∼600MPa) and impact toughness (∼300J). The microstructural features were analyzed by optical microscopy and scanning electron microscopy (SEM). Results showed that microstructures consisted of a large amount of acicular ferrite and a small amount of polygonal ferrite. A very few amount of retained austenite was also observed in the microstructures. The formation of fine acicular ferrite resulted in the high strength of the steel plate. The good impact toughness of the steel plate is mainly attributed to the formation of acicular ferrite and a very few amount of retained austenite.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




Z. Q. Cao et al., "Microstructural Features of a Ultra Low Carbon High Strength Acicular Ferrite Steel Thick Plate", Materials Science Forum, Vols. 561-565, pp. 57-60, 2007

Online since:

October 2007




[1] B. Hwang, Y. G. Kim, S. Lee, Y. M. Kim, N. J. Kim, and J. Y. Yoo: Metall Mater Trans 36A (2005), p.2107.

[2] F. R. Xiao, B. Liao, Y.Y. Shan, G. Y. Qiao, Y. Zhong, C. Zhang and K. Yang: Mater Sci Eng A431(2006), p.41.

[3] Y. Tomita, N. Saito, T. Tsuzui, Y. Tokunaga, K. Okamoto: ISIJ Int 34(1994), p.829.

[4] M Enomoto: Met Mater 4(1998), p.115.

[5] K. M. Wu, Y. Inagawa and M. Enomoto: Mater Char 52(2004), p.121.

[6] T. Maki: Tetsu-to-Hagané, 81(1995), p. N547.

[7] S. W. Yang, X. M. Wang, C. J. Shang, X. L. He and Y. Yuan: J. Univ. Sci. Tech. Beijing, 8(2001), p.214.

[8] X. M. Wang, X. L. He, S. W. Yang, C. J. Shang and H. B. Wu: ISIJ Int., 42(2002), p.1553.
