Spark Plasma Sintering of βSiAlON-cBN Composite


Article Preview

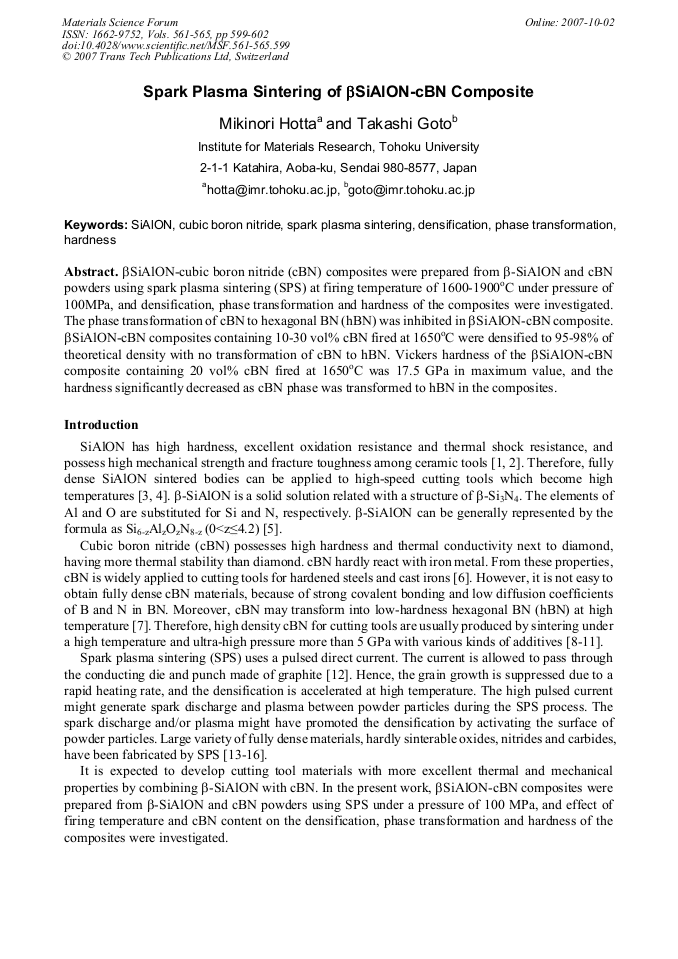

βSiAlON-cubic boron nitride (cBN) composites were prepared from β-SiAlON and cBN powders using spark plasma sintering (SPS) at firing temperature of 1600-1900oC under pressure of 100MPa, and densification, phase transformation and hardness of the composites were investigated. The phase transformation of cBN to hexagonal BN (hBN) was inhibited in βSiAlON-cBN composite. βSiAlON-cBN composites containing 10-30 vol% cBN fired at 1650oC were densified to 95-98% of theoretical density with no transformation of cBN to hBN. Vickers hardness of the βSiAlON-cBN composite containing 20 vol% cBN fired at 1650oC was 17.5 GPa in maximum value, and the hardness significantly decreased as cBN phase was transformed to hBN in the composites.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




M. Hotta and T. Goto, "Spark Plasma Sintering of βSiAlON-cBN Composite", Materials Science Forum, Vols. 561-565, pp. 599-602, 2007

Online since:

October 2007




[1] T. Ekstrom and M. Nygren: J. Am. Ceram. Soc., Vol. 75 (1992), p.259.

[2] K. H. Jack: Met. Technol., Vol. 9 (1982), p.297.

[3] J. Aucote and S. R. Foster: Mater. Sci. Technol., Vol. 2 (1986), p.700.

[4] T. N. Blackman: The Foundryman, Vol. 83 (1990), p.17.

[5] K. H. Jack: J. Mater. Sci., Vol. 11 (1976), p.1135.

[6] R. H. Wentorf, R. C. DeVries and F. P. Bundy: Science, Vol. 208 (1980), p.873.

[7] F. P. Bundy and R. H. Wentorf: J. Chem. Phys., Vol. 38 (1963), p.1144.

[8] X. Z. Rong, T. Tsurumi, O. Fukunaga and T. Yano: Diam. Relat. Mater., Vol. 11 (2002), p.280.

[9] E. Benko, J. S. Stanislaw, B. Krolicka, A. Wyczesany and T. Barr: Diam. Relat. Mater., Vol. 8 (1999), p.1838.

[10] P. Klimczyk, E. Benko, K. Lawniczak-Jablonska, E. Piskorska, M. Heinonen, A. Ormaniec, W. Gorczynska-Zawislan and V. S. Urbanovich: J. Alloy Compd., Vol. 382 (2004), p.195.

DOI: 10.1016/j.jallcom.2004.04.140

[11] F. Ueda, M. Yageta and I. Tajima: J. Hard Mater., Vol. 2 (1991), p.233.

[12] M. Tokita: J. Soc. Powder Technol., Jpn., Vol. 30 (1993), p.790.

[13] J. Tatami, M. Iguchi, M. Hotta, C. Zhang, K. Komeya, T. Meguro, M. Omori, T. Hirai, M. E. Brito and Y. -B. Cheng: Key Engineering Materials, Vol. 237 (2003), p.105.

DOI: 10.4028/

[14] Y. Zhou, K. Hirao, M. Toriyama and H. Tanaka: J. Am. Ceram. Soc., Vol. 83 (2000), p.654.

[15] Z. Shen, M. Johnsson, Z. Zhao and M. Nygren: J. Am. Ceram. Soc., Vol. 85 (2002), p. (1921).

[16] M. Suganuma, Y. Kitagawa, S. Wada and N. Murayama: J. Am. Ceram. Soc., Vol. 86 (2003), p.387.

Fetching data from Crossref.
This may take some time to load.
