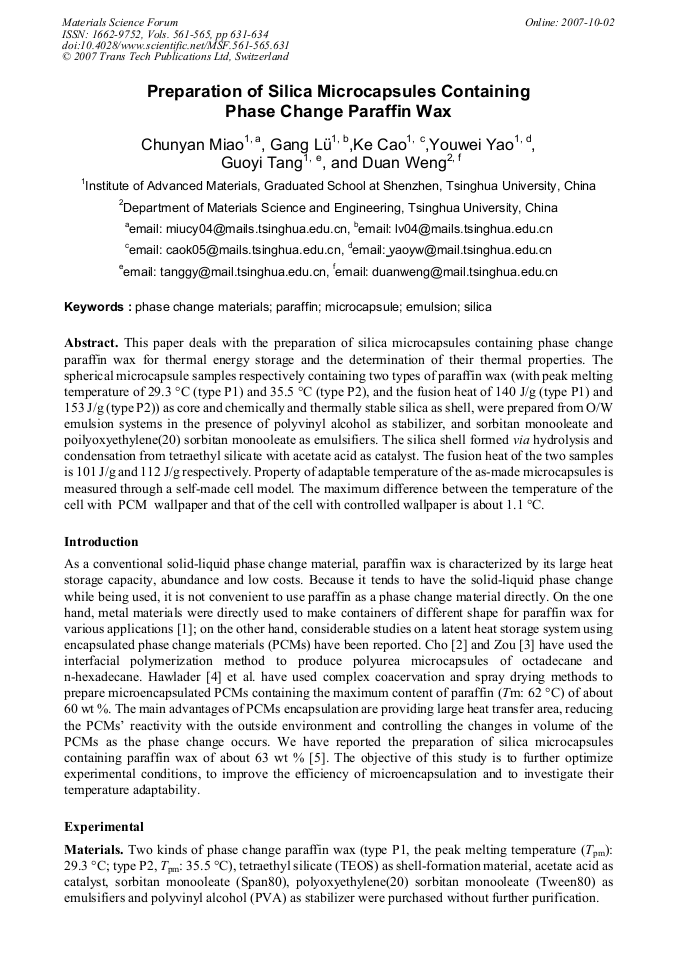

Preparation of Silica Microcapsules Containing Phase Change Paraffin Wax


Article Preview

This paper deals with the preparation of silica microcapsules containing phase change paraffin wax for thermal energy storage and the determination of their thermal properties. The spherical microcapsule samples respectively containing two types of paraffin wax (with peak melting temperature of 29.3 °C (type P1) and 35.5 °C (type P2), and the fusion heat of 140 J/g (type P1) and 153 J/g (type P2)) as core and chemically and thermally stable silica as shell, were prepared from O/W emulsion systems in the presence of polyvinyl alcohol as stabilizer, and sorbitan monooleate and poilyoxyethylene(20) sorbitan monooleate as emulsifiers. The silica shell formed via hydrolysis and condensation from tetraethyl silicate with acetate acid as catalyst. The fusion heat of the two samples is 101 J/g and 112 J/g respectively. Property of adaptable temperature of the as-made microcapsules is measured through a self-made cell model. The maximum difference between the temperature of the cell with PCM wallpaper and that of the cell with controlled wallpaper is about 1.1 °C.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




C. Y. Miao et al., "Preparation of Silica Microcapsules Containing Phase Change Paraffin Wax", Materials Science Forum, Vols. 561-565, pp. 631-634, 2007

Online since:

October 2007




[1] E. Hisham, A. Imad, A.S. Mohammad and A.H. Khalida: Energy Convers. Manage. Vol. 47 (2006), p.211.

[2] J.S. Cho, A. Kwon and C.G. Cho: Colloid Polym. Sci. Vol. 280 (2002), p.260.

[3] G.L. Zou, X.Z. Lan, Z.C. Tan and L.X. Sun: Acta Physico-Chimica Sinica, Vol. 20 (2004), p.90.

[4] M.N. A. Hawlader, M.S. Uddin and M.M. Khin: Appl. Energ. Vol. 74 (2003), p.195.

[5] G. Lü, C.Y. Miao, Y.W. Yao, G.Y. Tang and D. Weng. Submitted to Journal of Chemical Engineering of Japan (2006).

[6] R.K. Iler: The Chemistry of Silica, Introduction, John Wiley & Sons, Inc. (1979).

[7] S. Schacht, Q. Huo, G.D. Stucky and F. Schüth: Science Vol. 273 (1996), p.768.

[8] A. Sari: Energy Convers. Manage. Vol. 45 (2004), p. (2033).

[9] Y.X. Liu, C.S. Zhao and L. Han: Paper Science & Technology Vol. 23 (2004), p.36 (in Chinese).
