Study on In Situ Synthesized Titanium Matrix Composites

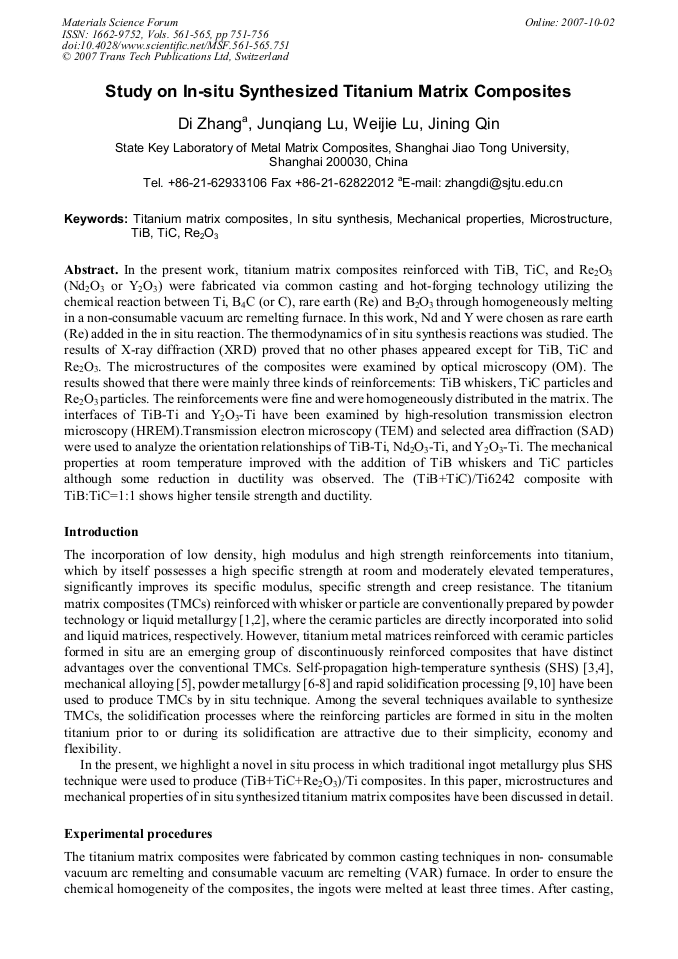

Article Preview

In the present work, titanium matrix composites reinforced with TiB, TiC, and Re2O3 (Nd2O3 or Y2O3) were fabricated via common casting and hot-forging technology utilizing the chemical reaction between Ti, B4C (or C), rare earth (Re) and B2O3 through homogeneously melting in a non-consumable vacuum arc remelting furnace. In this work, Nd and Y were chosen as rare earth (Re) added in the in situ reaction. The thermodynamics of in situ synthesis reactions was studied. The results of X-ray diffraction (XRD) proved that no other phases appeared except for TiB, TiC and Re2O3. The microstructures of the composites were examined by optical microscopy (OM). The results showed that there were mainly three kinds of reinforcements: TiB whiskers, TiC particles and Re2O3 particles. The reinforcements were fine and were homogeneously distributed in the matrix. The interfaces of TiB-Ti and Y2O3-Ti have been examined by high-resolution transmission electron microscopy (HREM).Transmission electron microscopy (TEM) and selected area diffraction (SAD) were used to analyze the orientation relationships of TiB-Ti, Nd2O3-Ti, and Y2O3-Ti. The mechanical properties at room temperature improved with the addition of TiB whiskers and TiC particles although some reduction in ductility was observed. The (TiB+TiC)/Ti6242 composite with TiB:TiC=1:1 shows higher tensile strength and ductility.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




D. Zhang et al., "Study on In Situ Synthesized Titanium Matrix Composites", Materials Science Forum, Vols. 561-565, pp. 751-756, 2007

Online since:

October 2007




[1] S. Ranganath: J. Mater. Sci. Vol. 32 (1997), p.1.

[2] S.C. Tjong, Z.Y. Ma: Mater. Sci. Eng. R. Vol. 29 (1997), p.49.

[3] H.T. Tsang, C.G. Chao and C.Y. Ma: Scripta Metall. Mater. Vol. 37 (1997), p.1359.

[4] S. Rangnath, M. Vijayakumar and J. Subrahmanyam: Mater. Sci. Eng. A Vol. 149 (1992), p.253.

[5] Teruo Takahashi: J. Japan. Inst. Metals (in Japanese) Vol. 59 (1995), p.244.

[6] J.Q. Jiang, T.S. Lim and Y.J. Kim, et al: Mater. Sci. Technol. Vol. 12 (1996), p.362.

[7] T. Saito, H. Takamiya and T. Furuta: Mater. Sci. Eng. A. Vol. 243(1998), p.273.

[8] M. Kobayashi, K. Funami and S. Suzuki, et al: Mater. Sci. Eng. A Vol. 243(1998), p.279.

[9] W.O. Soboyejo, R.J. Lederich and S.M.L. Sastry: Acta Metall. Mater Vol. 42(1994), p.2579.

[10] S. Dubey, R.J. Lederich and W.O. Soboyejo: Metall. Mater. Trans. A Vol. 28(1997), p. (2037).
