Distortion Analysis of Aluminum Alloy for Sheet Metal Forming after Solution Treatment

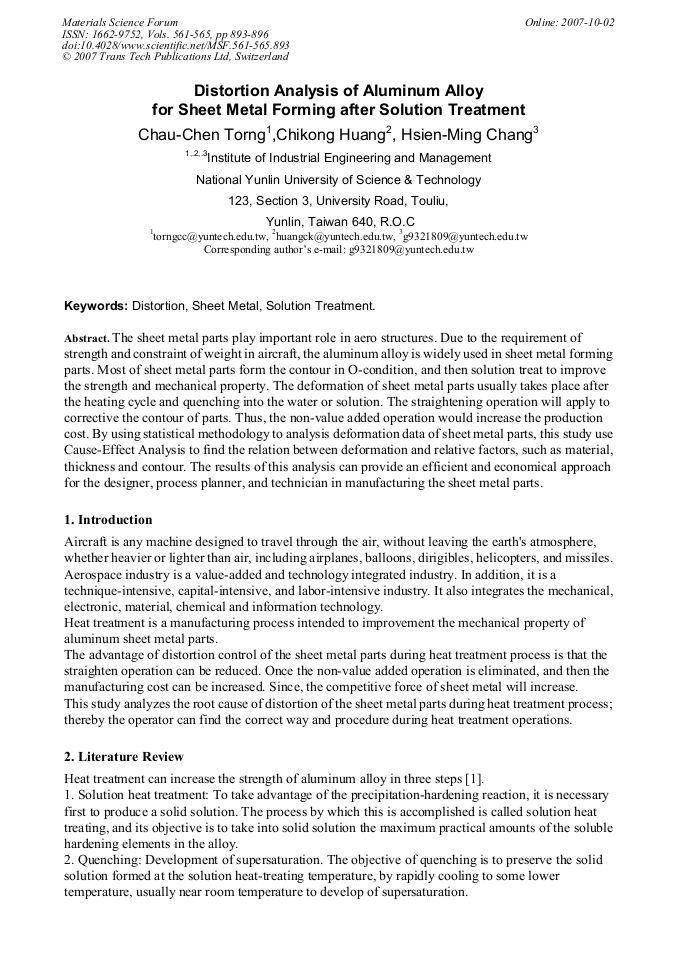

Article Preview

The sheet metal parts play important role in aero structures. Due to the requirement of strength and constraint of weight in aircraft, the aluminum alloy is widely used in sheet metal forming parts. Most of sheet metal parts form the contour in O-condition, and then solution treat to improve the strength and mechanical property. The deformation of sheet metal parts usually takes place after the heating cycle and quenching into the water or solution. The straightening operation will apply to corrective the contour of parts. Thus, the non-value added operation would increase the production cost. By using statistical methodology to analysis deformation data of sheet metal parts, this study use Cause-Effect Analysis to find the relation between deformation and relative factors, such as material, thickness and contour. The results of this analysis can provide an efficient and economical approach for the designer, process planner, and technician in manufacturing the sheet metal parts.



Materials Science Forum (Volumes 561-565)

Main Theme:

Edited by:

Young Won Chang, Nack J. Kim and Chong Soo Lee




C. C. Torng et al., "Distortion Analysis of Aluminum Alloy for Sheet Metal Forming after Solution Treatment", Materials Science Forum, Vols. 561-565, pp. 893-896, 2007

Online since:

October 2007




[1] ASM HANDBOOK, ASM International Handbook Committee, Tenth Edition, Volume 3 Heat Treating.

[2] W.H. Cubberly, Properties and selection: nonferrous alloys and pure metals, in Metals Handbook, 9th ed American Society for Metals, Metals Park, OH vol. 22. p.674(1981).

[3] Daren Sun, Xi-chen Sun, Derek O Northwood, Thermoelectric Power Characterization of a 2024 Aluminum Alloy During Solution Treatment and Aging.

DOI: https://doi.org/10.1016/1044-5803(96)00002-2
