Reconsideration of the So-Called von Neumann Paradox in the Reflection of a Shock Wave over a Wedge

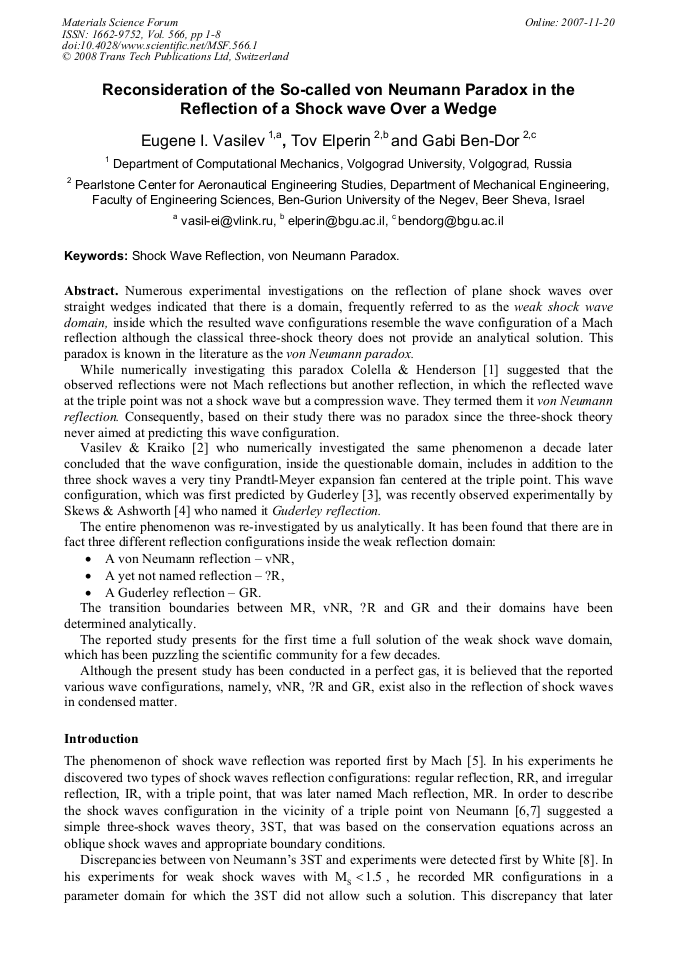

Article Preview

Numerous experimental investigations on the reflection of plane shock waves over straight wedges indicated that there is a domain, frequently referred to as the weak shock wave domain, inside which the resulted wave configurations resemble the wave configuration of a Mach reflection although the classical three-shock theory does not provide an analytical solution. This paradox is known in the literature as the von Neumann paradox. While numerically investigating this paradox Colella & Henderson [1] suggested that the observed reflections were not Mach reflections but another reflection, in which the reflected wave at the triple point was not a shock wave but a compression wave. They termed them it von Neumann reflection. Consequently, based on their study there was no paradox since the three-shock theory never aimed at predicting this wave configuration. Vasilev & Kraiko [2] who numerically investigated the same phenomenon a decade later concluded that the wave configuration, inside the questionable domain, includes in addition to the three shock waves a very tiny Prandtl-Meyer expansion fan centered at the triple point. This wave configuration, which was first predicted by Guderley [3], was recently observed experimentally by Skews & Ashworth [4] who named it Guderley reflection. The entire phenomenon was re-investigated by us analytically. It has been found that there are in fact three different reflection configurations inside the weak reflection domain: • A von Neumann reflection – vNR, • A yet not named reflection – ?R, • A Guderley reflection – GR. The transition boundaries between MR, vNR, ?R and GR and their domains have been determined analytically. The reported study presents for the first time a full solution of the weak shock wave domain, which has been puzzling the scientific community for a few decades. Although the present study has been conducted in a perfect gas, it is believed that the reported various wave configurations, namely, vNR, ?R and GR, exist also in the reflection of shock waves in condensed matter.



Edited by:

S. Itoh and K. Hokamoto




E. I. Vasilev et al., "Reconsideration of the So-Called von Neumann Paradox in the Reflection of a Shock Wave over a Wedge", Materials Science Forum, Vol. 566, pp. 1-8, 2008

Online since:

November 2007




[1] P. Colella and L.F. Henderson: J. Fluid Mech. Vol. 213 (1990) p.71.

[2] E.I. Vasilev and A.N. Kraiko: Comput. Math. Math. Phys. Vol. 39(8) (1999) p.1335.

[3] K.G. Guderley: Considerations on the structure of mixed subsonic-supersonic flow patterns. HQ Air Materiel Command, Wright Field, Dayton, Ohio., Tech. Report F-TR-2168-ND(1947).

[4] B.W. Skews and J.T. Ashworth: J. Fluid Mech. Vol. 542 (2005) p.105.

[5] E. Mach: Vienna Acad. Sitzungsberichte 78 (1878) p.819.

[6] J. Von Neumann: Oblique reflection of shocks, Explosive Research. Rep. 12, Navy Dept., Bureau of Ordinance, Washington, DC, USA (1943a).

[7] J. Von Neumann: Refraction, intersection and reflection of shock waves. NAVORD Rep. 203- 45, Navy Dept., Bureau of Ordinance, Washington, DC, USA (1943b).

[8] D.R. White: An experimental survey of the Mach reflection of shock waves. Princeton Univ., Dept. Phys., Tech. Rep. II-10, Princeton, N.J., USA. See also Proc. 2nd Midwest Conf. Fluid Mech., Ohio State Univ., 3, (1952) p.253.

[9] M. Olim and J.M. Dewey: Shock Waves 2 (1992) p.167.

[10] E.I. Vasilev: Proc. ECCOMAS 4 th Comput. Fluid Dyn. Conf. Athens, Greece, 1(1), (1998) p.520.

[11] E.I. Vasilev: Fluid Dyn. Vol. 34(3) (1999), p.421.

[12] R. Kawamura and H. Saito: J. Phys. Soc. Japan, Vol. 11 (1956) p.584.

[13] G. Ben-Dor: Shock Wave Reflection Phenomena. (Springer Verlag, New York, 1991).
