A DTA Study on HVOF Thermally Sprayed WC–M Coatings

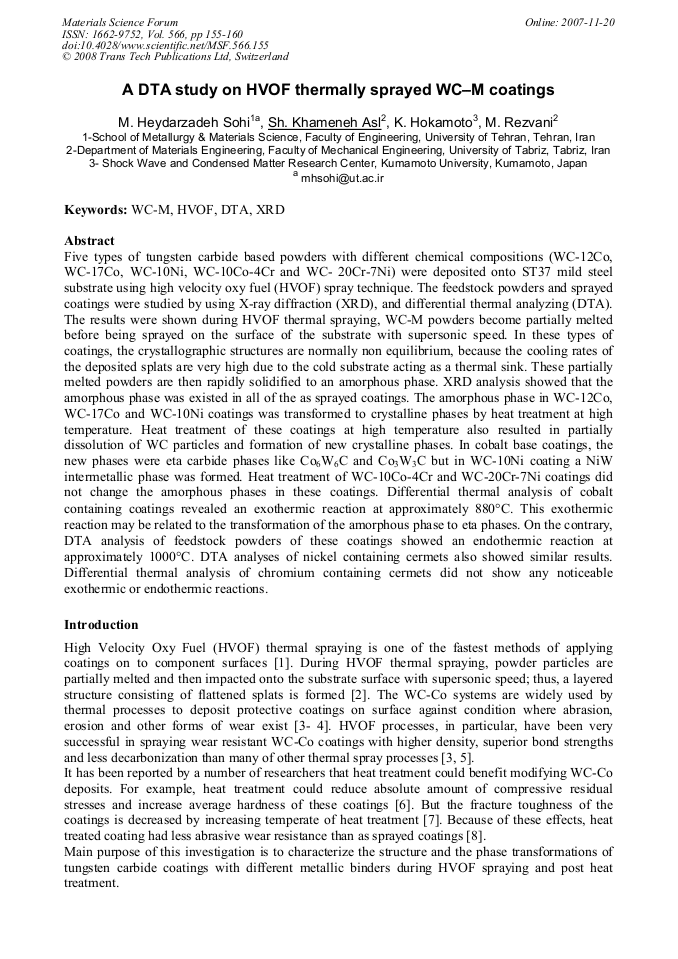

Article Preview

Five types of tungsten carbide based powders with different chemical compositions (WC-12Co, WC-17Co, WC-10Ni, WC-10Co-4Cr and WC- 20Cr-7Ni) were deposited onto ST37 mild steel substrate using high velocity oxy fuel (HVOF) spray technique. The feedstock powders and sprayed coatings were studied by using X-ray diffraction (XRD), and differential thermal analyzing (DTA). The results were shown during HVOF thermal spraying, WC-M powders become partially melted before being sprayed on the surface of the substrate with supersonic speed. In these types of coatings, the crystallographic structures are normally non equilibrium, because the cooling rates of the deposited splats are very high due to the cold substrate acting as a thermal sink. These partially melted powders are then rapidly solidified to an amorphous phase. XRD analysis showed that the amorphous phase was existed in all of the as sprayed coatings. The amorphous phase in WC-12Co, WC-17Co and WC-10Ni coatings was transformed to crystalline phases by heat treatment at high temperature. Heat treatment of these coatings at high temperature also resulted in partially dissolution of WC particles and formation of new crystalline phases. In cobalt base coatings, the new phases were eta carbide phases like Co6W6C and Co3W3C but in WC-10Ni coating a NiW intermetallic phase was formed. Heat treatment of WC-10Co-4Cr and WC-20Cr-7Ni coatings did not change the amorphous phases in these coatings. Differential thermal analysis of cobalt containing coatings revealed an exothermic reaction at approximately 880°C. This exothermic reaction may be related to the transformation of the amorphous phase to eta phases. On the contrary, DTA analysis of feedstock powders of these coatings showed an endothermic reaction at approximately 1000°C. DTA analyses of nickel containing cermets also showed similar results. Differential thermal analysis of chromium containing cermets did not show any noticeable exothermic or endothermic reactions.



Edited by:

S. Itoh and K. Hokamoto




M. H. Sohi et al., "A DTA Study on HVOF Thermally Sprayed WC–M Coatings", Materials Science Forum, Vol. 566, pp. 155-160, 2008

Online since:

November 2007




[1] V. V. Sobolev, J. M. Guilemany and J. Nutting: High Velocity Oxy-Fuel Spraying, (Woodhead Publishing Limited, Cambridge, England, 2004).

[2] Sh. Khameneh Asl: Study of the Effect of the Alloying Element and Heat Treatment on the Properties of Thermally Sprayed WC-M Coatings, (Ph.D. Thesis, University of Tehran, Iran, 2005).

[3] S. DePalo, M. Mohanty, H. Marc-Chartes and M. Dorfman, ITSC 2000, Montreal, Ed. C. C. Berndt, ASM Intl.

[4] R. J. K. Wood, B. G. Mellor and M. L. Binfield, Wear Vol. 211 (1997) pp.70-83.

[5] Q. Yang, T. Senda and A. Ohmorib, Wear, Vol. 254 (2003) pp.23-34.

[6] Sh. Khameneh Asl, M. Heydarzadeh Sohi, S. M. M. Hadavi, Materials Science Forum, Vol. 465-466 (2004) pp.427-466.

DOI: https://doi.org/10.4028/www.scientific.net/msf.465-466.427

[7] Sh. Khameneh Asl, M. Heydarzadeh Sohi, Materials Science Forum, Vol. 465-466 (2004) pp.301-306.

DOI: https://doi.org/10.4028/www.scientific.net/msf.465-466.301

[8] Sh. Khameneh Asl, M. Heydarzadeh Sohi, K. Hokamoto, M. Uemura, Wear Vol. 260 (2006) 1203-1208.

DOI: https://doi.org/10.1016/j.wear.2005.07.013

[9] H. Lia, K.A. Khora, L.G. Yua, P. Cheang, Surface & Coatings Technology, vol. 194 (2005) pp.96-102.

[10] W. J. Lenling, M. F. Smith and J. A. Henfling, Proceeding of the Third National Thermal Spray Conference, Long Beach, CA, USA, (1990) pp.227-232.

[11] J. S. Babai, Ph.D. Dissertation, School of Mechanical and Manufacturing Engineering in Dublin City University, (2003).

[12] C.J. Li, A. Ohmori, Y. Harada, Journal of Thermal Spray Technology, Vol. 5, No. 1, (1996) pp.69-73.

[13] J. E. Nerz, B. A. Kushner, Jr. and A. J. Rotolico, ASM International, Proceeding of the Fourth National Thermal Spray Conference, Pittsburgh, PA, USA, (1991), pp.115-120.
