Study of Phase Transformations in Heat Treatment of HVOF Thermally Sprayed WC–17Co Coating

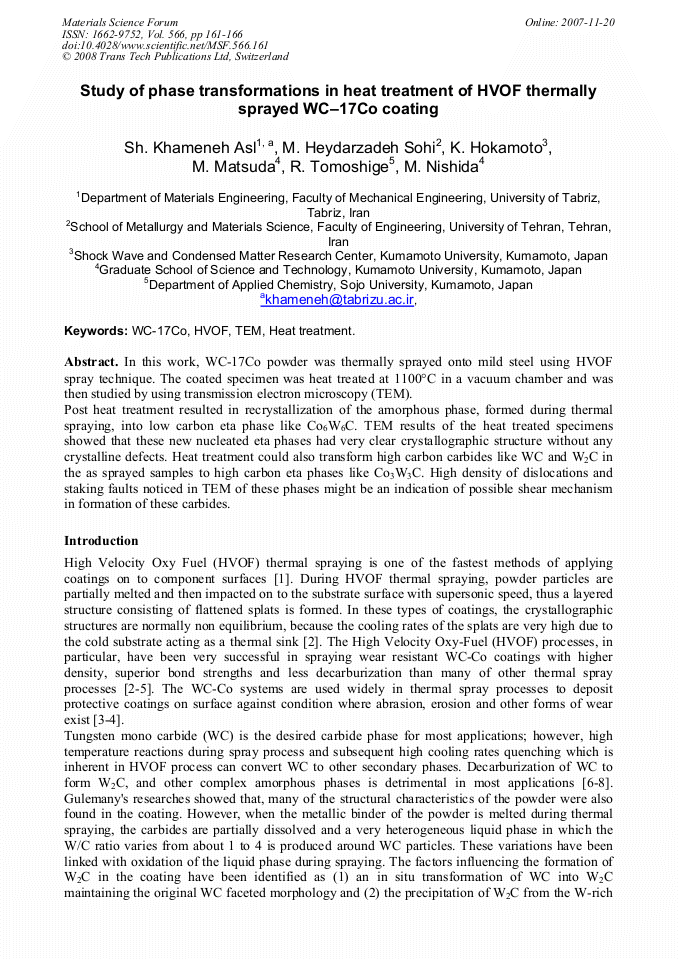

Article Preview

In this work, WC-17Co powder was thermally sprayed onto mild steel using HVOF spray technique. The coated specimen was heat treated at 1100°C in a vacuum chamber and was then studied by using transmission electron microscopy (TEM). Post heat treatment resulted in recrystallization of the amorphous phase, formed during thermal spraying, into low carbon eta phase like Co6W6C. TEM results of the heat treated specimens showed that these new nucleated eta phases had very clear crystallographic structure without any crystalline defects. Heat treatment could also transform high carbon carbides like WC and W2C in the as sprayed samples to high carbon eta phases like Co3W3C. High density of dislocations and staking faults noticed in TEM of these phases might be an indication of possible shear mechanism in formation of these carbides.



Edited by:

S. Itoh and K. Hokamoto




S. Khameneh Asl et al., "Study of Phase Transformations in Heat Treatment of HVOF Thermally Sprayed WC–17Co Coating", Materials Science Forum, Vol. 566, pp. 161-166, 2008

Online since:

November 2007




[1] V. V. Sobolev, J. M. Guilemany and J. Nutting: High Velocity Oxy-Fuel Spraying, (Woodhead Publishing Limited, Cambridge, England, 2004).

[2] Sh. Khameneh Asl: Study of the Effect of the Alloying Element and Heat Treatment on the Properties of Thermally Sprayed WC-M Coatings, (Ph.D. Thesis, University of Tehran, Iran, 2005).

[3] S. DePalo, M. Mohanty, H. Marc-Chartes and M. Dorfman, ITSC 2000, Montreal, Ed. C. C. Berndt, ASM Intl.

[4] R. J. K. Wood, B. G. Mellor and M. L. Binfield, Wear Vol. 211 (1997), pp.70-83.

[5] Q. Yang, T. Senda and A. Ohmorib, Wear Vol. 254 (2003), pp.23-34.

[6] H. Lia, K.A. Khora, L.G. Yua, P. Cheang, Surface & Coatings Technology Vol. 194(2005), pp.96-102.

[7] W. J. Lenling, M. F. Smith and J. A. Henfling, Proceeding of the Third National Thermal Spray Conference, Long Beach, CA, USA, (1990), pp.227-232.

[8] J. S. Babai: (Ph.D. Dissertation, School of Mechanical and Manufacturing Engineering in Dublin City University, 2003).

[9] J.M. Guilemany, J.M. de Paco, J. Nutting, and J.R. Miguel, Metallurgical and Materials Transactions A Vol. 30(1999), p.1913-(1921).

[10] C. Verdon, A. Karimi and J. L. Martin, Materials Science and Engineering, Vol. A246(1998), pp.11-24.

[11] J. E. Nerz, B. A. Kushner, Jr. and A. J. Rotolico, ASM International, Proceeding of the Fourth National Thermal Spray Conference, Pittsburgh, PA, USA, (1991), pp.115-120.

[12] L. Chen and W. Lengauer, International Journal of Refractory Metals and Hard Materials Vol. 18(2000), pp.307-322.

[13] Sh. Khameneh Asl, M. Heydarzadeh Sohi, S. M. M. Hadavi, Materials Science Forum, Vol. 465-466(2004), pp.427-466.


[14] Sh. Khameneh Asl, M. Heydarzadeh Sohi, Materials Science Forum, Vol. 465-466(2004), pp.301-306.


[15] Sh. Khameneh Asl, M. Heydarzadeh Sohi, K. Hokamoto, M. Uemura, Wear 260 (2006) 1203- 1208.


[16] C.J. Li, A. Ohmori, Y. Harada, Journal of Thermal Spray Technology, Vol. 5(1996), pp.69-73.
