On Micro Forming by Hydro Spark Forming Method

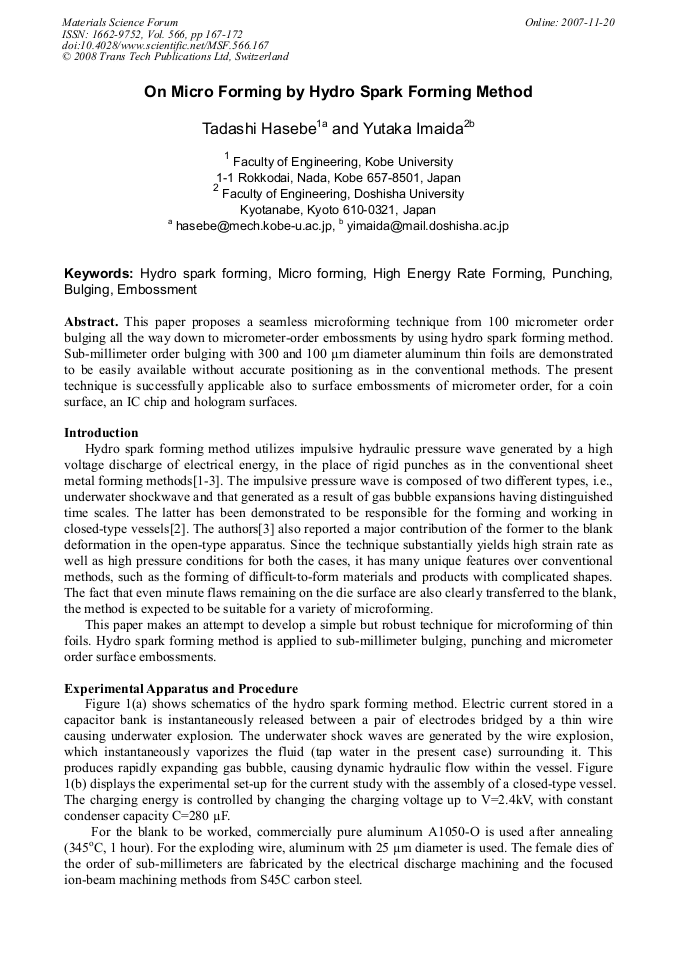

Article Preview

This paper proposes a seamless microforming technique from 100 micrometer order bulging all the way down to micrometer-order embossments by using hydro spark forming method. Sub-millimeter order bulging with 300 and 100 m diameter aluminum thin foils are demonstrated to be easily available without accurate positioning as in the conventional methods. The present technique is successfully applicable also to surface embossments of micrometer order, for a coin surface, an IC chip and hologram surfaces.



Edited by:

S. Itoh and K. Hokamoto




T. Hasebe and Y. Imaida, "On Micro Forming by Hydro Spark Forming Method", Materials Science Forum, Vol. 566, pp. 167-172, 2008

Online since:

November 2007




[1] T. Hasebe, Y. Imaida and M. Yokoi: Flat-Headed Cylindrical Deep Drawing of Aluminum Foil by Hydro Spark Forming Method, Dynamic Plasticity and Structural Behaviors (Proc. Plasticity'95), (1995), Gordon and Breach Publishers, p.991.

[2] T. Hasebe and Y. Imaida: High Strain Rate Deep Drawing by Hydro-Spark Forming Method, Proc. NUMISHEET '96, (1995), p.372.

[3] T. Hasebe, Y. Takenaga, H. Kakimoto and Y. Imaida: High Strain Rate Forming Using Underwater Shock Wave Focusing Technique, J. Maters. Process. Technol., Vol. 85 (1998), p.194.

DOI: https://doi.org/10.1016/s0924-0136(98)00291-x

[4] M. Murata, Y. Kamide, S. Masuda and H. Suzuki: Effect of Thickness on Punching of Pure Aluminum Sheet by 2148 Ultra-High Pressure Gas, Keikinzoku (J. Japan Inst. Light Metals) Vol. 44, No. 12, (1994) p.709.

[5] M. Mochihara, H. Fujita, K. Hokamoto and Y. Nakiyama: Consideration of the Fracture Mechanism of a Metal Plate during Shearing by an Impulsive Pressure, J. Japan Soc. Technol. Plasticity, Vol. 40, No. 459 (1999) p.333.
