Dynamic Response of a Steel Pipe to Internal Blast Loading

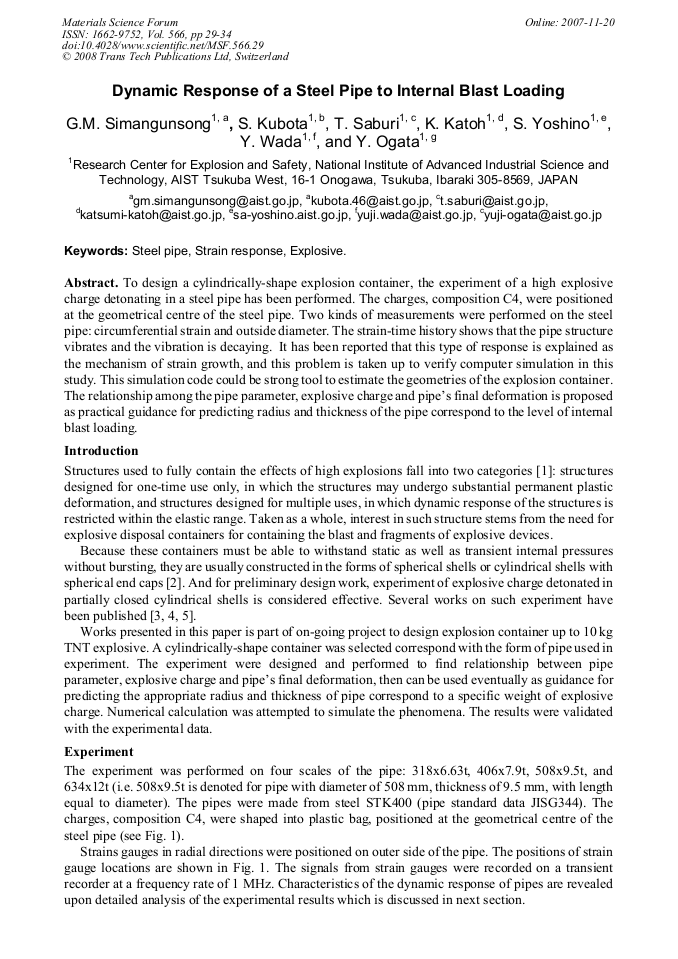

Article Preview

To design a cylindrically-shape explosion container, the experiment of a high explosive charge detonating in a steel pipe has been performed. The charges, composition C4, were positioned at the geometrical centre of the steel pipe. Two kinds of measurements were performed on the steel pipe: circumferential strain and outside diameter. The strain-time history shows that the pipe structure vibrates and the vibration is decaying. It has been reported that this type of response is explained as the mechanism of strain growth, and this problem is taken up to verify computer simulation in this study. This simulation code could be strong tool to estimate the geometries of the explosion container. The relationship among the pipe parameter, explosive charge and pipe’s final deformation is proposed as practical guidance for predicting radius and thickness of the pipe correspond to the level of internal blast loading.



Edited by:

S. Itoh and K. Hokamoto




G. M. Simangunsong et al., "Dynamic Response of a Steel Pipe to Internal Blast Loading", Materials Science Forum, Vol. 566, pp. 29-34, 2008

Online since:

November 2007




[1] Duffey TA, Romero C: Strain growth in spherical explosive chambers subjected to internal blast loading, Int J Impact Eng, Vol. 28 (2003) pp.961-983.

DOI: 10.1016/s0734-743x(02)00169-0

[2] Ko WL, Pennick HG, Baker WE: Elasto-plastic response of a multi-layered spherical vessel to internal blast loading, Int J Solids Structures, Vol. 13 (1977) pp.503-514.

DOI: 10.1016/0020-7683(77)90024-5

[3] Duffey T, Mitcheli D: Containment of explosions in cylindrical shells, Int J Mech Sci, Vol. 15 (1973) pp.237-249.

[4] Whenhui Z, Honglu X, Guangquan Z, Schleyer GK: Dynamic response of cylindrical explosive chambers to internal blast loading produced by a concentrated charge, Int J Impact eng, Vol. 19 (1997) pp.931-845.

DOI: 10.1016/s0734-743x(97)00022-5

[5] Manfred H: Blast effects of high explosive charges detonating in cylindrical steel tubes, Propellants, Explosives, Pyrotechnic Vol. 25 (2000) pp.307-311.

DOI: 10.1002/1521-4087(200012)25:6<307::aid-prep307>3.0.co;2-c

[6] Young WC, Budynas RG: Roark's formulas for stress and strain, McGraw-Hill (2002).
