Estimation of the Crack Propagation Direction of a Crack Touching the Interface between Two Elastic Materials

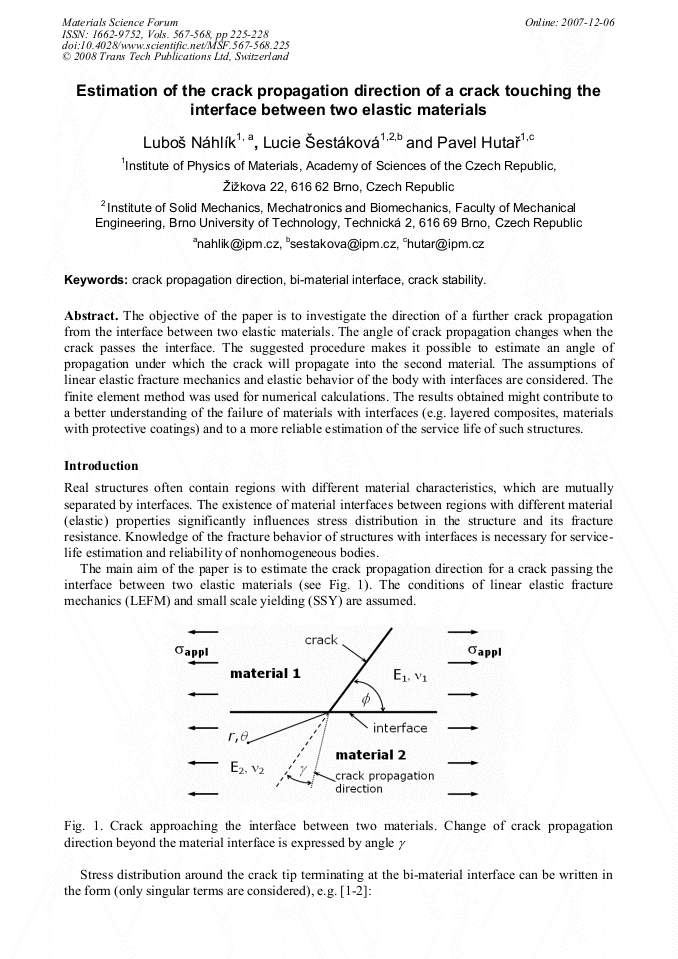

Article Preview

The objective of the paper is to investigate the direction of a further crack propagation from the interface between two elastic materials. The angle of crack propagation changes when the crack passes the interface. The suggested procedure makes it possible to estimate an angle of propagation under which the crack will propagate into the second material. The assumptions of linear elastic fracture mechanics and elastic behavior of the body with interfaces are considered. The finite element method was used for numerical calculations. The results obtained might contribute to a better understanding of the failure of materials with interfaces (e.g. layered composites, materials with protective coatings) and to a more reliable estimation of the service life of such structures.



Materials Science Forum (Volumes 567-568)

Edited by:

Pavel Šandera




L. Náhlík et al., "Estimation of the Crack Propagation Direction of a Crack Touching the Interface between Two Elastic Materials", Materials Science Forum, Vols. 567-568, pp. 225-228, 2008

Online since:

December 2007




[1] S.A. Meguid, M. Tan and Z.H. Zhu: Int. Journal of Fracture 73 (1995), pp.1-23.

[2] D.N. Fenner: International Journal of Fracture 12 (1976), pp.705-721.

[3] G.C. Sih: A special theory of crack propagation, in Mechanics of Fracture, (Noordhoff Intern. Publishing, Leyden 1977).

[4] G.C. Sih: Mechanics of fracture I. Methods of analysis and solutions of crack problems (Noordhoff International Publishing, Leyden, 1973).

[5] G.C. Sih and J.W. Ho: Theoretical and Applied Fracture Mechanics 16 (1991), pp.179-214.

[6] L. Náhlík and Z. Knésl: In proceedings of Materials Structure and Micromechanics of Fracture 3 (MSMF-3, Brno 2001).

[7] L. Náhlík: PhD thesis Brno University of Technology and Institute of Physics of Materials AS CR, (2002).
