Development of High Strength Alloys in the Mg-Ni-Y-RE System


Article Preview

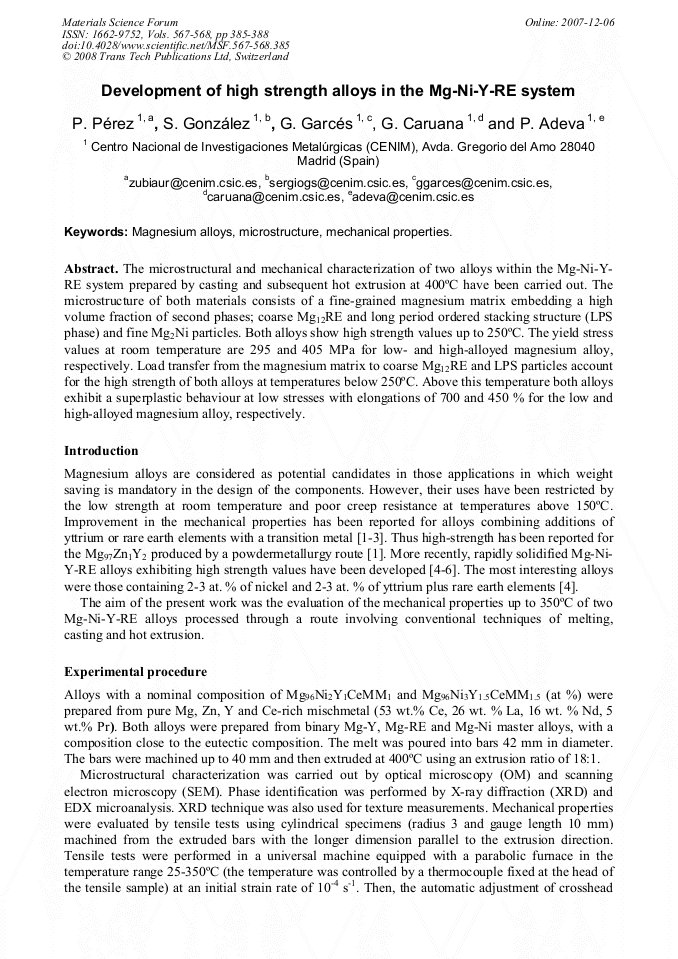

The microstructural and mechanical characterization of two alloys within the Mg-Ni-YRE system prepared by casting and subsequent hot extrusion at 400°C have been carried out. The microstructure of both materials consists of a fine-grained magnesium matrix embedding a high volume fraction of second phases; coarse Mg12RE and long period ordered stacking structure (LPS phase) and fine Mg2Ni particles. Both alloys show high strength values up to 250°C. The yield stress values at room temperature are 295 and 405 MPa for low- and high-alloyed magnesium alloy, respectively. Load transfer from the magnesium matrix to coarse Mg12RE and LPS particles account for the high strength of both alloys at temperatures below 250°C. Above this temperature both alloys exhibit a superplastic behaviour at low stresses with elongations of 700 and 450 % for the low and high-alloyed magnesium alloy, respectively.



Materials Science Forum (Volumes 567-568)

Edited by:

Pavel Šandera




P. Pérez et al., "Development of High Strength Alloys in the Mg-Ni-Y-RE System", Materials Science Forum, Vols. 567-568, pp. 385-388, 2008

Online since:

December 2007




[1] Y. Kawamura, K. Hayashi, A. Inoue, T. Masumoto, Mater. Trans. 42 (2001) 1172-1176.

[2] M. Yamasaki, T. Anan, S. Yoshimoto, Y. Kawamura, Scripta Mater. 53(2005) 709-803.

[3] G. Garcés, M. Maeso, I. Todd, P. Pérez, P. Adeva, J. Alloy Compd. 432 (2007) L10-L14.

[4] S. González, P. Pérez, G. Garces, P. Adeva, Mater. Sci. Forum 539-543 (2007) 1662-1668.

[5] G. Garcés, P. Pérez, S. González, P. Adeva, Int. J. Mater Res. (formerly Z Metallkd) 97 (2006) 404-408.

[6] P. Pérez, S. González, G. Garcés, Intermetallics 15 (2007).
