Investigation of Cu/Al Metal Laminates Prepared by Plasma Activated Sintering (PAS)

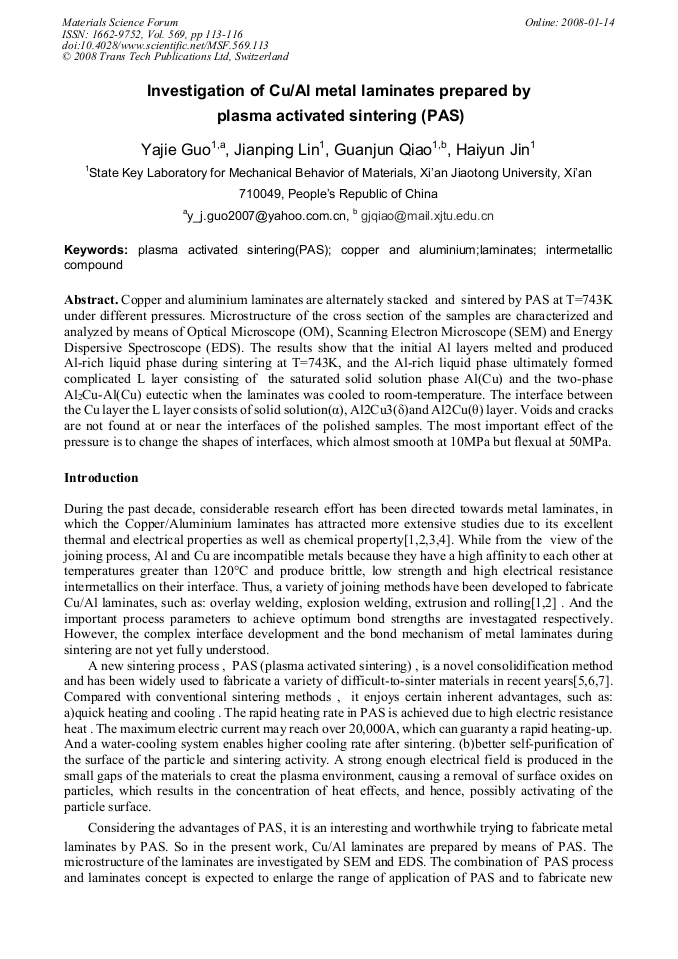

Article Preview

Copper and aluminium laminates are alternately stacked and sintered by PAS at T=743K under different pressures. Microstructure of the cross section of the samples are characterized and analyzed by means of Optical Microscope (OM), Scanning Electron Microscope (SEM) and Energy Dispersive Spectroscope (EDS). The results show that the initial Al layers melted and produced Al-rich liquid phase during sintering at T=743K, and the Al-rich liquid phase ultimately formed complicated L layer consisting of the saturated solid solution phase Al(Cu) and the two-phase Al2Cu-Al(Cu) eutectic when the laminates was cooled to room-temperature. The interface between the Cu layer the L layer consists of solid solution(α), Al2Cu3(δ)and Al2Cu(θ) layer. Voids and cracks are not found at or near the interfaces of the polished samples. The most important effect of the pressure is to change the shapes of interfaces, which almost smooth at 10MPa but flexual at 50MPa.



Edited by:

Byungsei Jun, Hyungsun Kim, Chanwon Lee, Soo Wohn Lee




Y. J. Guo et al., "Investigation of Cu/Al Metal Laminates Prepared by Plasma Activated Sintering (PAS) ", Materials Science Forum, Vol. 569, pp. 113-116, 2008

Online since:

January 2008




[1] X.K. PENG, R. WUHRER, G. HENESS and W.Y. YEUNG: J. Mater. Sci. Vol. 34 (1999), p. (2029).

[2] M. Abbasi, A. Karimi Taher and M.T. Salehi: J. Alloys. Compd. Vol. 319 (2001), p.233.

[3] Gulenc B: submitted to J. Mater. Design(2007).

[4] J.E. Lee, D.H. Bae, W.S. Chung, K.H. Kim, J.H. Lee and Y.R. Cho: J. Mater. Proc. Technol. Vol. 187-188 (2007), p.546.

[5] K. Yamazaki, S.H. Risbud, H. Aoyama and K. Shoda: J. Mater. Proc. Technol. Vol. 56 (1996), p.955.

[6] Y. Jung, J. Shin, C. Ha, Y. Shin, I. Choi, C. Park and U. Paik: Mater. Lett. Vol. 56 (2002), p.1093.

[7] Y. Jung, C. Ha, J. Shin, S. Hur and U. Paik: Mater. Sci. Eng. A Vol. 323 (2002), p.110.

[8] Y. Tanaka, M. Kajihara and Y. Watanabe: Mater. Sci. Eng. A Vol. 445-446 (2007), p.355.

[9] Ö. Yazar, T. Ediz and T. Öztürk: Acta. Mater. Vol. 53 (2005), p.375.
