Oxidation Behavior and Cutting Performance between Ti0.75-Al0.25-N and Ti0.69-Al0.23-Si0.08-N Coated Tool through Measurement of Cutting Temperature

Abstract:

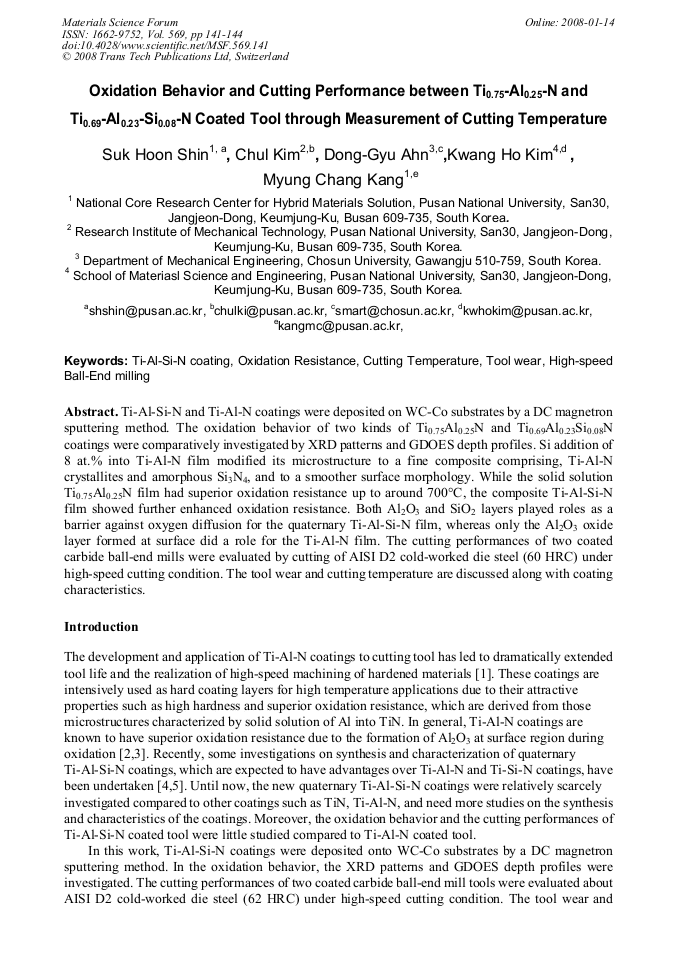

Article Preview

Ti-Al-Si-N and Ti-Al-N coatings were deposited on WC-Co substrates by a DC magnetron sputtering method. The oxidation behavior of two kinds of Ti0.75Al0.25N and Ti0.69Al0.23Si0.08N coatings were comparatively investigated by XRD patterns and GDOES depth profiles. Si addition of 8 at.% into Ti-Al-N film modified its microstructure to a fine composite comprising, Ti-Al-N crystallites and amorphous Si3N4, and to a smoother surface morphology. While the solid solution Ti0.75Al0.25N film had superior oxidation resistance up to around 700°C, the composite Ti-Al-Si-N film showed further enhanced oxidation resistance. Both Al2O3 and SiO2 layers played roles as a barrier against oxygen diffusion for the quaternary Ti-Al-Si-N film, whereas only the Al2O3 oxide layer formed at surface did a role for the Ti-Al-N film. The cutting performances of two coated carbide ball-end mills were evaluated by cutting of AISI D2 cold-worked die steel (60 HRC) under high-speed cutting condition. The tool wear and cutting temperature are discussed along with coating characteristics.

Info:

Periodical:

Edited by:

Byungsei Jun, Hyungsun Kim, Chanwon Lee, Soo Wohn Lee

Pages:

141-144

Citation:

S. H. Shin et al., "Oxidation Behavior and Cutting Performance between Ti0.75-Al0.25-N and Ti0.69-Al0.23-Si0.08-N Coated Tool through Measurement of Cutting Temperature", Materials Science Forum, Vol. 569, pp. 141-144, 2008

Online since:

January 2008

Export:

Price:

$38.00

[1] M.C. Kang, I.W. Park, K.H. Kim: Surf. Coat. Technol Vol. 163-164 (2003), p.734.

[2] H.A. Jehn, S. Hofmann, W.D. Münz: Thin Solid Films Vol. 153 (1987), p.45.

[3] D. McIntyre, J.E. Greene, G. Håkansson, J. -E. Sundgren, W. -D. Münz: J. Appl. Phys Vol. 67 (3) (1990), p.1542.

[4] S. Carvalho, L. Rebouta, A. Cavaleiro, L.A. Rocha, J. Gomes, E. Alves: Thin Solid Films Vol. 398-399 (2001), p.391.

DOI: https://doi.org/10.1016/s0040-6090(01)01348-7

[5] I. -W. Park, S.R. Choi, M. -H. Lee, K.H. Kim: J. Vac. Sci. Technol Vol. A 21(4) (2003), p.895.

[6] G. E. D'Errico, E. Guglielmi, G. Rutelli: J. Mater. Process. Technol Vol. 92-93 (1999), p.251.

[7] J.H. Hsieh, A.L.K. Tan, X.T. Zeng: Surf. Coat. Technol Vol. 201 (2006), pp.4094-4098.
