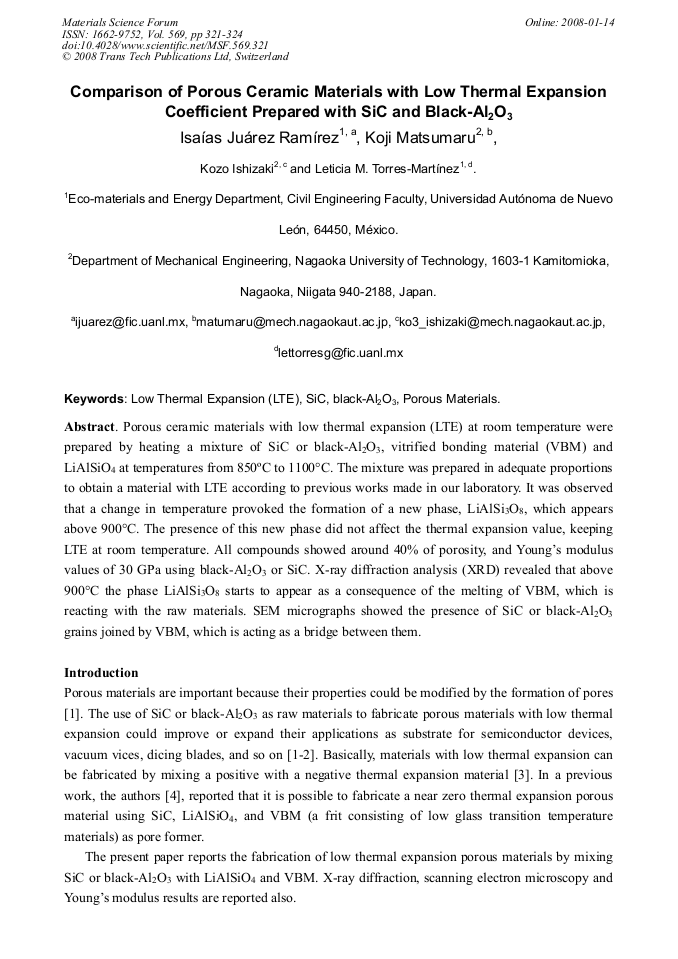

Comparison of Porous Ceramic Materials with Low Thermal Expansion Coefficient Prepared with SiC and Black-Al2O3


Article Preview

Porous ceramic materials with low thermal expansion (LTE) at room temperature were prepared by heating a mixture of SiC or black-Al2O3, vitrified bonding material (VBM) and LiAlSiO4 at temperatures from 850°C to 1100°C. The mixture was prepared in adequate proportions to obtain a material with LTE according to previous works made in our laboratory. It was observed that a change in temperature provoked the formation of a new phase, LiAlSi3O8, which appears above 900°C. The presence of this new phase did not affect the thermal expansion value, keeping LTE at room temperature. All compounds showed around 40% of porosity, and Young’s modulus values of 30 GPa using black-Al2O3 or SiC. X-ray diffraction analysis (XRD) revealed that above 900°C the phase LiAlSi3O8 starts to appear as a consequence of the melting of VBM, which is reacting with the raw materials. SEM micrographs showed the presence of SiC or black-Al2O3 grains joined by VBM, which is acting as a bridge between them.



Edited by:

Byungsei Jun, Hyungsun Kim, Chanwon Lee, Soo Wohn Lee




I. Juárez-Ramírez et al., "Comparison of Porous Ceramic Materials with Low Thermal Expansion Coefficient Prepared with SiC and Black-Al2O3", Materials Science Forum, Vol. 569, pp. 321-324, 2008

Online since:

January 2008




[1] K. Ishizaki, S. Komarneni and M. Nanko in: Porous Materials. Process Technology and Applications, edited by Kluwer Academic Publishers. The Netherlands (1998).

[2] K. Ishizaki: Ceramics Japan, Vol. 41 (2006), p.529.

[3] R. Roy, D. K. Agrawal and H. A. McKinstry in: Ann. Rev. Mater. Sci. 19 (1989), p.59.

[4] I. Juarez-Ramirez, K. Matsumaru and K. Ishizaki: Journal of the Ceramic Society of Japan 114 (2006), p.1111.

[5] S. Okada in: Development and Applications of Porous Ceramics, CMC, Tokyo (1991), p.118.
